Главная Каталог продукции СЗЦПК инструмент 11 309-01 - Tool holder for longitudinal and transversal turning 72382012

72382012

Артикул: 72382012

В наличии

В корзину

Описание

Характеристики

CEATC Tool cutting edge angle type code

S - Side lead angle

CEDC Cutting edge count

COMPC Company code

CE - Ceratizit

DIN

VKT12120105

FamilyProducts

TRI CLAMP KLEMMHALTER AUSSEN

HAND Cutting direction

L - Left

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

ISYC Subclass

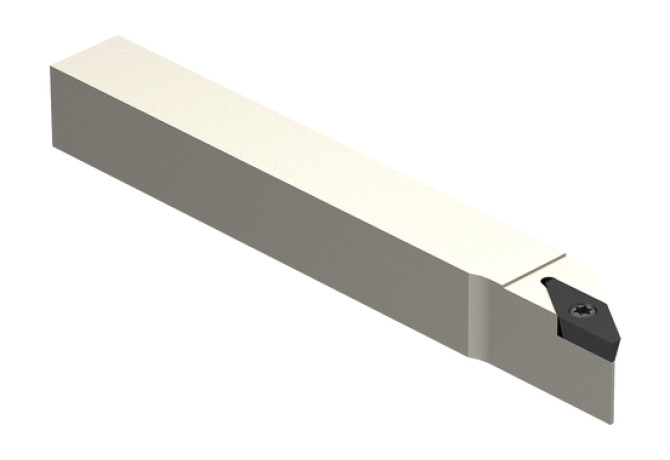

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

90 Degree

LOC-03 B Shank width

12 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

1212

LOC-03 H Shank height

12 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT12120105

Name Identifying order number

72382012

OAL Overall length

100 mm

STDDES Standard designation

SVAPL1212H10

SX Shank cross section shape code

01 - Square shank

WF Functional width

12 mm

Working process

DDA - External turning
