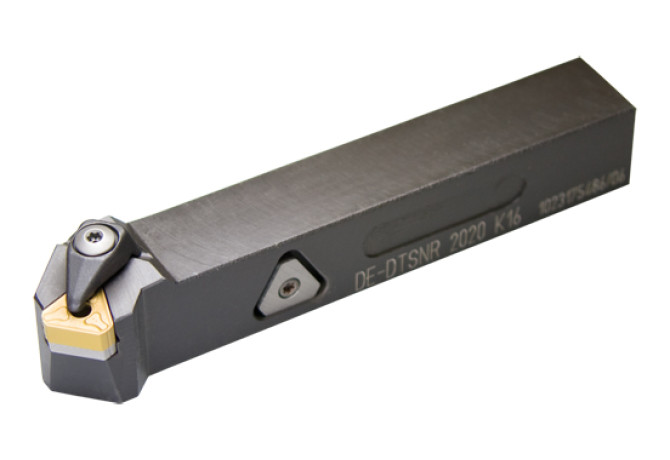

Главная Каталог продукции СЗЦПК инструмент 11 309-01 - Tool holder for longitudinal and transversal turning 70527832

70527832

Артикул: 70527832

В наличии

В корзину

Описание

Характеристики

CEATC Tool cutting edge angle type code

S - Side lead angle

CEDC Cutting edge count

COMPC Company code

CE - Ceratizit

DIN

VKT32250105

FamilyProducts

XPRESS CLAMP KLEMMHALTER AUSSEN

HAND Cutting direction

L - Left

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

45 Degree

LH Head length

40 mm

LOC-03 B Shank width

25 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

3225

LOC-03 H Shank height

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT32250105

Name Identifying order number

70527832

OAL Overall length

170 mm

STDDES Standard designation

DTSNL3225P27

SX Shank cross section shape code

01 - Square shank

WF Functional width

22.2 mm

WFA A dimension on wf

9.8 mm

Working process

DDA - External turning
