Главная Каталог продукции Toolunited 11 309-01 - Tool holder for longitudinal and transversal turning 70506625

70506625

Артикул: 70506625

В наличии

В корзину

Описание

Характеристики

CEATC Tool cutting edge angle type code

S - Side lead angle

CEDC Cutting edge count

COMPC Company code

CE - Ceratizit

Delivery state valid from

10/1/2021

DIN

VKT25250105

FamilyProducts

MAXILOCK D KLEMMHALTER AUSSEN

HAND Cutting direction

N - Neutral

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

72.5 Degree

LH Head length

43 mm

LOC-03 B Shank width

25 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

2525

LOC-03 H Shank height

25 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT25250105

Name Identifying order number

70506625

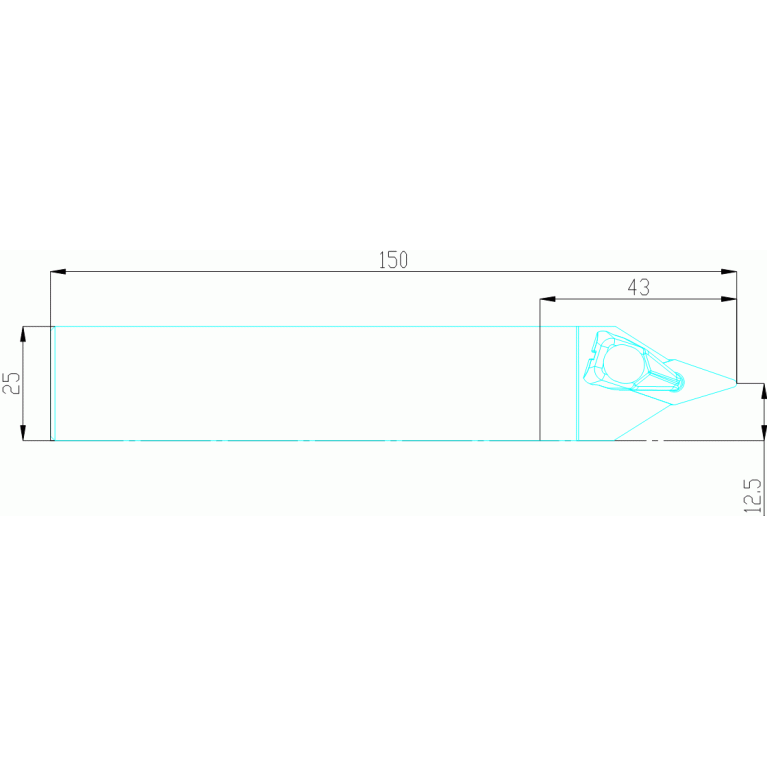

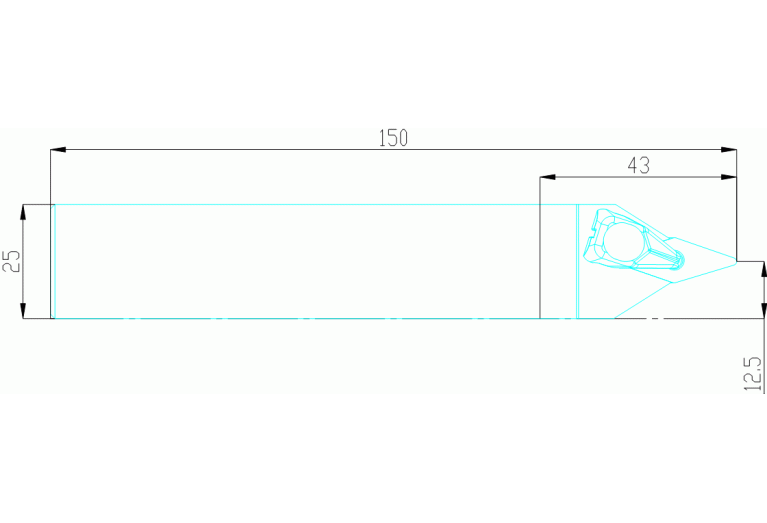

OAL Overall length

150 mm

STDDES Standard designation

DVVNN2525M16

SX Shank cross section shape code

01 - Square shank

WF Functional width

12.5 mm

Working process

DDA - External turning
