70277750

Артикул: 70277750

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CBMD Chip breaker manufacturers designation

-SF

CECC Cutting edge condition code

E - Rounded

COATN Coating

TCC410

COMPC Company code

CE - Ceratizit

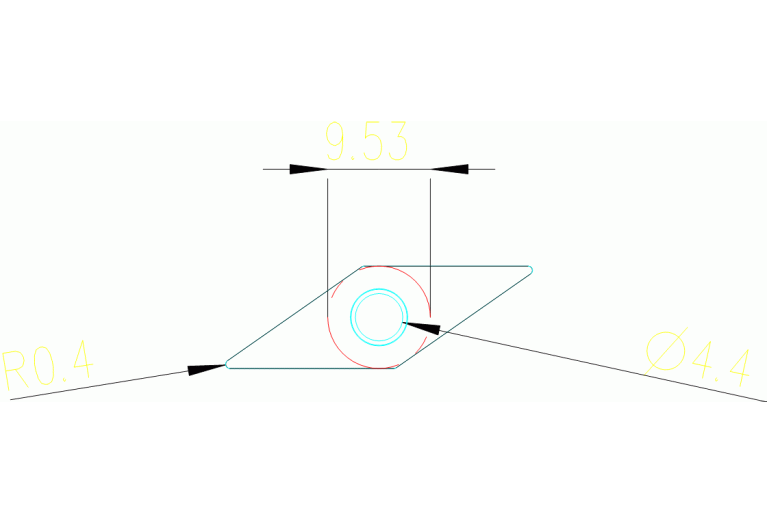

D1 Fixing hole diameter

4.4 mm

EPSR Insert included angle

35 Degree

FamilyProducts

CERMET-DREHWENDEPLATTE

GRDPRIO Standard designation of the grade main application

HT-P10

IC Inscribed circle diameter

9.52 mm

IH Insert hand

N - Neutral

Interface codes

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

16.6 mm

Name Identifying order number

70277750

RE Corner radius

0.4 mm

S Insert thickness

4.76 mm

TCINS Tolerance class insert

Working process

No working processes available
