Главная Каталог продукции Toolunited 11 201-03 - Rhombic insert 70260608

70260608

Артикул: 70260608

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CBMD Chip breaker manufacturers designation

-27

CECC Cutting edge condition code

F - Sharpedged

COATN Coating

H10T

COMPC Company code

CE - Ceratizit

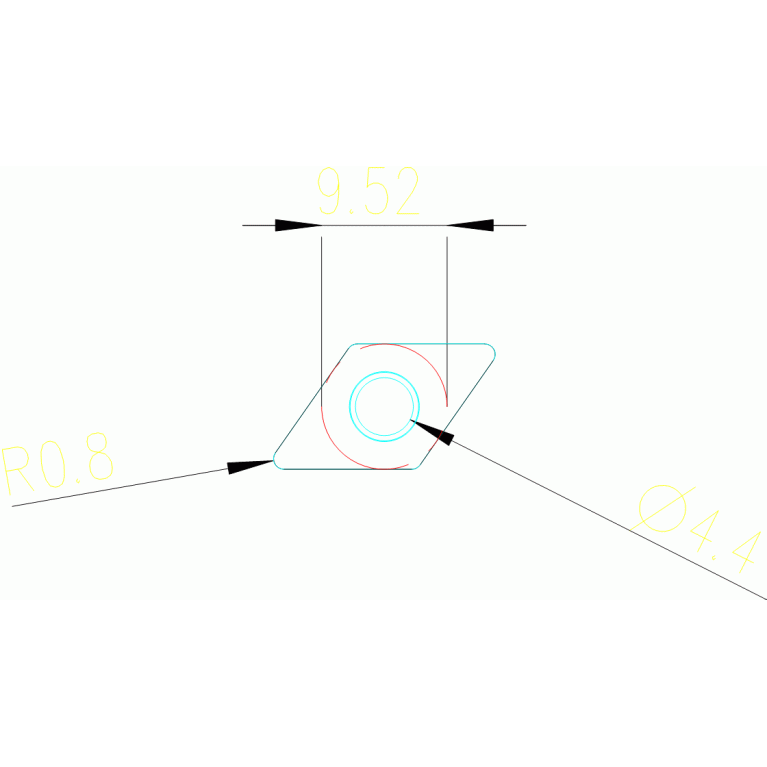

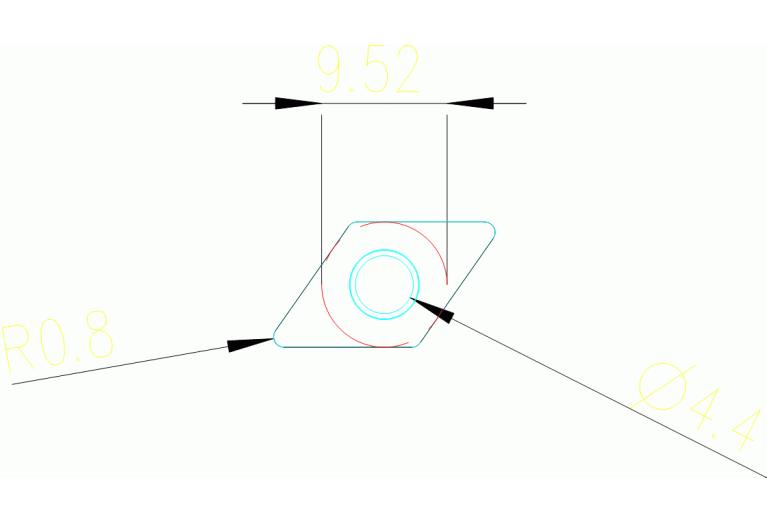

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

10/1/2021

EPSR Insert included angle

55 Degree

FamilyProducts

HM-DREHWENDEPLATTE

GRDPRIO Standard designation of the grade main application

HW-N15

IC Inscribed circle diameter

9.52 mm

IH Insert hand

N - Neutral

Interface codes

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

11.6 mm

Name Identifying order number

70260608

RE Corner radius

0.8 mm

S Insert thickness

3.97 mm

TCINS Tolerance class insert

Working process

No working processes available
