70254608
70254608
Артикул:
70254608
В наличии
Характеристики
AN Clearance angle major
7 Degree
CBMD Chip breaker manufacturers designation
-27
CECC Cutting edge condition code
F - Sharpedged
COATN Coating
H10T
COMPC Company code
CE - Ceratizit
D1 Fixing hole diameter
4.4 mm
Delivery state valid from
10/1/2021
EPSR Insert included angle
80 Degree
FamilyProducts
HM-DREHWENDEPLATTE
GRDPRIO Standard designation of the grade main application
HW-N15

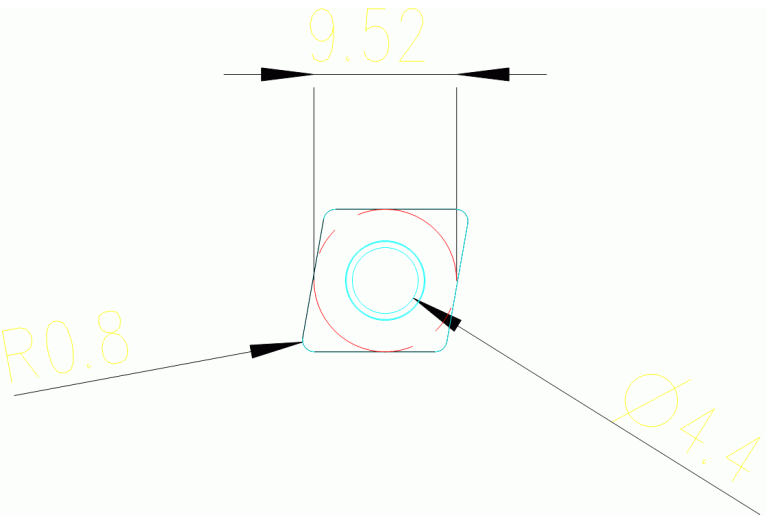

IC Inscribed circle diameter
9.52 mm
IH Insert hand
N - Neutral
Interface codes
/
ISISO ISO property
1
ISYC Subclass
201-03 - Rhombic insert
L Cutting edge length
9.7 mm
Name Identifying order number
70254608
RE Corner radius
0.8 mm
S Insert thickness
3.97 mm
TCINS Tolerance class insert
G
Working process
No working processes available
