Главная Каталог продукции Toolunited 11 201-03 - Rhombic insert 70249900

70249900

Артикул: 70249900

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CBMD Chip breaker manufacturers designation

-SMF

CECC Cutting edge condition code

E - Rounded

COATN Coating

TCM10

COMPC Company code

CE - Ceratizit

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

10/1/2021

EPSR Insert included angle

80 Degree

FamilyProducts

CERMET-DREHWENDEPLATTE

GRDPRIO Standard designation of the grade main application

HT-P15

IC Inscribed circle diameter

6.35 mm

IH Insert hand

N - Neutral

Interface codes

ISISO ISO property

ISYC Subclass

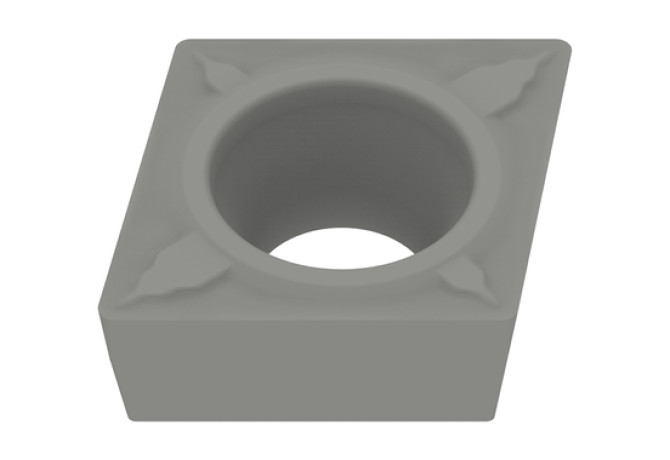

201-03 - Rhombic insert

L Cutting edge length

6.4 mm

Name Identifying order number

70249900

RE Corner radius

0.4 mm

S Insert thickness

2.38 mm

TCINS Tolerance class insert

Working process

No working processes available
