70186400
70186400
Артикул:
70186400
В наличии
Характеристики
AN Clearance angle major
7 Degree
CBMD Chip breaker manufacturers designation
-F43
CECC Cutting edge condition code
E - Rounded
COATN Coating
CTC2135
COMPC Company code
CE - Ceratizit
D1 Fixing hole diameter
2.8 mm
Delivery state valid from
10/1/2021
EPSR Insert included angle
55 Degree
FamilyProducts
HM-DREHWENDEPLATTE
GRD2ND Standard designation of the grade 2nd application
HC-S20
GRDPRIO Standard designation of the grade main application
HC-M30

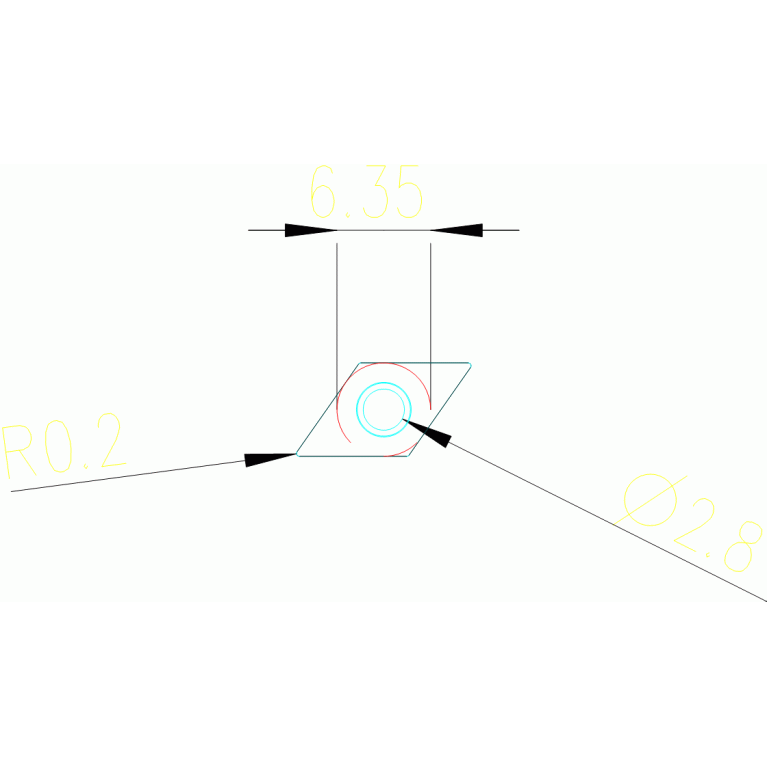

IC Inscribed circle diameter
6.35 mm
IH Insert hand
N - Neutral
Interface codes
/
ISISO ISO property
1
ISYC Subclass
201-03 - Rhombic insert
L Cutting edge length
7.75 mm
Name Identifying order number
70186400
RE Corner radius
0.2 mm
S Insert thickness
2.38 mm
TCINS Tolerance class insert
M
Working process
No working processes available
