Главная Каталог продукции Toolunited 11 201-03 - Rhombic insert 70158608

70158608

Артикул: 70158608

В наличии

В корзину

Описание

Характеристики

CBMD Chip breaker manufacturers designation

-M42

CECC Cutting edge condition code

E - Rounded

COATN Coating

CTP2120

COMPC Company code

CE - Ceratizit

D1 Fixing hole diameter

5.16 mm

EPSR Insert included angle

55 Degree

FamilyProducts

HM-DREHWENDEPLATTE

GRD2ND Standard designation of the grade 2nd application

HC-S20

GRDPRIO Standard designation of the grade main application

HC-M20

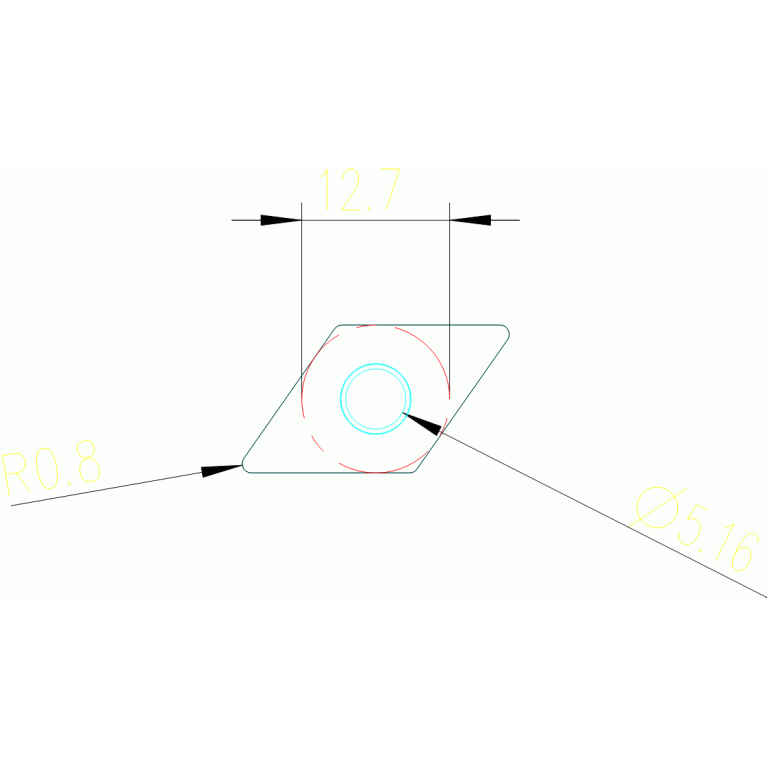

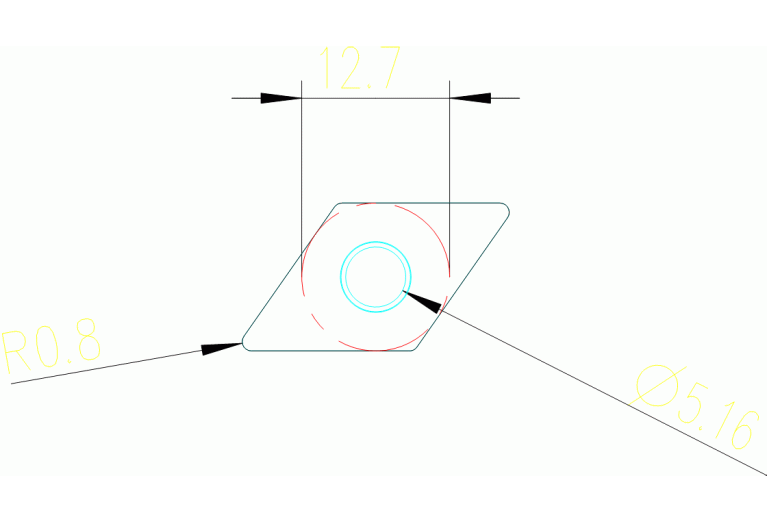

IC Inscribed circle diameter

12.7 mm

IH Insert hand

N - Neutral

Interface codes

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

15.5 mm

Name Identifying order number

70158608

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

TCINS Tolerance class insert

Working process

No working processes available
