70155754
70155754
Артикул:
70155754
В наличии
Характеристики
CBMD Chip breaker manufacturers designation
-CF
CECC Cutting edge condition code
E - Rounded
COATN Coating
TCC410
COMPC Company code
CE - Ceratizit

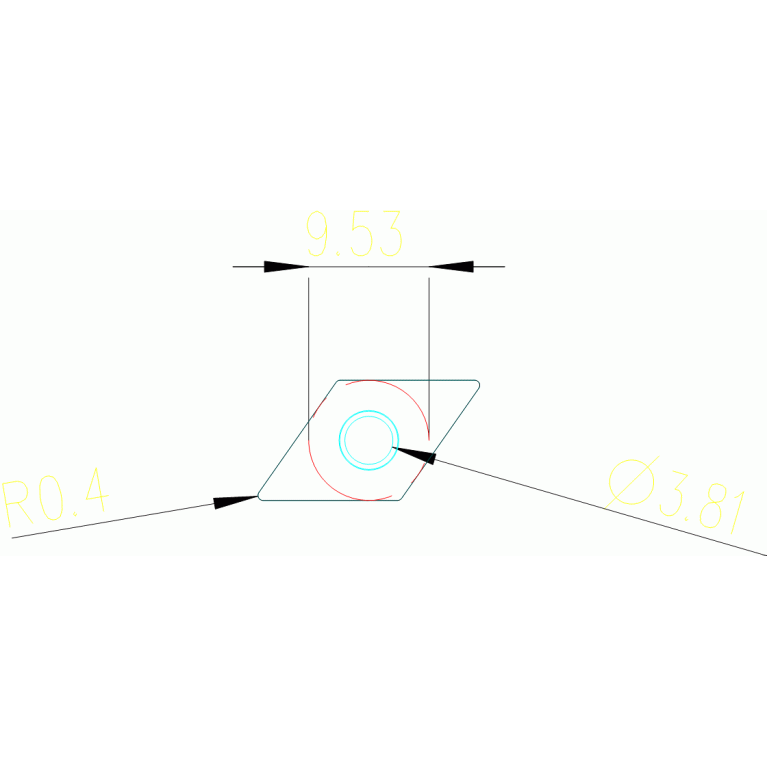

D1 Fixing hole diameter
3.81 mm
EPSR Insert included angle
55 Degree
FamilyProducts
CERMET-DREHWENDEPLATTE
GRDPRIO Standard designation of the grade main application
HT-P10
IC Inscribed circle diameter
9.52 mm
IH Insert hand
N - Neutral
Interface codes
/
ISISO ISO property
1
ISYC Subclass
201-03 - Rhombic insert
L Cutting edge length
11.6 mm
Name Identifying order number
70155754
RE Corner radius
0.4 mm
S Insert thickness
4.76 mm
TCINS Tolerance class insert
M
Working process
No working processes available
