70100542
70100542
Артикул:
70100542
В наличии
Характеристики
CECC Cutting edge condition code
E - Rounded
COATN Coating
CTCK120
COMPC Company code
CE - Ceratizit
D1 Fixing hole diameter
6.35 mm
Delivery state valid from
10/1/2021
EPSR Insert included angle
80 Degree
FamilyProducts
HM-DREHWENDEPLATTE
GRDPRIO Standard designation of the grade main application
HC-K20

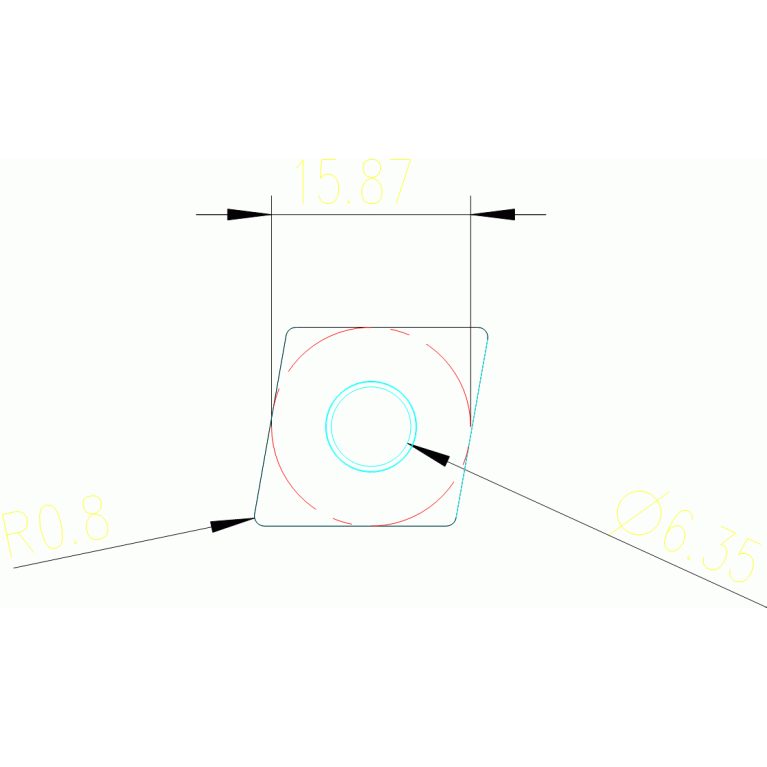

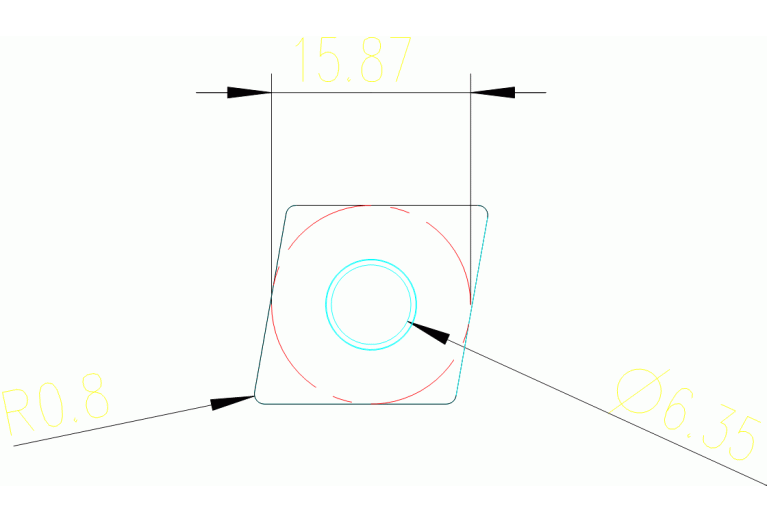

IC Inscribed circle diameter
15.87 mm
IH Insert hand
N - Neutral
Interface codes
/
ISISO ISO property
1
ISYC Subclass
201-03 - Rhombic insert
L Cutting edge length
16.1 mm
Name Identifying order number
70100542
RE Corner radius
0.8 mm
S Insert thickness
6.35 mm
TCINS Tolerance class insert
M
Working process
No working processes available
