70100532
70100532
Артикул:
70100532
В наличии
Характеристики
CECC Cutting edge condition code
E - Rounded
COATN Coating
CTCK120
COMPC Company code
CE - Ceratizit

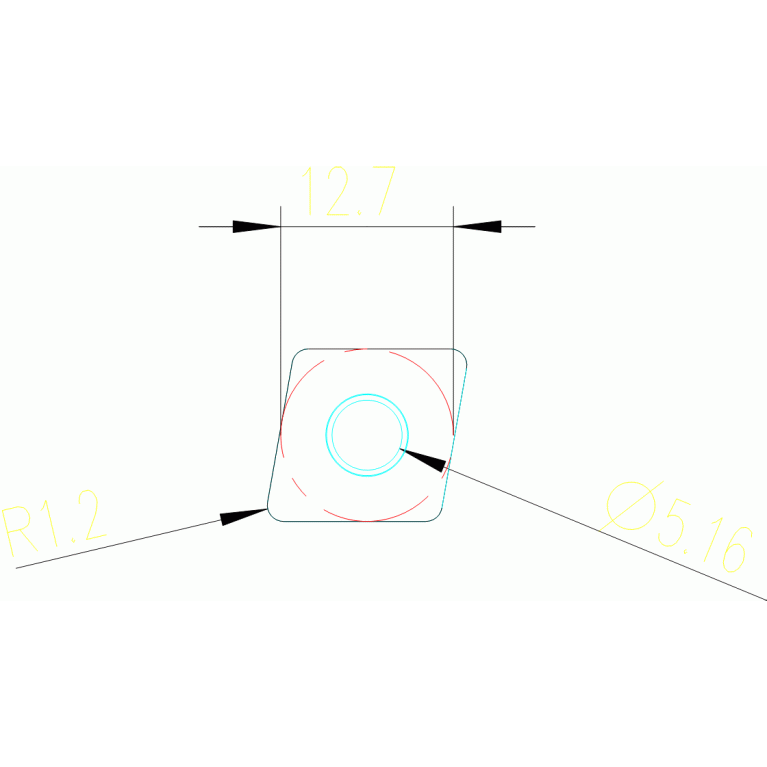

D1 Fixing hole diameter
5.16 mm
Delivery state valid from
10/1/2021
EPSR Insert included angle
80 Degree
FamilyProducts
HM-DREHWENDEPLATTE
GRDPRIO Standard designation of the grade main application
HC-K20
IC Inscribed circle diameter
12.7 mm
IH Insert hand
N - Neutral
Interface codes
/
ISISO ISO property
1
ISYC Subclass

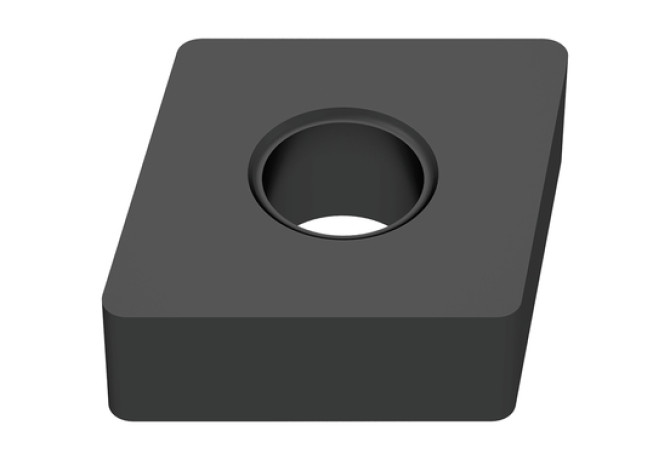

201-03 - Rhombic insert
L Cutting edge length
12.9 mm
Name Identifying order number
70100532
RE Corner radius
1.2 mm
S Insert thickness
4.76 mm
TCINS Tolerance class insert
M
Working process
No working processes available
