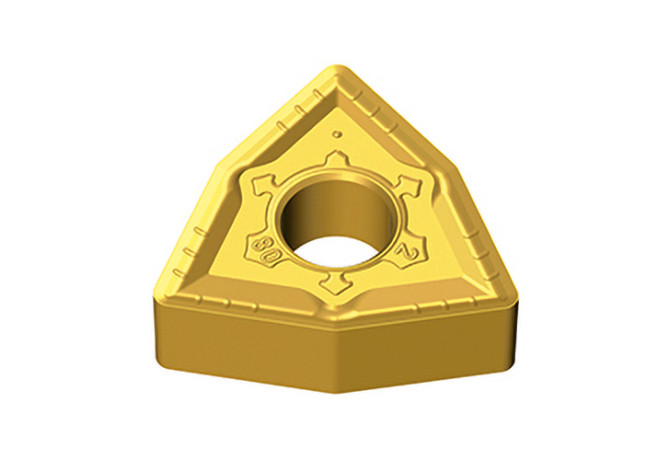

WNMG 080408 MGS TT3010

Артикул: 6309112

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

AlTiN/TiN

COMPC Company code

IL - Ingersoll

Delivery state

LL - Stock limited

DIN

WN0804082N

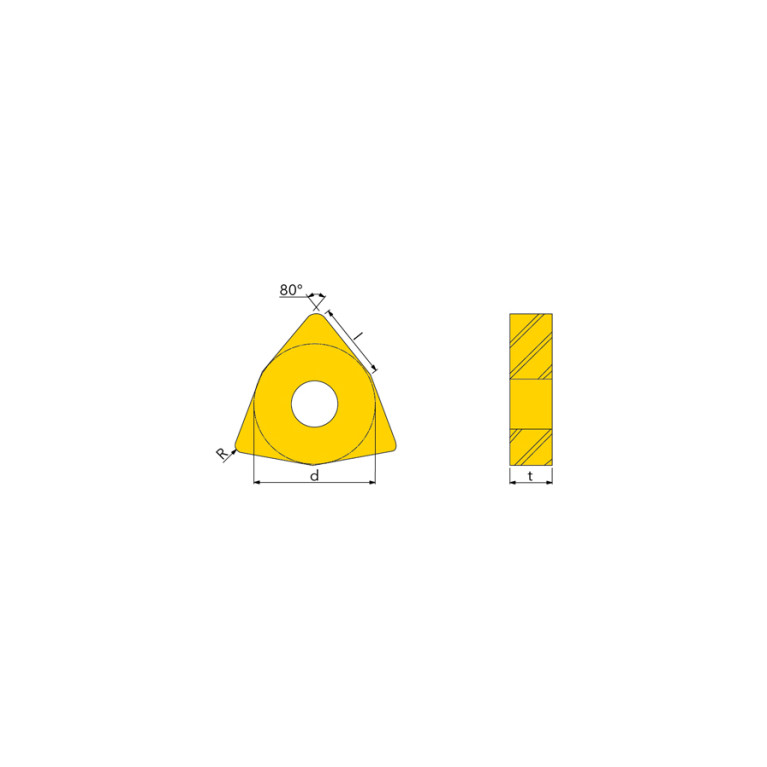

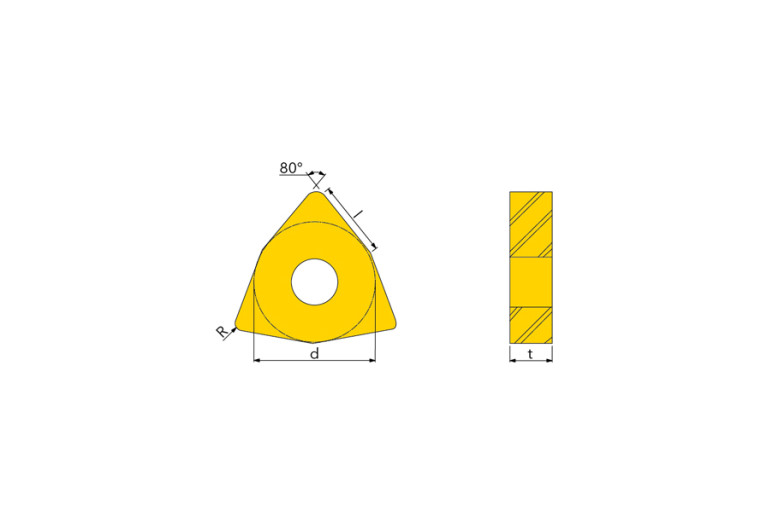

EPSR Insert included angle

80 Degree

FamilyProducts

insert, Chipbreaker, negative 80° trigon inserts for light and medium machining

GRD2ND Standard designation of the grade 2nd application

M05-M25

GRD3RD Standard designation of the grade 3rd application

S05-S25

GRDMFG Grade manufacturers designation

TT3010

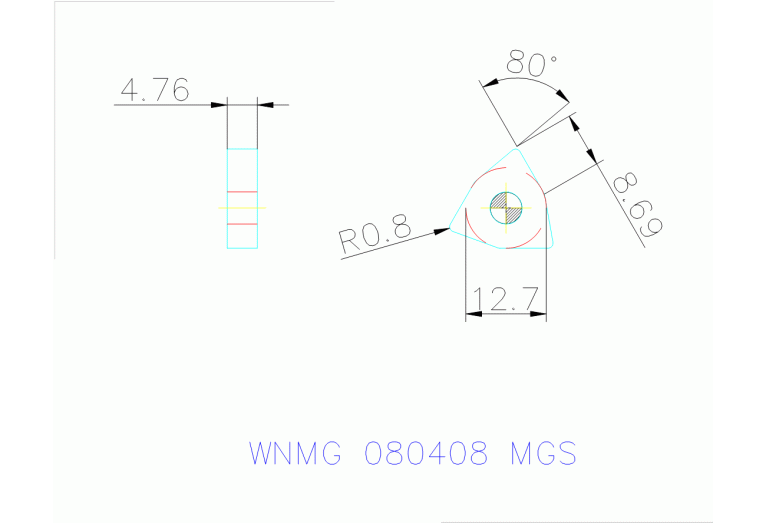

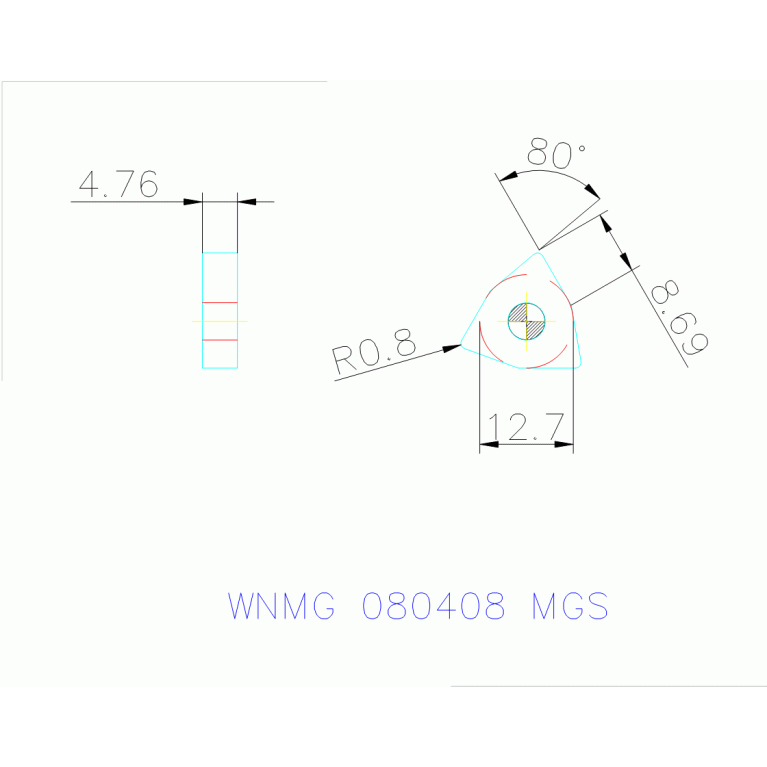

IC Inscribed circle diameter

12.7 mm

ID Technical product number

6309112

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

8.3 mm

LE Cutting edge effective length

2 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN0804082N

Name Identifying order number

WNMG 080408 MGS TT3010

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

WNMG080408

STDDESAnsi Standard designation ANSI

WNMG432

TCINS Tolerance class insert

Working process

No working processes available
