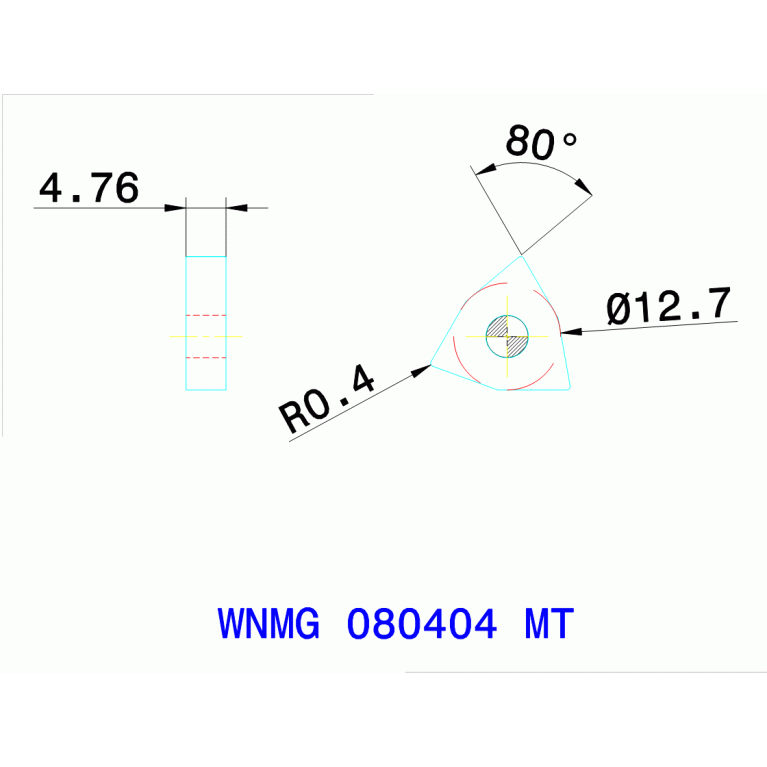

WNMG 080404 MT ZA TT5030
WNMG 080404 MT ZA TT5030
Артикул:
5516514
В наличии
Характеристики
AN Clearance angle major
0 Degree
CB Chip breaker face count
0 - Without chip breaker
COMPC Company code
IL - Ingersoll
Delivery state
NL - Discontinued
DIN
WN0804042N
EPSR Insert included angle
80 Degree
FamilyProducts
insert, Chipbreaker, negative 80° trigon inserts for medium roughing / tough rake angle
GRDMFG Grade manufacturers designation
ZA TT5030
IC Inscribed circle diameter
12.7 mm
ID Technical product number
5516514
IFS Insert mounting style code
2 - With cylindrical bore
IH Insert hand
N - Neutral
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-07 - Trigon insert
L Cutting edge length
8.4 mm
LE Cutting edge effective length
3 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
WN0804042N
Name Identifying order number
WNMG 080404 MT ZA TT5030
RE Corner radius
0.4 mm
S Insert thickness
4.76 mm
S1 Insert thickness total
4.76 mm
STDDES Standard designation
WNMG080404
STDDESAnsi Standard designation ANSI
WNMG431
TCINS Tolerance class insert
M
Working process
No working processes available
