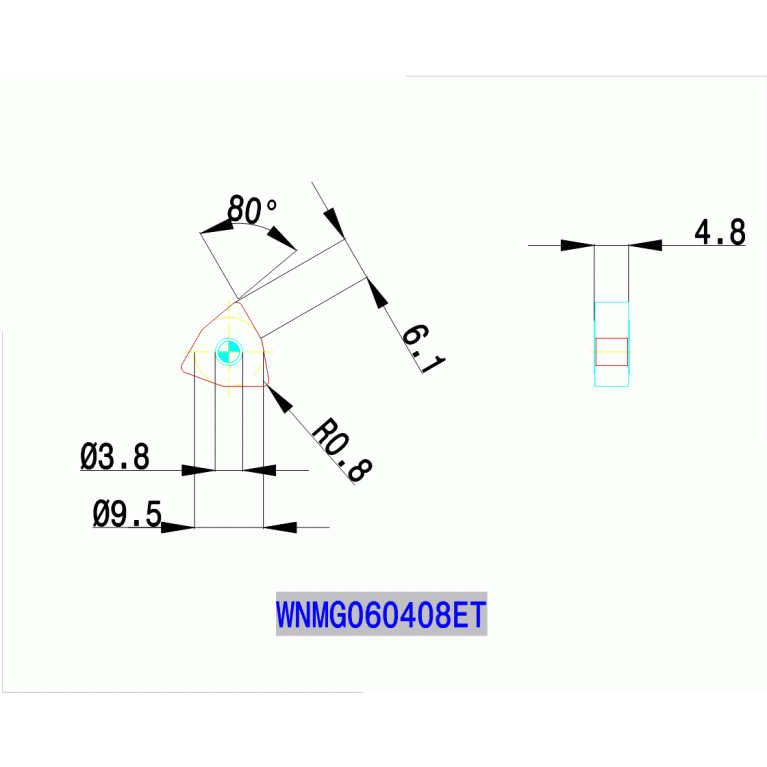

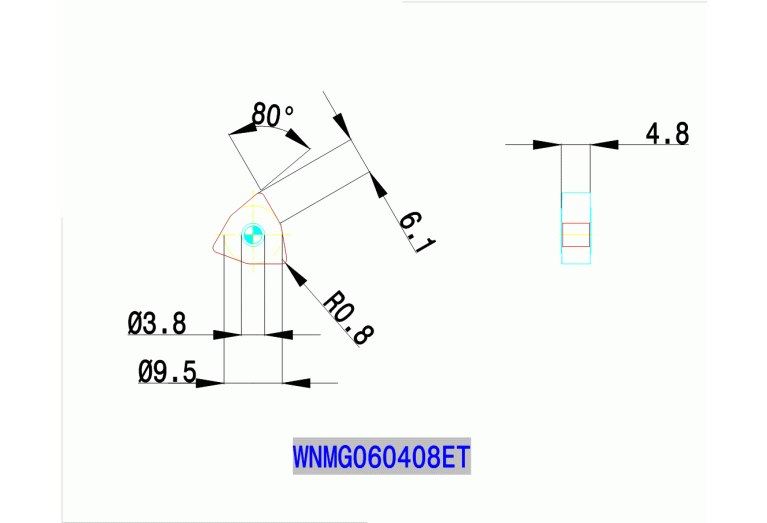

WNMG 060408 ET TT9235
WNMG 060408 ET TT9235
Артикул:
5580397
В наличии
Характеристики
AN Clearance angle major
0 Degree
CB Chip breaker face count
0 - Without chip breaker
COATN Coating
TiCN+Al2O3+TiN
COMPC Company code
IL - Ingersoll
Delivery state
NL - Discontinued
DIN
WN0604082N
EPSR Insert included angle
80 Degree
FamilyProducts
insert, Chipbreaker, negative 80° trigon inserts for roughing / exotic material
GRD2ND Standard designation of the grade 2nd application
M25-M40
GRD3RD Standard designation of the grade 3rd application
S25-S40
GRDMFG Grade manufacturers designation
TT9235
IC Inscribed circle diameter
9.52 mm
ID Technical product number
5580397
IFS Insert mounting style code
2 - With cylindrical bore
IH Insert hand
N - Neutral
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-07 - Trigon insert
L Cutting edge length
6.1 mm
LE Cutting edge effective length
2.5 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
WN0604082N
Name Identifying order number
WNMG 060408 ET TT9235
RE Corner radius
0.8 mm
S Insert thickness
4.76 mm
S1 Insert thickness total
4.76 mm
STDDES Standard designation
WNMG060408
STDDESAnsi Standard designation ANSI
WNMG332
TCINS Tolerance class insert
M
Working process
No working processes available
