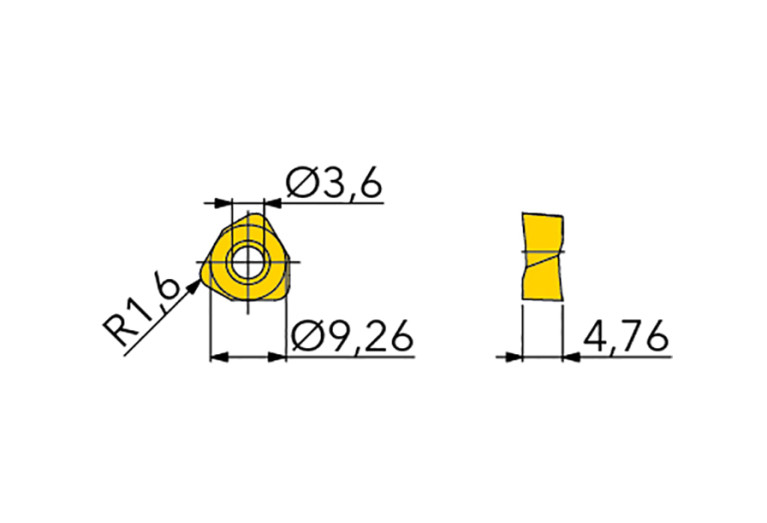

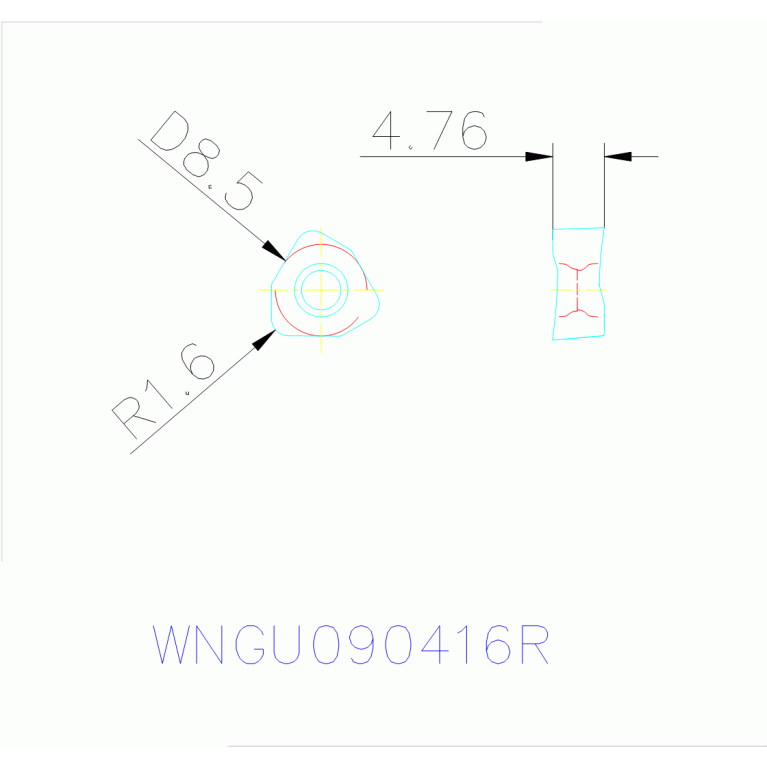

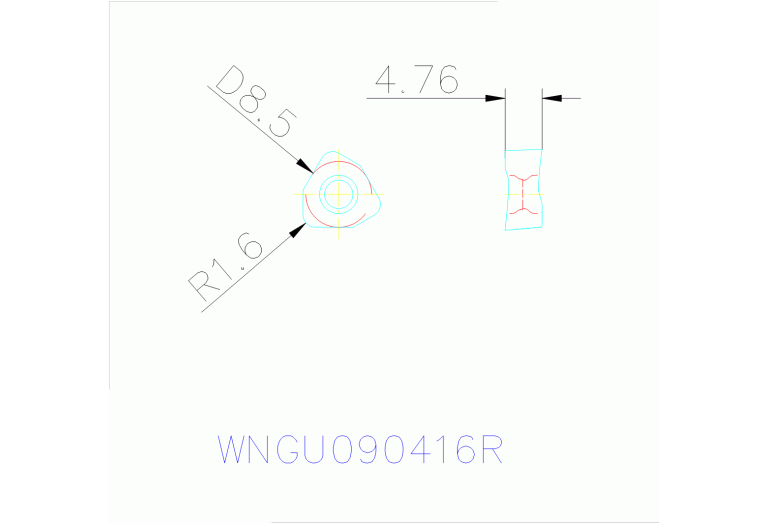

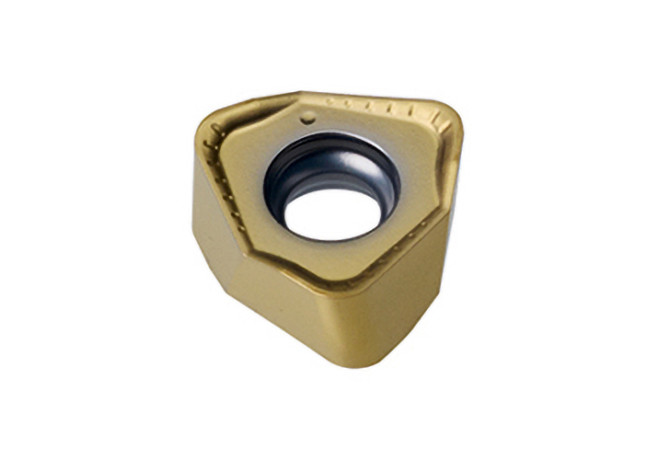

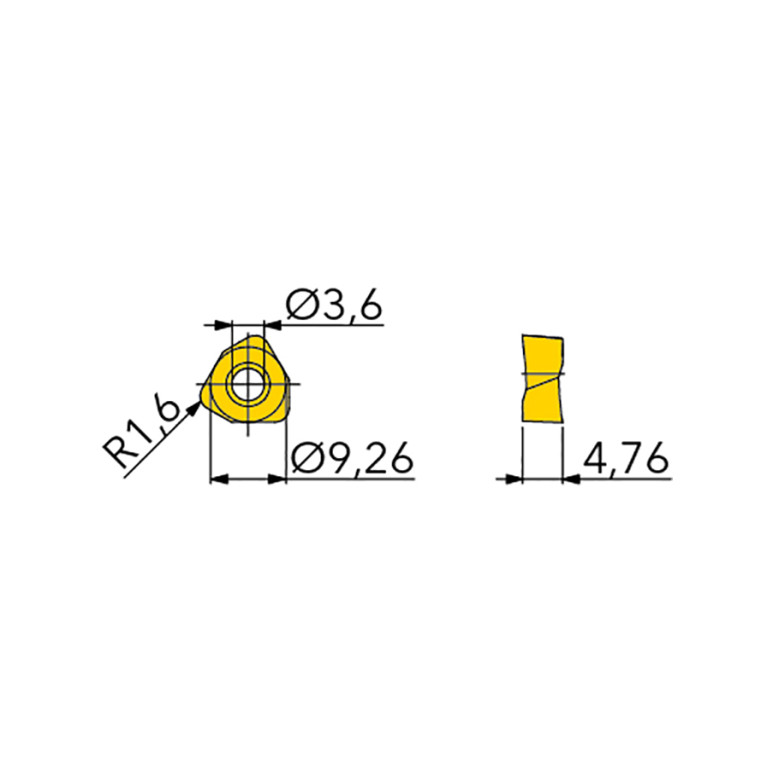

WNGU090416R IN2505

Артикул: 5813431

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

-5 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

COATN Coating / Покрытие

TiAIN+TiN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

3.7 mm

Delivery state

NL - Discontinued

DIN

WN0904 5R

EPSR Insert included angle

90.7 Degree

FamilyProducts

insert, six-edged, positive geometry with R1,6

GRD2ND Standard designation of the grade 2nd application

M15-M35

GRD3RD Standard designation of the grade 3rd application

K20-K40

GRDMFG Grade manufacturers designation

IN2505

GRDPRIO Standard designation of the grade main application

P15-P30

IC Inscribed circle diameter

9.26 mm

ID Technical product number

5813431

IFS Insert mounting style code

5 - Special production, e.g. trough clamping

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

4.61 mm

LE Cutting edge effective length

6.2 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN0904 5R

Name Identifying order number

WNGU090416R IN2505

RE Corner radius

1.6 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

WNGU090416

STDDESAnsi Standard designation ANSI

WNGU4.534

TCINS Tolerance class insert

Working process

No working processes available
