Главная Каталог продукции Toolunited 11 201-07 - Trigon insert WNGU090404FR-P IN10K

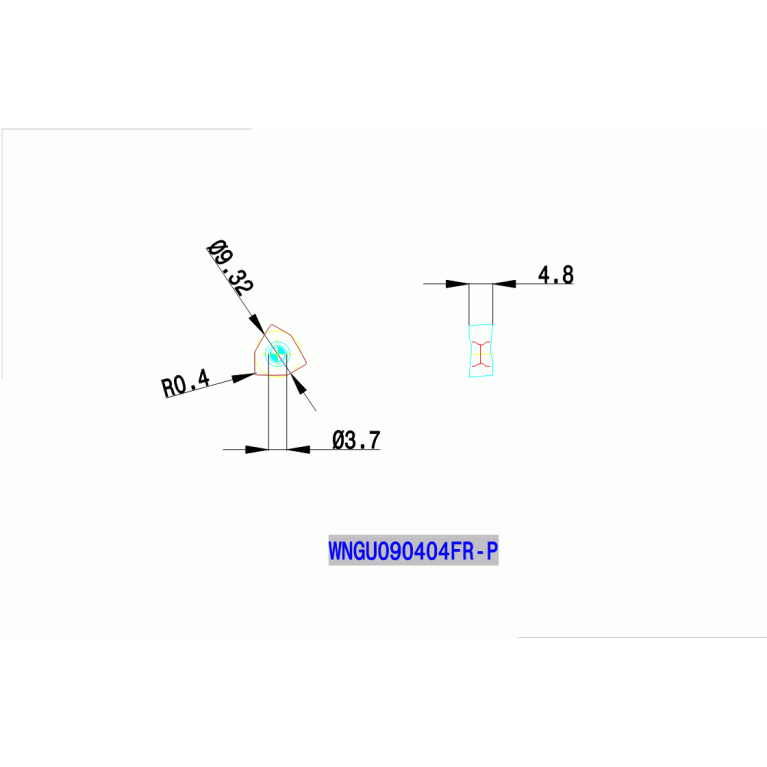

WNGU090404FR-P IN10K

Артикул: 5810282

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

-5 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

3.7 mm

Delivery state

NL - Discontinued

DIN

WN0904 5N

EPSR Insert included angle

90.7 Degree

FamilyProducts

insert,

GRD2ND Standard designation of the grade 2nd application

K10-K25

GRDMFG Grade manufacturers designation

IN10K

GRDPRIO Standard designation of the grade main application

N10-N25

IC Inscribed circle diameter

9.26 mm

ID Technical product number

5810282

IFS Insert mounting style code

5 - Special production, e.g. trough clamping

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

5.79 mm

LE Cutting edge effective length

6.2 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN0904 5N

Name Identifying order number

WNGU090404FR-P IN10K

RE Corner radius

0.4 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

WNGU090404

STDDESAnsi Standard designation ANSI

WNGU4.531

TCINS Tolerance class insert

Working process

No working processes available
