7502632000

Артикул: 7502632000

В наличии

В корзину

Описание

Характеристики

CBMD Chip breaker manufacturers designation

-M60

CECC Cutting edge condition code

E - Rounded

COATN Coating

CTCM130

COMPC Company code

CE - Ceratizit

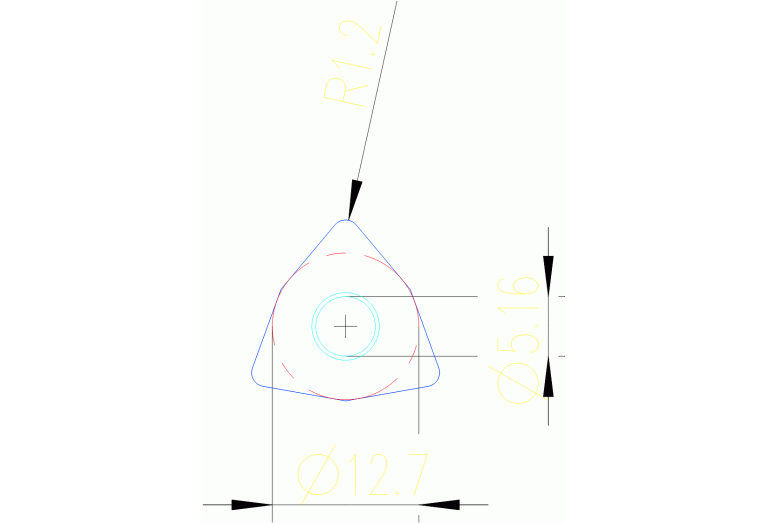

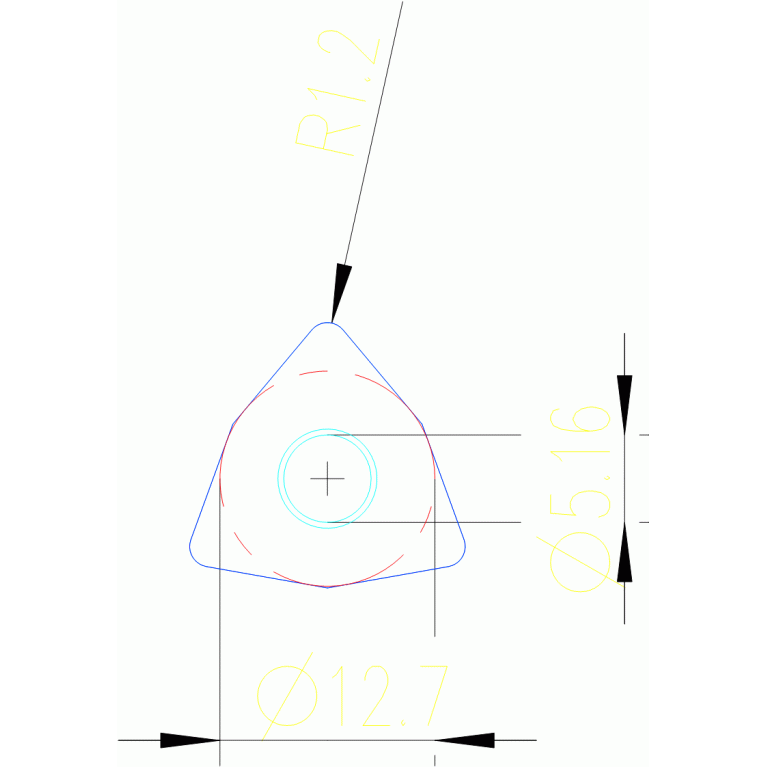

D1 Fixing hole diameter

5.16 mm

Delivery state valid from

10/1/2021

EPSR Insert included angle

80 Degree

FamilyProducts

HM-DREHWENDEPLATTE

GRDPRIO Standard designation of the grade main application

HC-M30

IC Inscribed circle diameter

12.7 mm

IH Insert hand

N - Neutral

Interface codes

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

8.6 mm

Name Identifying order number

7502632000

RE Corner radius

1.2 mm

S Insert thickness

4.76 mm

TCINS Tolerance class insert

Working process

No working processes available
