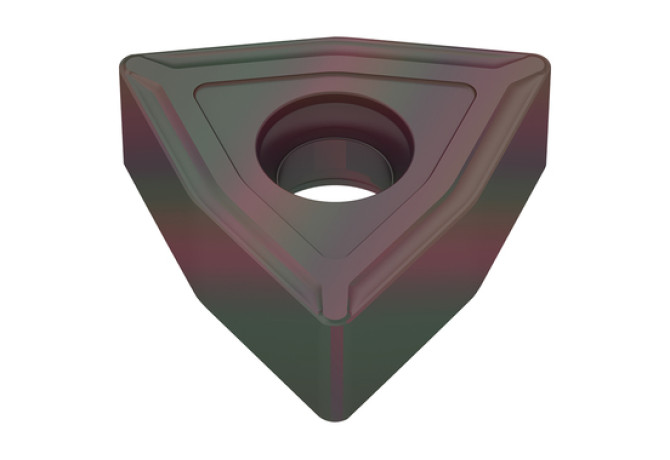

7404372200

Артикул: 7404372200

В наличии

В корзину

Описание

Характеристики

CBMD Chip breaker manufacturers designation

-M52

CECC Cutting edge condition code

S - Chamfered and rounded

COATN Coating

CTCP615

COMPC Company code

CE - Ceratizit

D1 Fixing hole diameter

8 mm

EPSR Insert included angle

80 Degree

FamilyProducts

HM SCHÄLWENDEPLATTE

FLSC Face land size code

S50

GRD2ND Standard designation of the grade 2nd application

HC-M15

GRD3RD Standard designation of the grade 3rd application

HC-S15

GRDPRIO Standard designation of the grade main application

HC-P15

IC Inscribed circle diameter

22 mm

IH Insert hand

L - Left

Interface codes

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

KRINS Cutting edge angle major

15 Degree

Name Identifying order number

7404372200

NOI Insert index count

S Insert thickness

10 mm

TCINS Tolerance class insert

Working process

No working processes available
