Главная Каталог продукции Toolunited 11 201-07 - Trigon insert 7141460000

7141460000

Артикул: 7141460000

В наличии

В корзину

Описание

Характеристики

CBMD Chip breaker manufacturers designation

-Q

CECC Cutting edge condition code

E - Rounded

COATN Coating

CTBH40C

COMPC Company code

CE - Ceratizit

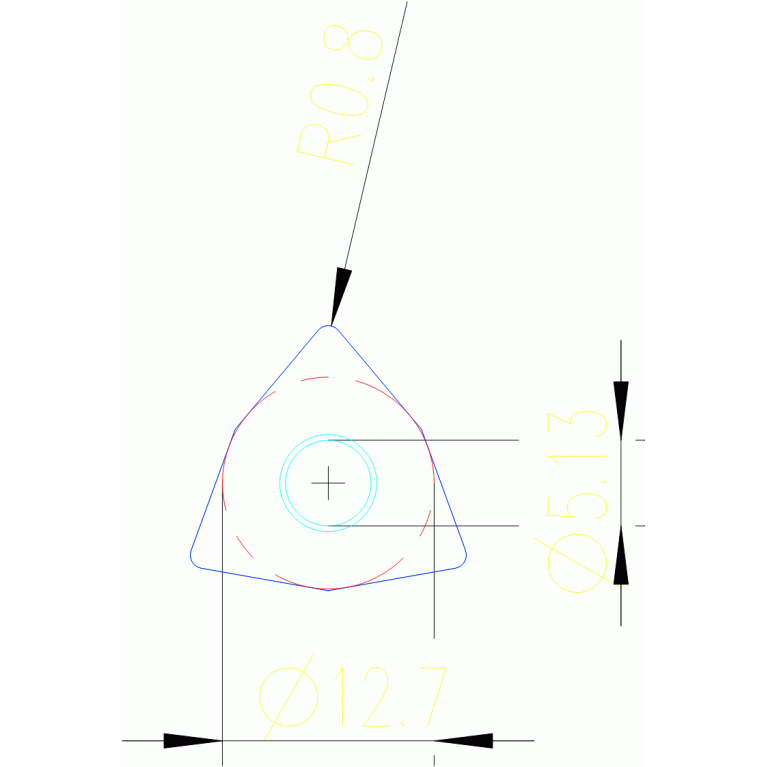

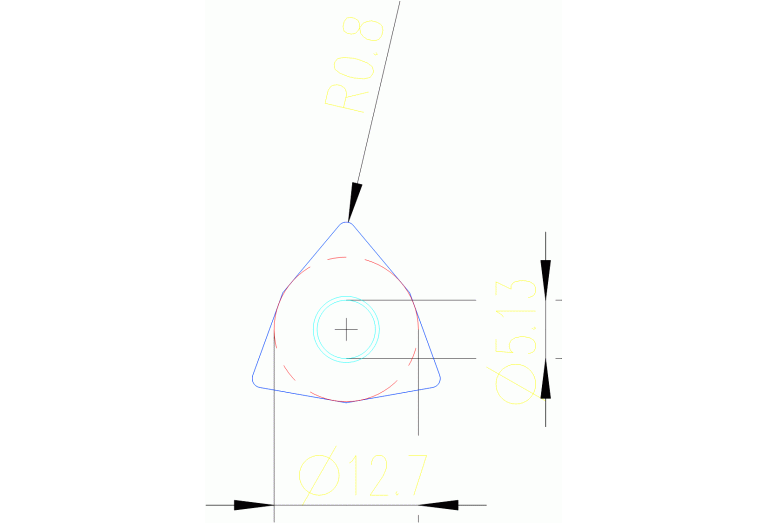

D1 Fixing hole diameter

5.13 mm

Delivery state valid from

10/1/2021

EPSR Insert included angle

80 Degree

FamilyProducts

PCBN-DREHWENDEPLATTE

GRDPRIO Standard designation of the grade main application

BC-H40

IC Inscribed circle diameter

12.7 mm

IH Insert hand

N - Neutral

Interface codes

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

8.5 mm

LE Cutting edge effective length

2.5 mm

Name Identifying order number

7141460000

NOI Insert index count

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
