Главная Каталог продукции Toolunited 11 403-01 - Driven tool unit - straight design TJS 40K BT40L

TJS 40K BT40L

TJS 40K BT40L TJS 40K BT40L

TJS 40K BT40L

Ingersoll
Артикул: 4560232
В наличии
В корзину
Описание
Характеристики

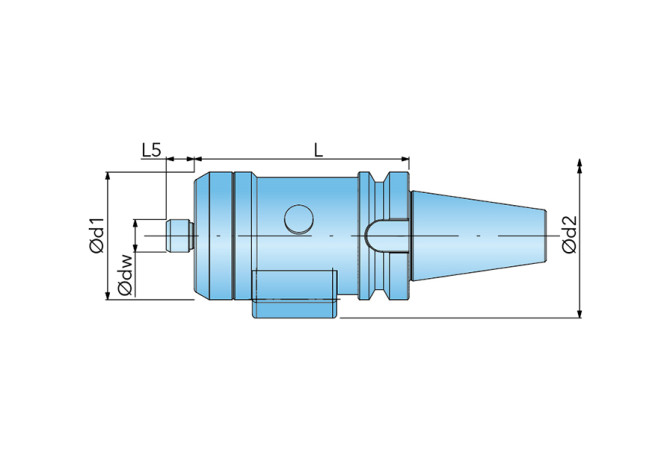

BDX Body diameter maximum
80 mm
CCSWS Connection code style workpiece side
5 - Shaft in machine direction or hole in workpiece direction
CCTOP Connection code type output side
SZD
CCUWS Connection code unit base workpiece side
8 - non-dimensional size
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CONARWS Connection arrangement workpiece side
0
CXSC Coolant exit style code
0 - Without coolant exit
CZCOP Connection size code output side
0110
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
SKG04005085
DIN CSW1
SZD01100285
DRVL Drive length
15 mm
FamilyProducts
High Speed Jet Spindle TJS-BT
ID Technical product number
4560232
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
403-01 - Driven tool unit - straight design
LOC-01-Connection-codes
J41 / J441 - Trennstellenkodierung, Abtrieb 1
LOC-01-DIN
SZD01100285
LOC-03 CCFMS Connection code form
50
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0400
LOC-03-Connection-codes
J6 / J61 - Trennstellenkodierung, maschinenseitig
LOC-03-DIN
SKG04005085
LPR Protruding length
105 mm
Name Identifying order number
TJS 40K BT40L
OAH Overall height
63 mm
Working process
No working processes available
WT Weight of item
1.8 kg
