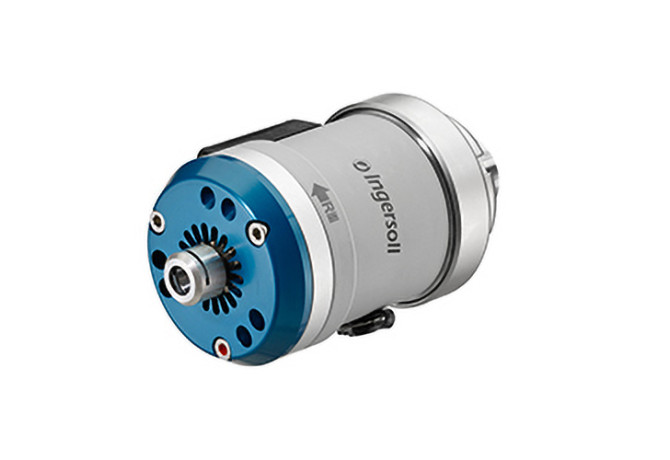

Главная Каталог продукции Toolunited 11 403-01 - Driven tool unit - straight design TJS 20K ER32L

TJS 20K ER32L

TJS 20K ER32L TJS 20K ER32L TJS 20K ER32L

TJS 20K ER32L

Ingersoll
Артикул: 4560136
В наличии
В корзину
Описание
Характеристики
BDX Body diameter maximum
80 mm
CCSWS Connection code style workpiece side
5 - Shaft in machine direction or hole in workpiece direction
CCTOP Connection code type output side
SZD
CCUWS Connection code unit base workpiece side
8 - non-dimensional size
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CONARWS Connection arrangement workpiece side
0
CXSC Coolant exit style code
0 - Without coolant exit
CZCOP Connection size code output side
0110
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
SZD03200285
DIN CSW1
SZD01100285
DRVL Drive length
15 mm
FamilyProducts
High Speed Jet Spindle TJS-ER32
ID Technical product number
4560136
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
403-01 - Driven tool unit - straight design
LF Functional length
82 mm
LOC-01-Connection-codes
J41 / J441 - Trennstellenkodierung, Abtrieb 1
LOC-01-DIN
SZD01100285
LOC-03 CCFMS Connection code form
02
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SZD Collet adapter DIN / ISO
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0320
LOC-03-Connection-codes
J6 / J61 - Trennstellenkodierung, maschinenseitig
LOC-03-DIN
SZD03200285
LPR Protruding length
110 mm
Name Identifying order number
TJS 20K ER32L
OAH Overall height
63 mm
Working process
No working processes available
WT Weight of item
1.1 kg
