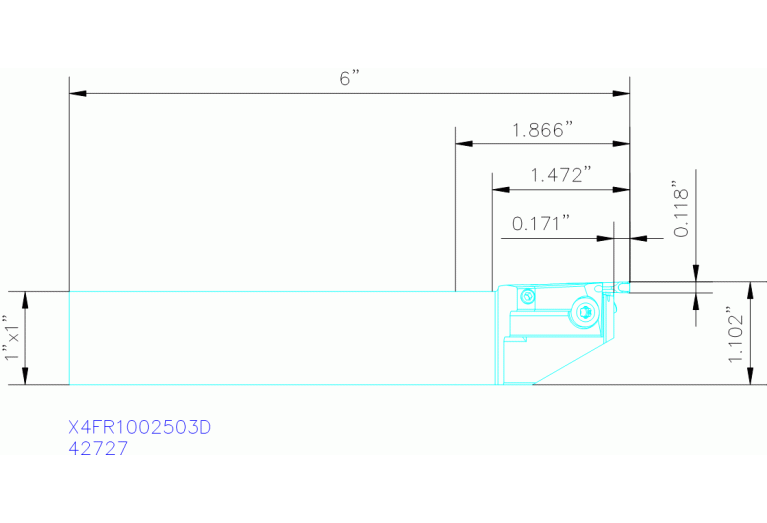

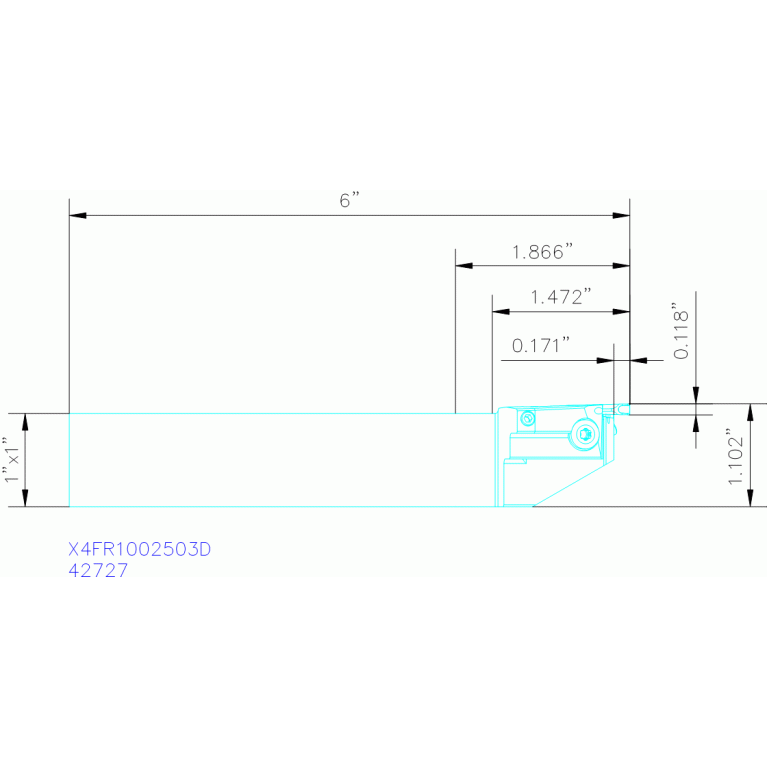

X4FR1002503D

X4FR1002503D

Seco
Артикул: 02968136
В наличии
В корзину
Характеристики
CDX Cutting depth maximum
6.5 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CW Cutting width
3 mm
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2018
DIN
VKT25250105
FamilyProducts
X4FR1002503D
HAND Cutting direction
R - Right
HF Functional height
25.4 mm
ID Technical product number
02968136
Interface codes
J6 /
Interface codes CSW1
/ J441
ISO CSW1
SO$$X42503**2RB
ISYC Subclass
309-04 - Turning tool for OD grooving and parting
KAPR Tool cutting edge angle
90 Degree
LF Functional length
152.4 mm
LH Head length
36 mm
LOC-03 B Shank width
25 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
2525
LOC-03 H Shank height
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT25250105
MIID Master insert identification
X42503R
Name Identifying order number
X4FR1002503D
WF Functional width
28 mm
Working process
No working processes available
WT Weight of item
0.774 kg
