Главная Каталог продукции Toolunited 10 T52852063050M6

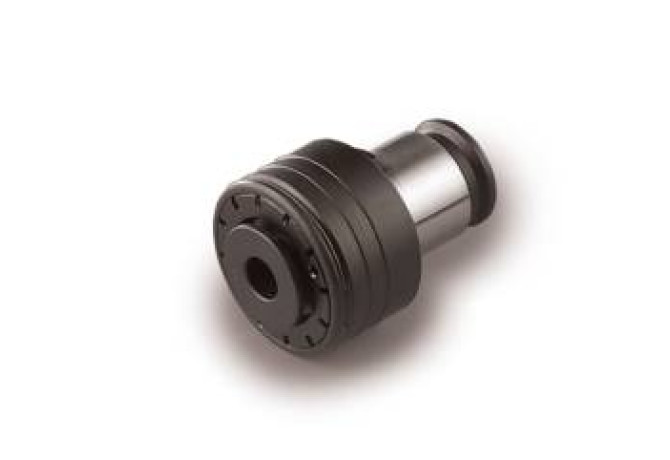

T52852063050M6

Артикул: 75040110

В наличии

В корзину

Описание

Характеристики

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

COMPC Company code

SO - SECO Tools

CZCWS Connection size code

0063

DCONWS Diameter

6.3 mm

Delivery state valid from

4/24/2018

DIN

SWB01900085

FamilyProducts

T52852063050M6

ID Technical product number

75040110

Interface codes

J6 /

ISYC Subclass

402-01 - Cylindrical quick change adaptor for cylindrical connection with drive square

LF Functional length

25 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

0 Metric

LOC-01 CZCWS Connection size code

0063

LOC-01 DCONWS Diameter

6.3 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL00632105

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SWB Quick change adapter BILZ

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0190

LOC-03 DCONMS Diameter

19 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SWB01900085

LPR Protruding length

25 mm

Name Identifying order number

T52852063050M6

OAL Overall length

46.5 mm

WT Weight of item

0.16 kg

Диаметр корпуса (BD) / Body diameter (BD)

32 mm
