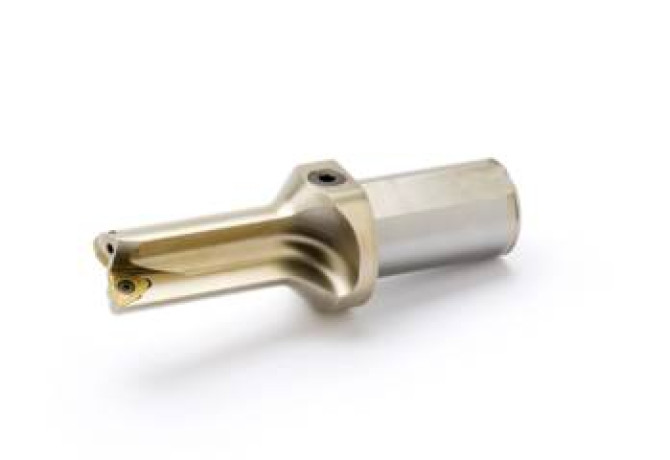

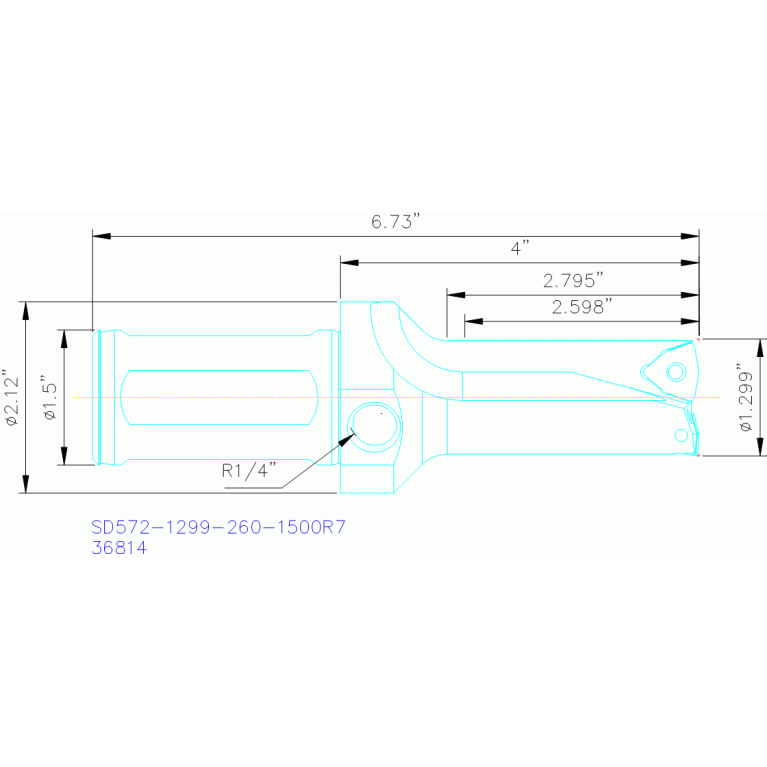

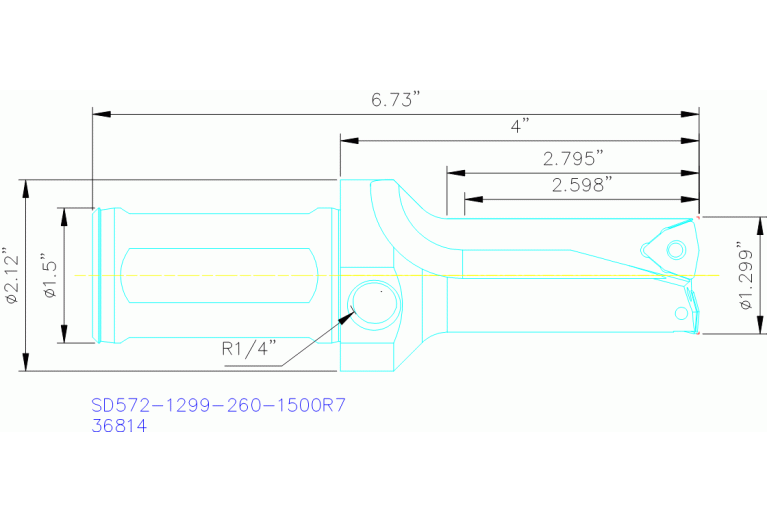

SD572-1299-260-1500R7

SD572-1299-260-1500R7 SD572-1299-260-1500R7 SD572-1299-260-1500R7 SD572-1299-260-1500R7

SD572-1299-260-1500R7

Seco
Артикул: 02602134
В наличии
В корзину
Описание

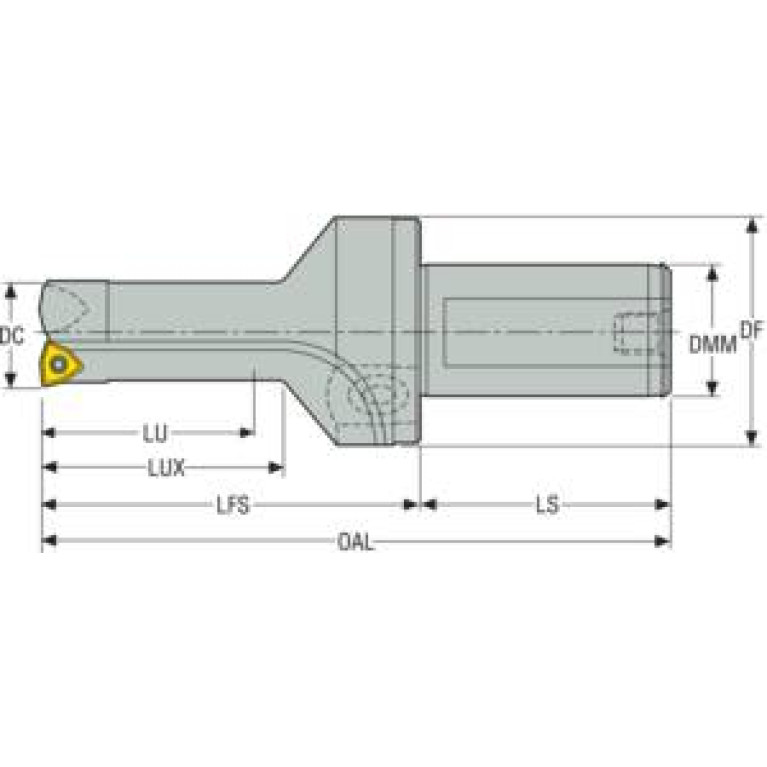

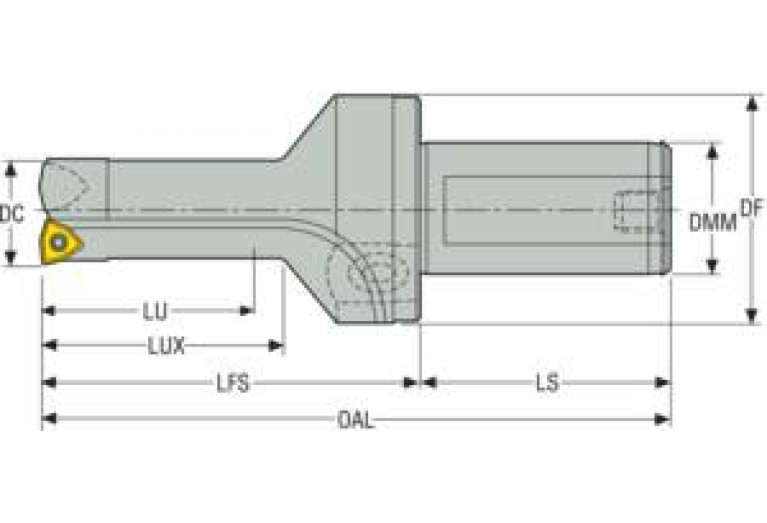

Характеристики
A1A Cutting edge angle major Pos. A
80 Degree
A1B Cutting edge angle major Pos. B
80 Degree
A2A Clearance angle major Pos. A
7 Degree
A2B Clearance angle major Pos. B
7 Degree
B1A Cutting edge length Pos. A
6.14 mm
B1B Cutting edge length Pos. B
8.14 mm
B3A Inscribed circle diameter Pos. A
9.525 mm
B3B Inscribed circle diameter Pos. B
12.7 mm
BLDA Tool style code Position A
7
BLDB Tool style code Position B
7
C1A Insert thickness Pos. A
3.97 mm
C1B Insert thickness Pos. B
4.76 mm
CCONMS Connection count machine side
2
CEDC Cutting edge count
1
COMPC Company code
SO - SECO Tools
D1A Corner radius Pos. A
0.8 mm
D1B Corner radius Pos. B
1.2 mm
DC Cutting diameter minimum
32.995 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter 1st step maximum
40.995 mm
Delivery state valid from
4/24/2018
DIN
ZYL15001025
FamilyProducts
SD572-1299-260-1500R7
HAND Cutting direction
R - Right
ID Technical product number
02602134
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
1
ISISO B Indicator for ISO cutting plate Pos.B
1
ISO
ZYL10S1500h$06
ISYC Subclass
306-01 - Twist drill for indexable inserts
LF Functional length
100.99 mm
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
1500
LOC-03 DCONMS Diameter
38.1 mm
LOC-03 ISO
ZYL10S1500h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL15001025
LPR Protruding length
100.99 mm
LS Shank length
76.2 mm
LU Usable length
70.99 mm
Name Identifying order number
SD572-1299-260-1500R7
NOF Flute count
2
NUMBER INSERTS INSIDE Number of inserts inside
1
NUMBER INSERTS OUTSIDE Number of inserts outside
1
OAL Overall length
175.69 mm
SIG Point angle 1st step
176 Degree
Working process
BVB - Drilling
WT Weight of item
1.26 kg
