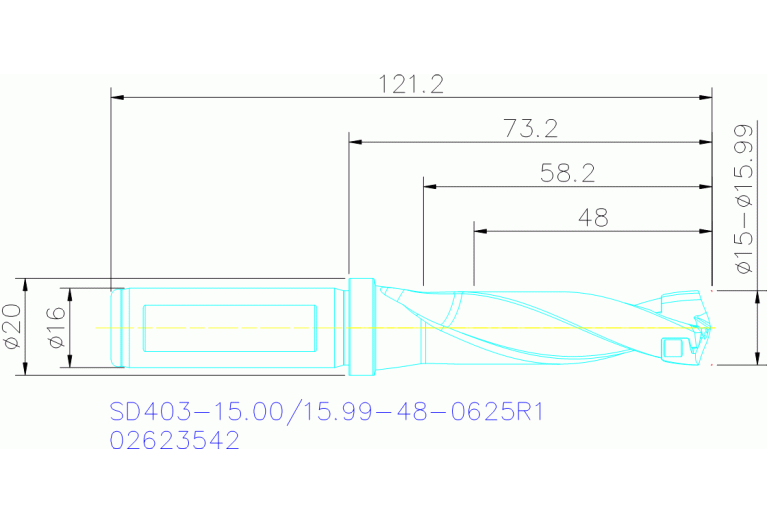

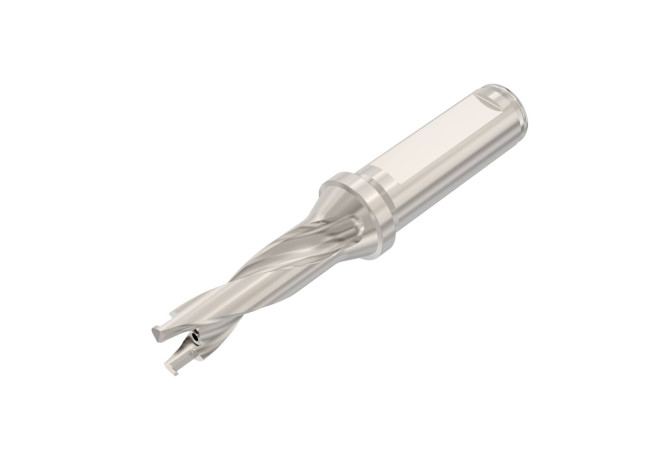

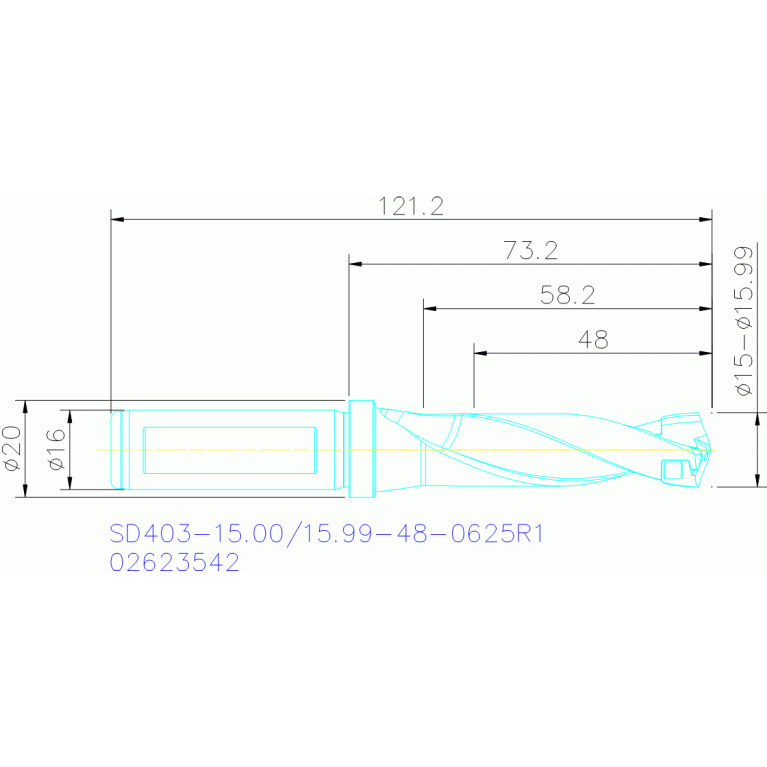

SD403-15.00/15.99-48-0625R1

Артикул: 02623542

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

DC Cutting diameter minimum

15 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter 1st step maximum

15.99 mm

Delivery state valid from

12/1/2023

DIN

ZYL06251135

FamilyProducts

SD403-15.00/15.99-48-0625R1

HAND Cutting direction

R - Right

ID Technical product number

02623542

Interface codes

J6 /

ISYC Subclass

306-10 - Twist drill for drilling blades or drilling inserts

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

3 Inch with coolant

LOC-03 CZCMS Connection size code

0625

LOC-03 DCONMS Diameter

15.875 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL06251135

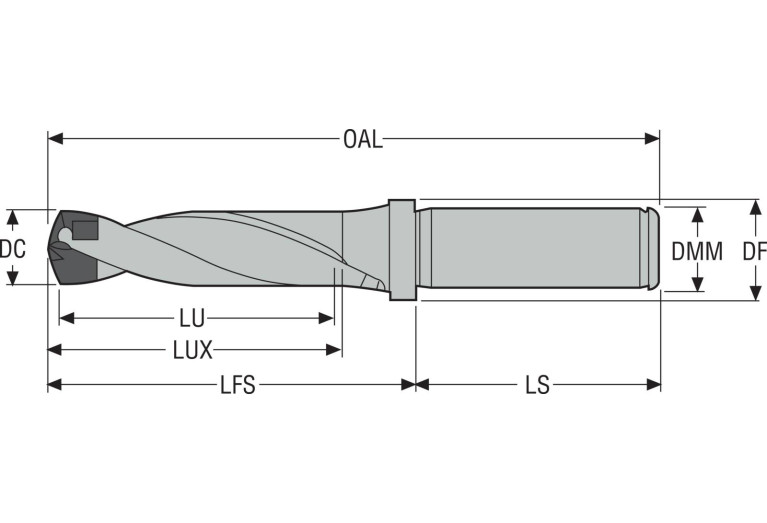

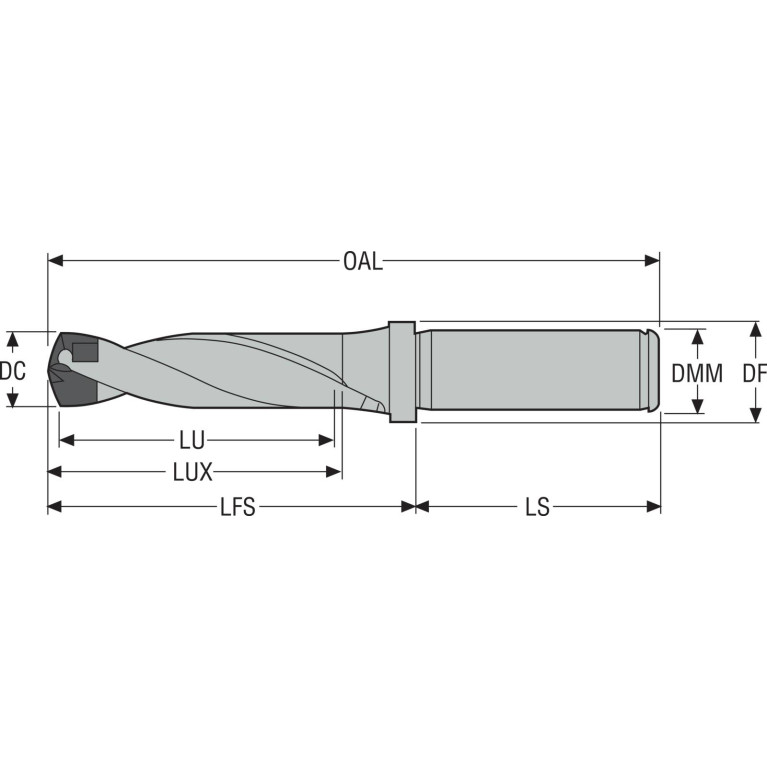

LPR Protruding length

73.2 mm

LS Shank length

48 mm

LU Usable length

48 mm

Name Identifying order number

SD403-15.00/15.99-48-0625R1

OAL Overall length

121.2 mm

Working process

BVB - Drilling
