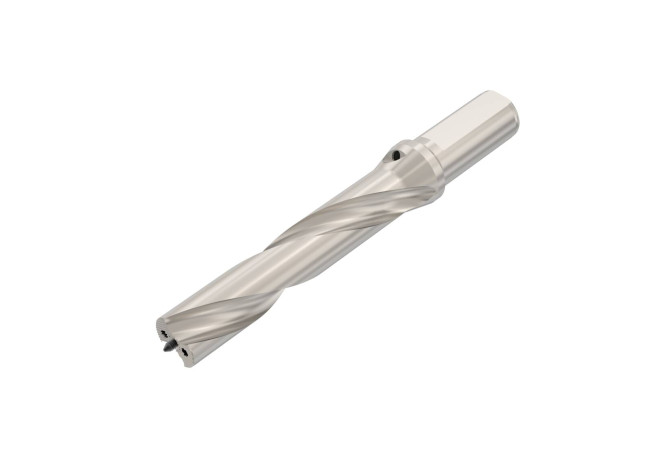

SD105-24.00/25.99-125-1000R7

Артикул: 02466054

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CEDC Cutting edge count

CNSC Coolant entry style code

4 - With Coolant entry, axial on hole circle

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

DC Cutting diameter minimum

24 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter 1st step maximum

25.99 mm

Delivery state valid from

12/1/2023

DIN

ZYL10001135

FamilyProducts

SD105-24.00/25.99-125-1000R7

HAND Cutting direction

R - Right

ID Technical product number

02466054

Interface codes

J6 /

ISYC Subclass

306-10 - Twist drill for drilling blades or drilling inserts

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

3 Inch with coolant

LOC-03 CZCMS Connection size code

1000

LOC-03 DCONMS Diameter

25.4 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL10001135

LPR Protruding length

158.5 mm

LS Shank length

56 mm

LU Usable length

125 mm

Name Identifying order number

SD105-24.00/25.99-125-1000R7

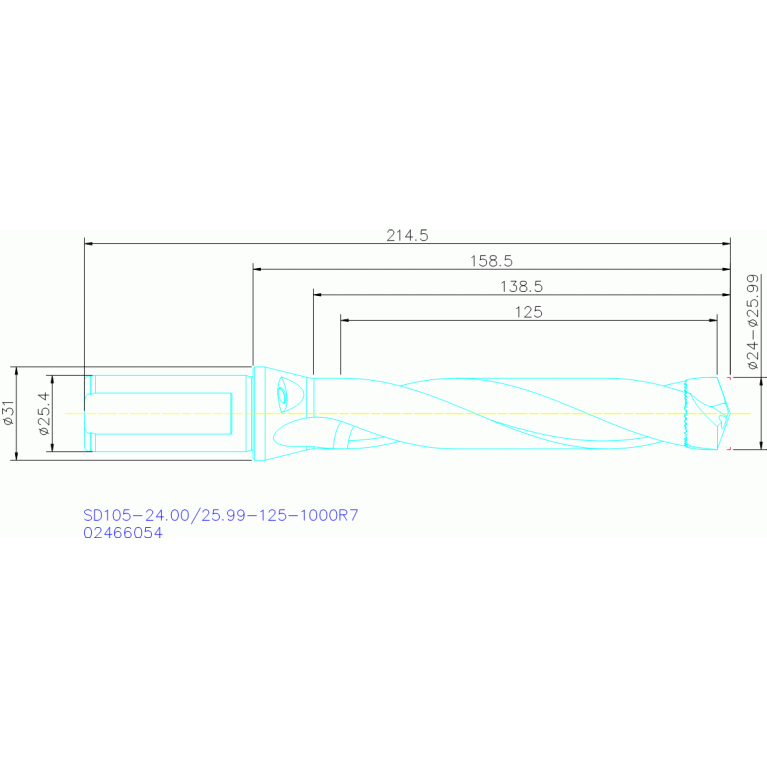

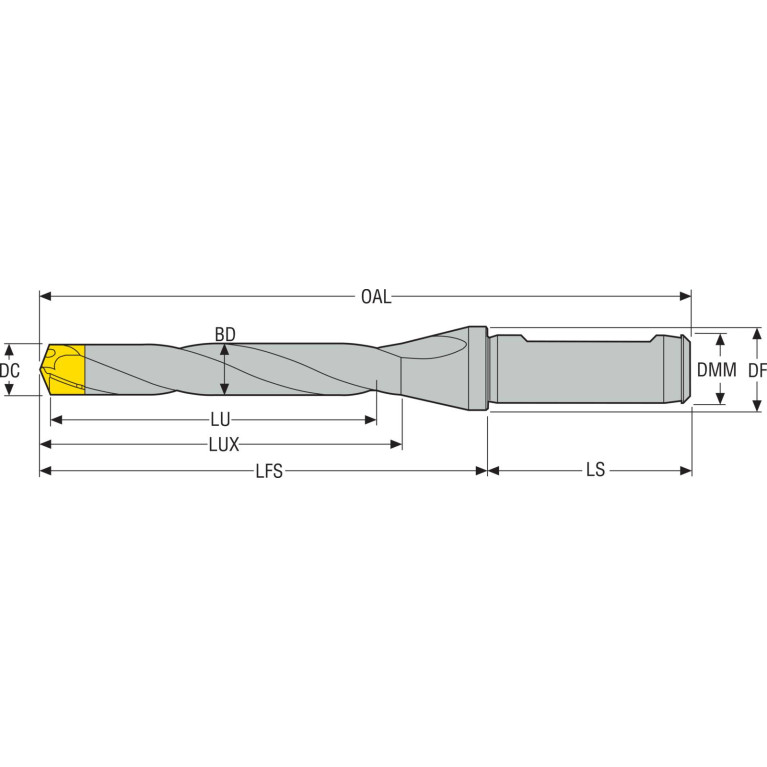

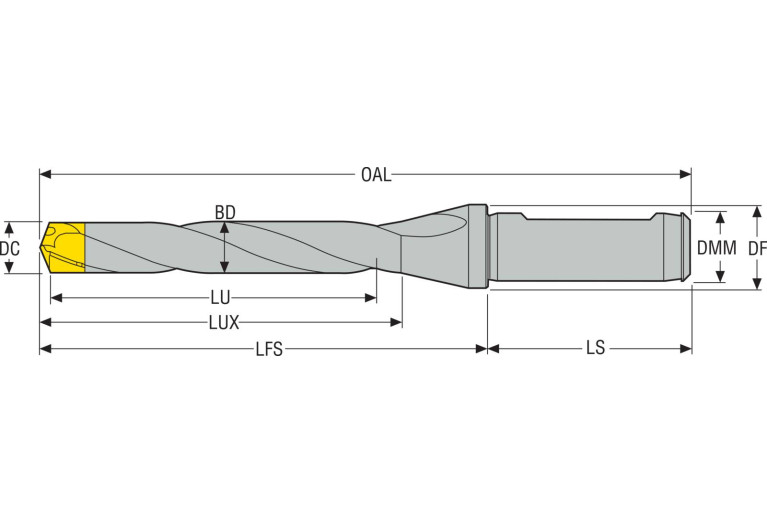

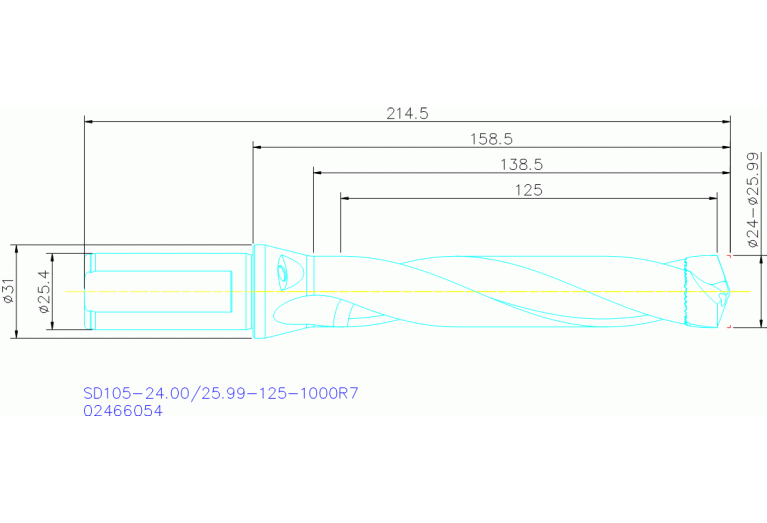

OAL Overall length

214.5 mm

Working process

BVB - Drilling
