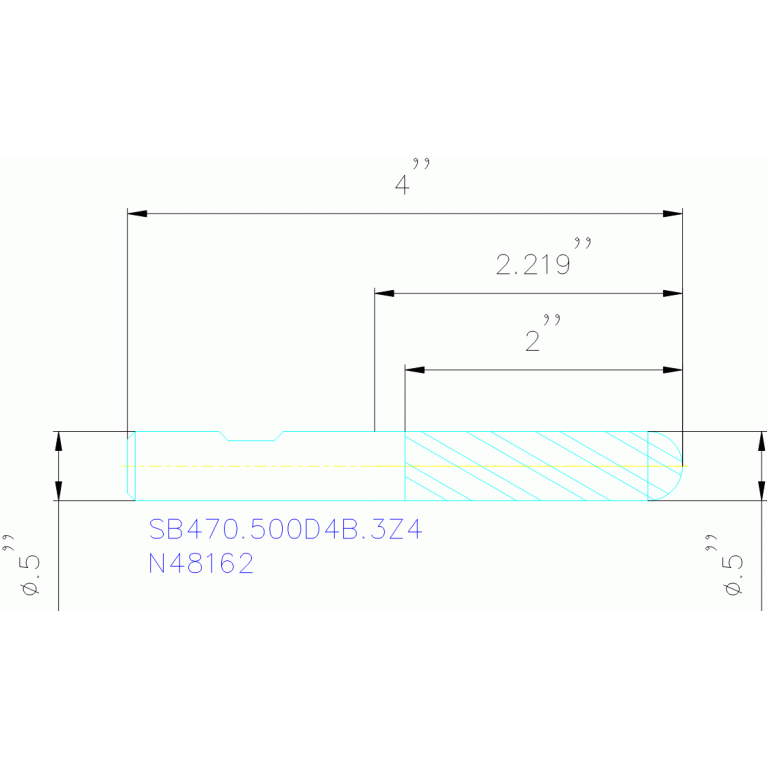

SB470.500D4B.3Z4
SB470.500D4B.3Z4
Артикул:
17011578
В наличии
Характеристики
APMX Depth of cut maximum
50.8 mm
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
12.7 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2018
DIN
ZYL05001025
FamilyProducts
SB470.500D4B.3Z4
FHA Flute helix angle
30 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
30 Degree
GAMP Rake angle axial
10 Degree
HAND Cutting direction
R - Right
ID Technical product number
17011578
Interface codes
J6 /
ISYC Subclass
303-06 - Ball-nosed end mill
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
0500
LOC-03 DCONMS Diameter
12.7 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL05001025
LS Shank length
45.24 mm
Name Identifying order number
SB470.500D4B.3Z4
NameAnsi Identifying order number inch alternative
SB470-0.500-D4-B.3-Z4
OAL Overall length
101.6 mm
PRFRAD Profile radius 1
6.35 mm
Working process
No working processes available
WT Weight of item
0.1 kg
ZEFP Peripheral effective cutting edge count
4
