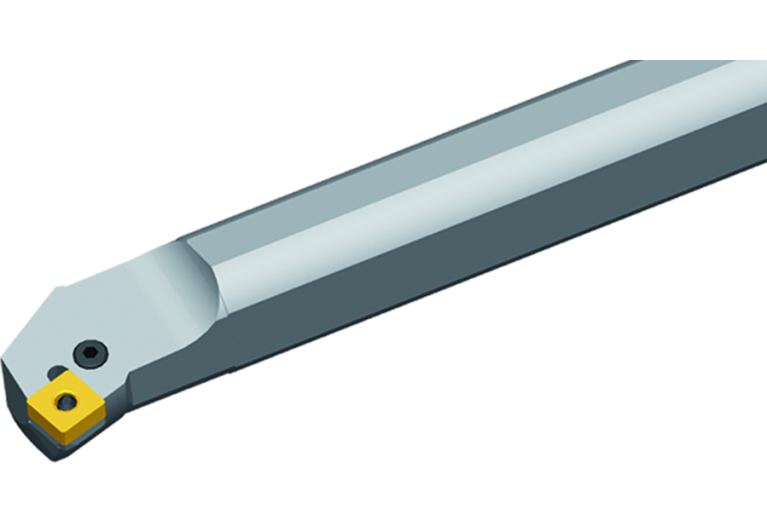

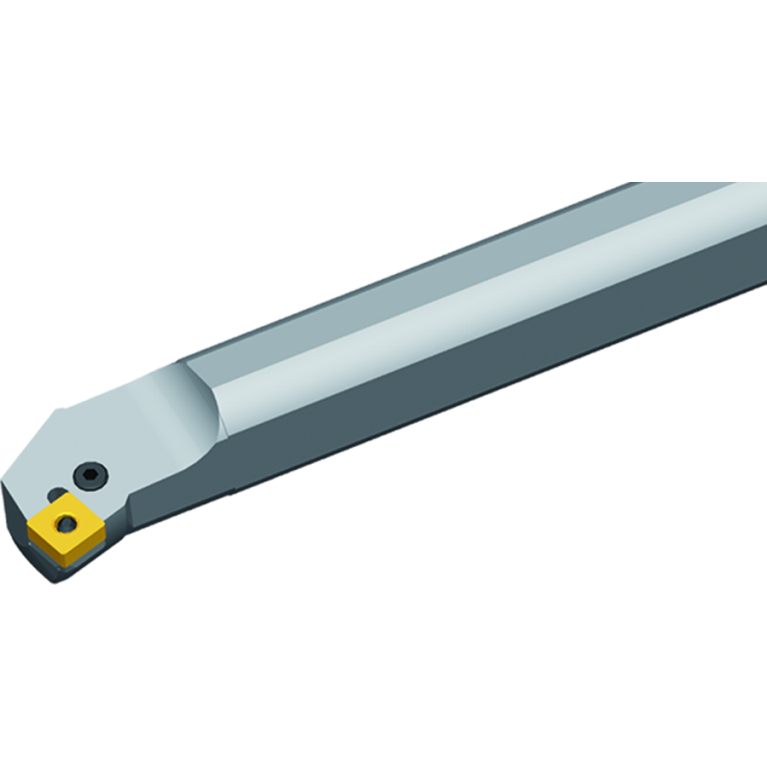

S40V-PSKNL12

Артикул: S40V-PSKNL12

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

12.7 mm

BLDA Tool style code Position A

C1A Insert thickness Pos. A

4.76 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.4 mm

DCC Design configuration style code

S - Solid steel, no construction features

DCP Data chip provision

0 - Without data chip

Delivery state valid from

36.5 kg

DIN

ZYL04002205

DIN CSW1

SN1204162N

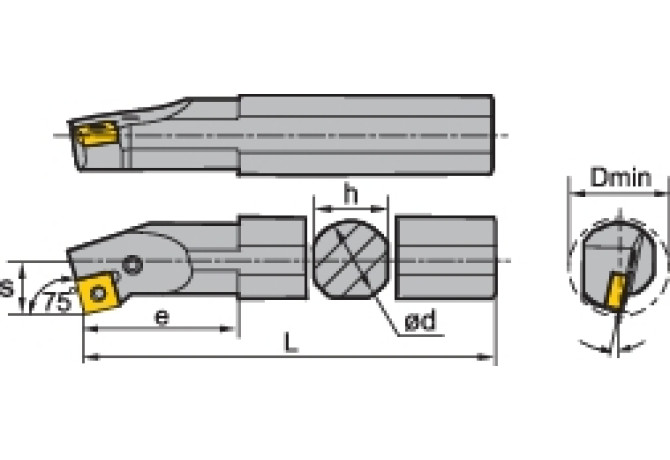

DMIN Minimum bore diameter

54 mm

EPSR Insert included angle

90 Degree

FamilyProducts

SN** steel boring bar

GAMF Rake angle radial

-10 Degree

HAND Cutting direction

L - Left

ID Identifying order number

S40V-PSKNL12

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

75 Degree

L Cutting edge length

12.7 mm

LF Functional length

400 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03 H Shank height

37 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL04002205

MIID Master insert identification

SNMG120404

MTP Clamping type code

P - Hole clamping, with straight bore

STDDES Standard designation

S40V-PSKNL12

SX Shank cross section shape code

31 - (left) Round shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

27 mm

Working process

No working processes available
