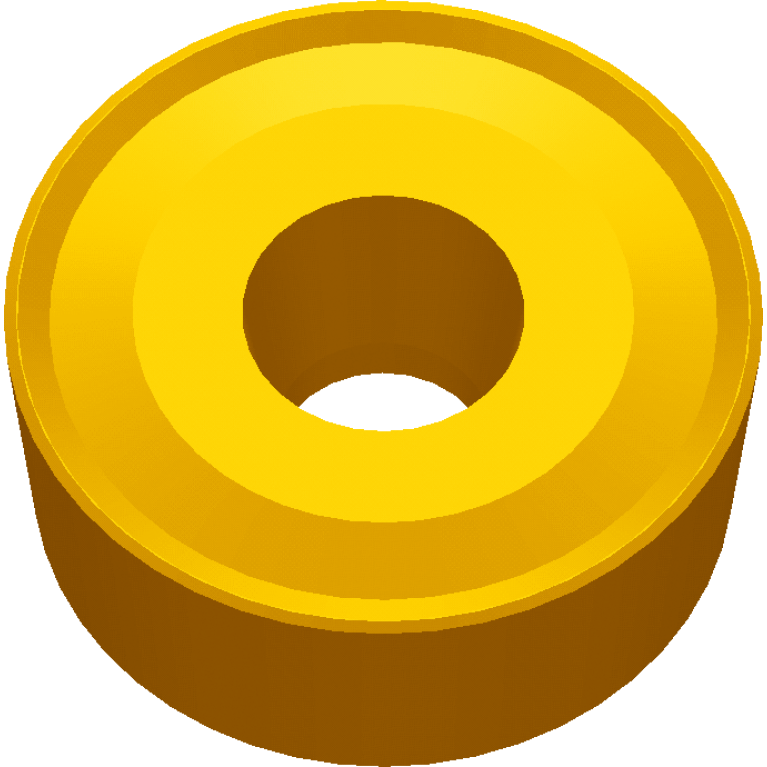

RCMX2006MO YBC351

Артикул: RCMX2006MO YBC351

В наличии

В корзину

Описание

Характеристики

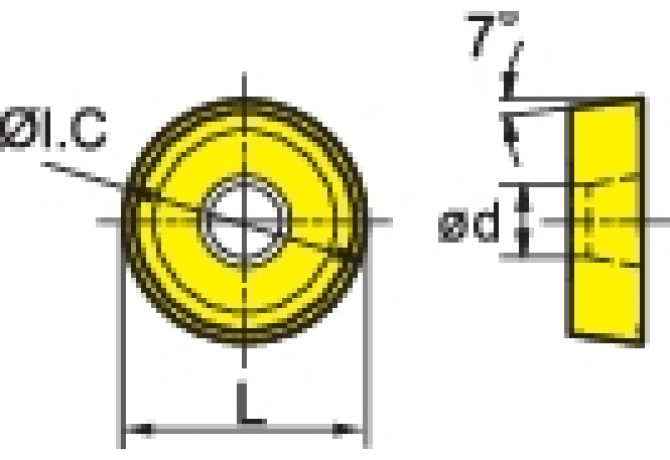

AN Clearance angle major

7 Degree

COATN Coating

MT-TiCN,Al2O3,TiN

COMPC Company code

ZCC - ZCC Cutting Tools

D1 Fixing hole diameter

6.5 mm

Delivery state valid from

0.22 kg

DIN

RC2006M03N

FamilyProducts

RC** positive insert

GRDMFG Grade manufacturers designation

YBC351

GRDPRIO Standard designation of the grade main application

P20-P40

IC Inscribed circle diameter

20 mm

ID Identifying order number

RCMX2006MO YBC351

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC2006M03N

M M-dimension

20 mm

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

TCINS Tolerance class insert

Working process

No working processes available
