Главная Каталог продукции Toolunited 10 RCMT10T3M0-F1 TP3500

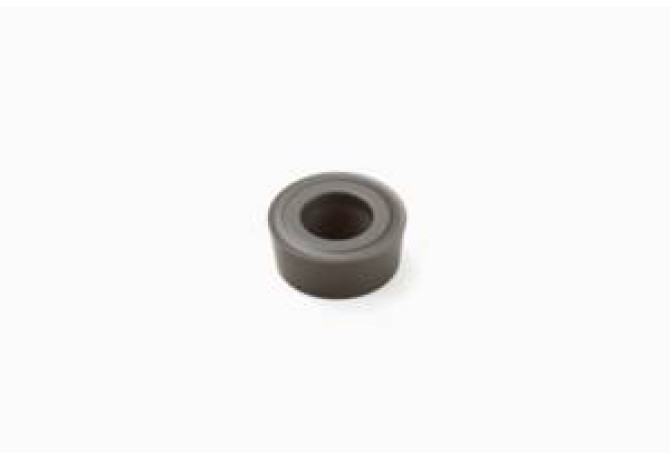

RCMT10T3M0-F1 TP3500

Артикул: 02671582

В наличии

В корзину

Описание

Характеристики

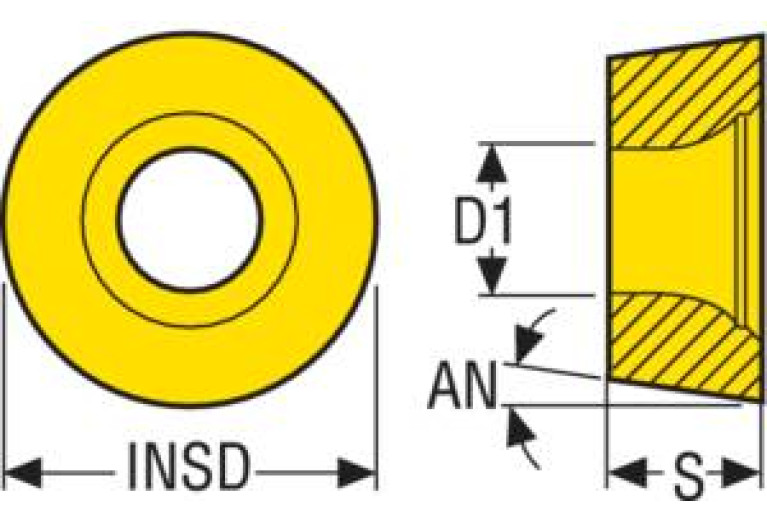

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COMPC Company code

SO - SECO Tools

Delivery state valid from

3/14/2020

DIN

RC10T3M03N

FamilyProducts

RCMT10T3M0-F1 TP3500

GRDMFG Grade manufacturers designation

TP3500

IC Inscribed circle diameter

10 mm

ID Technical product number

02671582

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$RC10T3M03NB$$M0

ISYC Subclass

201-10 - Round insert

LOC-03 ISO

ISO$RC10T3M03NB$$M0

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC10T3M03N

M M-dimension

10 mm

MIID Master insert identification

RCMT10T3M0 TP3500

Name Identifying order number

RCMT10T3M0-F1 TP3500

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

RCMT10T3M0

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.002 kg
