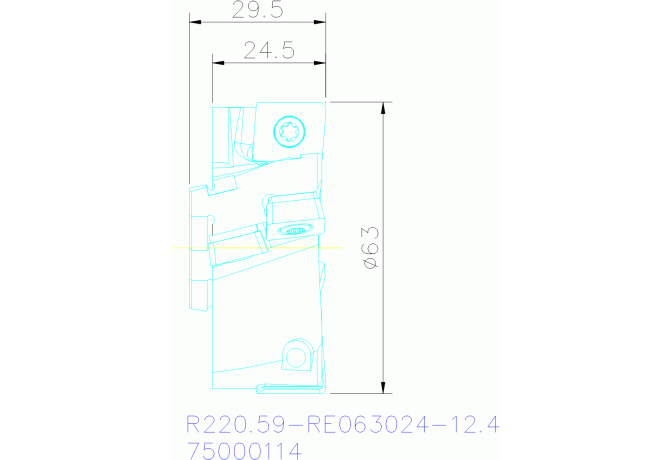

R220.59-RE063024-12.4
R220.59-RE063024-12.4
Артикул:
75000114
В наличии
Характеристики
BLDA Tool style code Position A
5
BLDB Tool style code Position B
2
CCONMS Connection count machine side
0
CICT Cutting item count
8
COMPC Company code
SO - SECO Tools
CWN Cutting width minimum
24 mm
DC Cutting diameter
63 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DHUB Hub diameter
60.8 mm
FamilyProducts
R220.59-RE063024-12.4
GAMF Rake angle radial
-4 Degree
GAMP Rake angle axial
-12 Degree
HAND Cutting direction
R - Right
ID Technical product number
75000114
Interface codes
/
ISISO A Indicator for ISO cutting plate Pos.A
1
ISISO B Indicator for ISO cutting plate Pos.B
0
ISYC Subclass
308-04 - Shell milling cutter
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
SCET120612R-M10
LOC-02 ISO
SO$$SC1206**3RB****
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
SO-SC3-120612
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0080
LOC-03 DCONMS Diameter
8 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
Name Identifying order number
R220.59-RE063024-12.4
OAL Overall length
29.5 mm
Working process
No working processes available
WT Weight of item
0.251 kg
ZEFP Peripheral effective cutting edge count
2
