R220.59-00100077-12.6SR6

R220.59-00100077-12.6SR6 R220.59-00100077-12.6SR6 R220.59-00100077-12.6SR6 R220.59-00100077-12.6SR6

R220.59-00100077-12.6SR6

SECO Tools
Артикул: 75000247
В наличии
В корзину
Описание
Характеристики
BI Block index
1
CCONMS Connection count machine side
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools

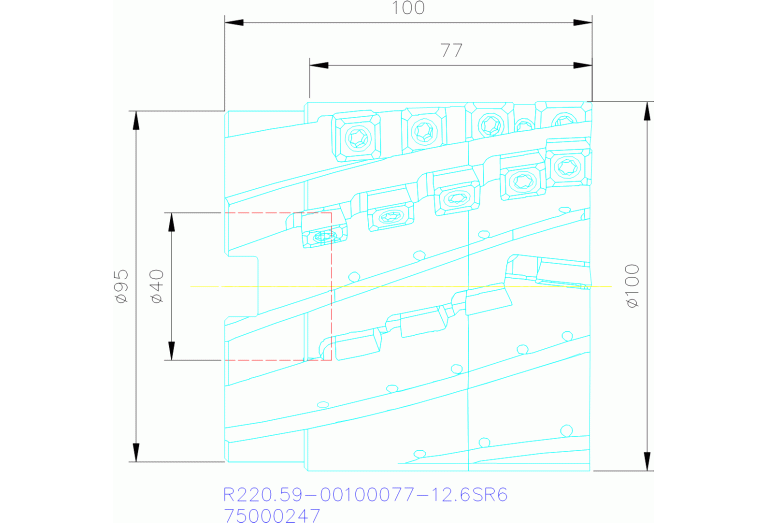

CWN Cutting width minimum
77 mm
CXSC Coolant exit style code
0 - Without coolant exit

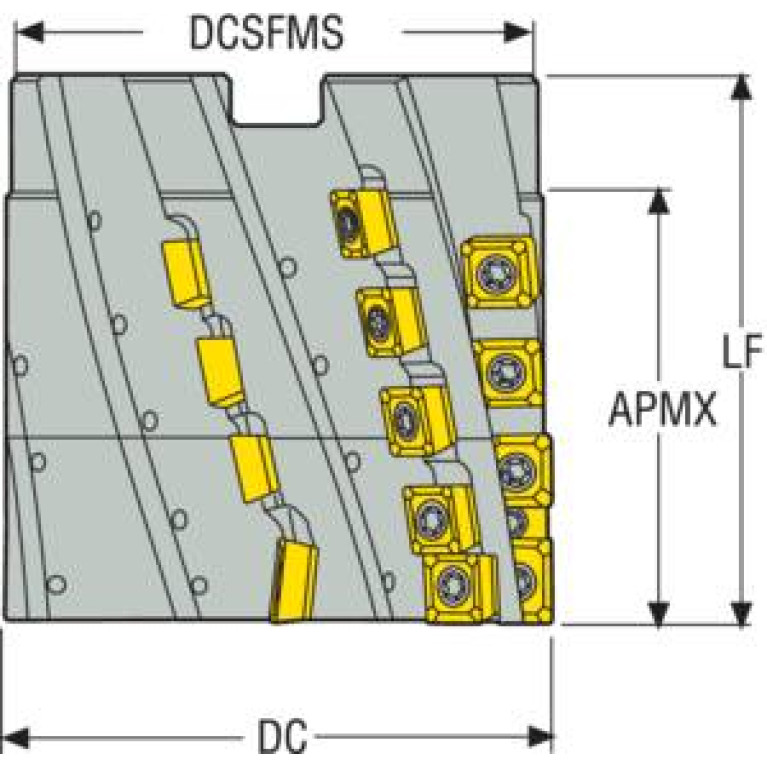

DC Cutting diameter
100 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DHUB Hub diameter
90 mm
DIN
FDA04002200
FamilyProducts
R220.59-00100077-12.6SR6
GAMF Rake angle radial
-14 Degree
GAMP Rake angle axial
-7 Degree
ID Technical product number
75000247
Interface codes
J6 /
ISYC Subclass
308-04 - Shell milling cutter
LOC-01 BI Block index
1
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
SO-AC1506 3R
LOC-02 BI Block index
2
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
SO-AC1506 3R
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA04002200
Name Identifying order number
R220.59-00100077-12.6SR6
OAL Overall length
100 mm
RPMX Rotational speed maximum
5800 1/min
Working process
No working processes available
WT Weight of item
4.381 kg
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
6
