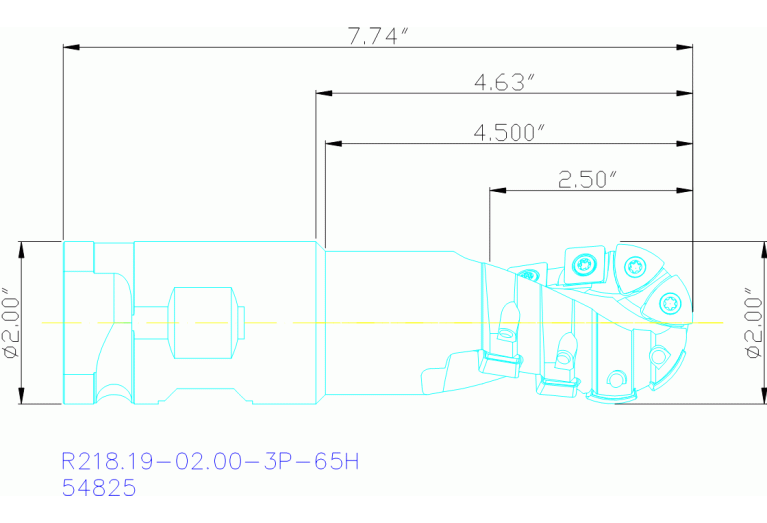

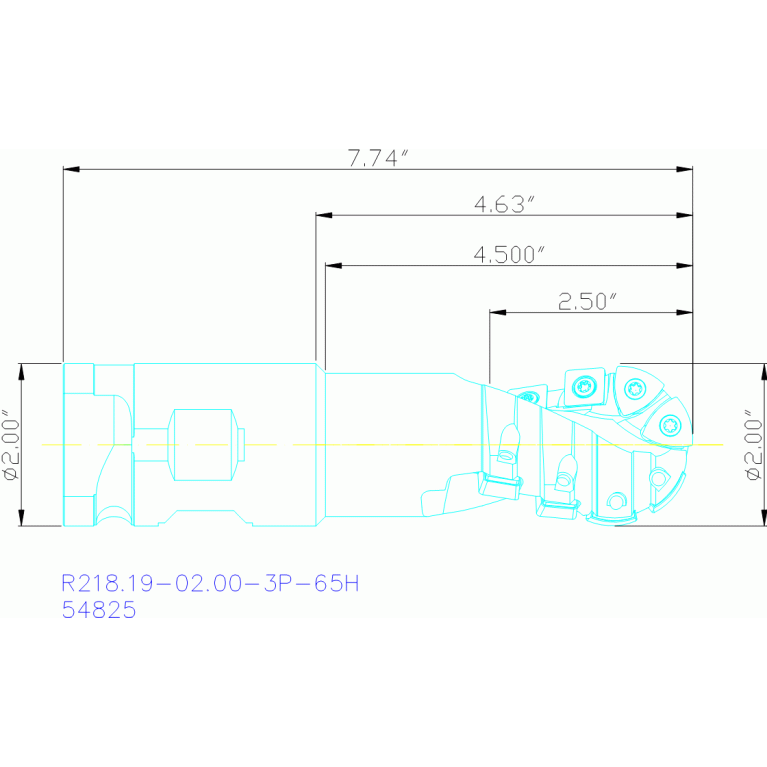

R218.19-02.00-3P-65H
R218.19-02.00-3P-65H
Артикул:
75054825
В наличии
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A2A Clearance angle major Pos. A
7 Degree
A2B Clearance angle major Pos. B
12 Degree
APMX Depth of cut maximum
65.7 mm
B1A Cutting edge length Pos. A
12.673 mm
B3A Inscribed circle diameter Pos. A
12.673 mm
B3B Inscribed circle diameter Pos. B
12.7 mm
BLDA Tool style code Position A
2
BLDB Tool style code Position B
99
C1A Insert thickness Pos. A
6.35 mm
C1B Insert thickness Pos. B
5.5 mm
CCONMS Connection count machine side
1
CICT Cutting item count
8
COMPC Company code
SO - SECO Tools
D1A Corner radius Pos. A
1.2 mm
D1B Corner radius Pos. B
0.6 mm
DC Cutting diameter
50.8 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/7/2017
DIN
ZYL20001025
FamilyProducts
R218.19-02.00-3P-65H
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
75054825
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISISO B Indicator for ISO cutting plate Pos.B
0
ISYC Subclass
307-11 - Straight ball-nosed end mill
KAPR Tool cutting edge angle
90 Degree
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
218.19-200T-05-M10
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
SO-SO-218 19-20005
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
2000
LOC-03 DCONMS Diameter
50.8 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL20001025
LPR Protruding length
116.9 mm
LS Shank length
79 mm
LU Usable length
117.9 mm
Name Identifying order number
R218.19-02.00-3P-65H
OAL Overall length
196.9 mm
RPMX Rotational speed maximum
9200 1/min
Working process
No working processes available
WT Weight of item
2.5 kg
ZEFF Face effective cutting edge count
1
ZEFP Peripheral effective cutting edge count
1
