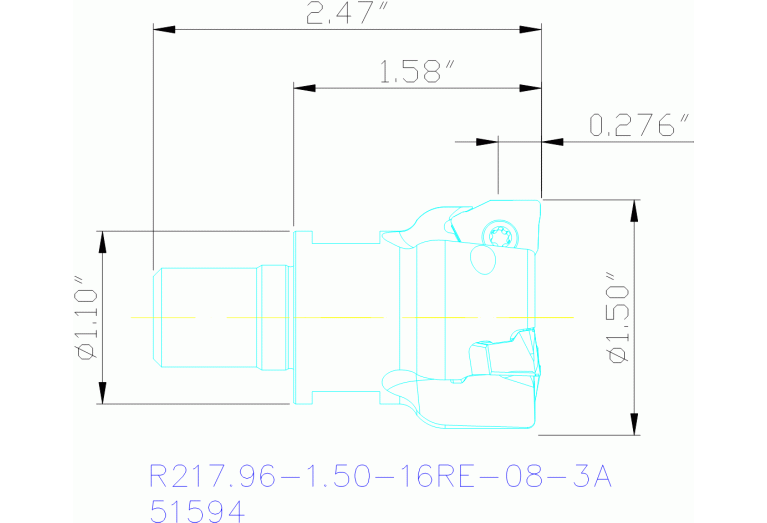

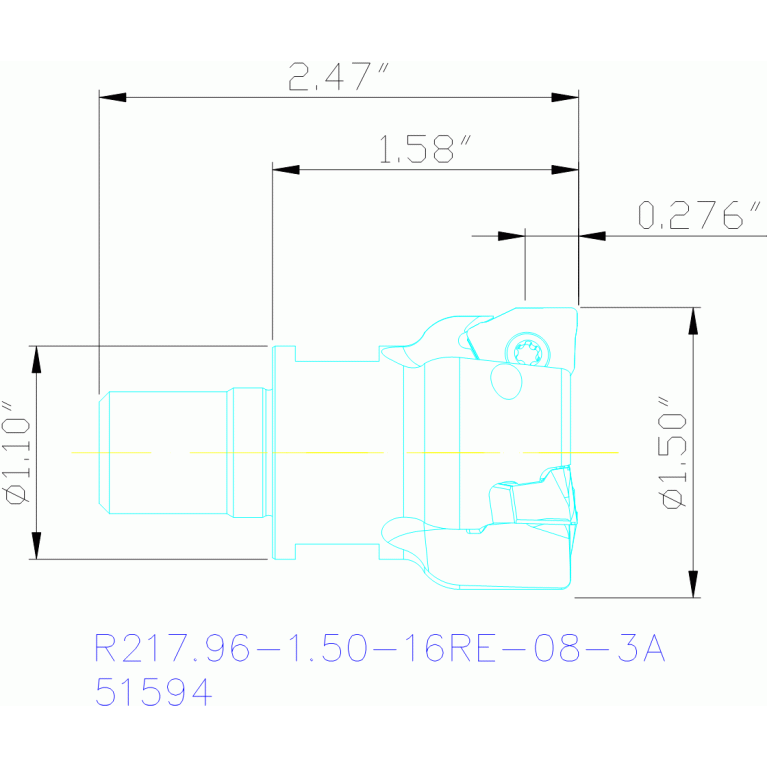

R217.96-1.50-16RE-08-3A

Артикул: 02678958

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

88.28 Degree

A2A Clearance angle major Pos. A

0 Degree

APMX Depth of cut maximum

7.5 mm

B1A Cutting edge length Pos. A

7.5 mm

B3A Inscribed circle diameter Pos. A

12.48 mm

BLDA Tool style code Position A

C1A Insert thickness Pos. A

6.45 mm

CCONMS Connection count machine side

CICT Cutting item count

COMPC Company code

SO - SECO Tools

D6A Wiper edge length Pos. A

1.8 mm

DC Cutting diameter

38.05 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

SAD01600105

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

R217.96-1.50-16RE-08-3A

GAMF Rake angle radial

-15.2 Degree

GAMP Rake angle axial

-8.4 Degree

HAND Cutting direction

R - Right

ID Technical product number

02678958

Interface codes

J6 / J61

ISISO A Indicator for ISO cutting plate Pos.A

ISO

SCM01G3000$$$$

ISYC Subclass

307-01 - Non-centre cutting single row end mill

KAPR Tool cutting edge angle

90 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAD Screw mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 ISO

SCM01G3000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAD01600105

Name Identifying order number

R217.96-1.50-16RE-08-3A

NameAnsi Identifying order number inch alternative

R217.96-01.50-16RE-08-3A

RMPX Ramping angle maximum

0 Degree

RPMX Rotational speed maximum

11800 1/min

THSZMS Connection thread nominal size machine side

M16

Working process

No working processes available

WT Weight of item

0.2 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
