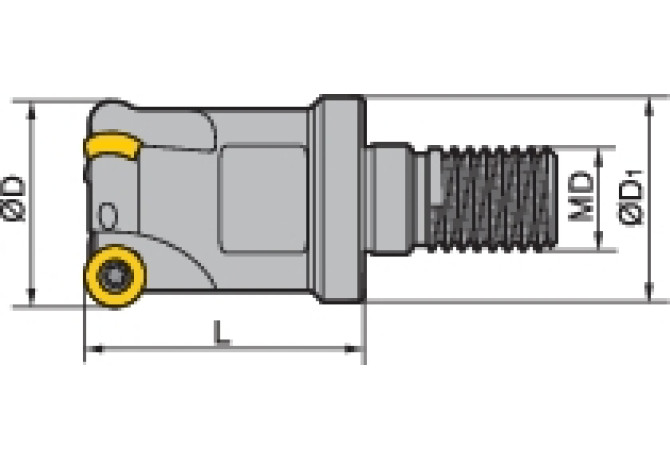

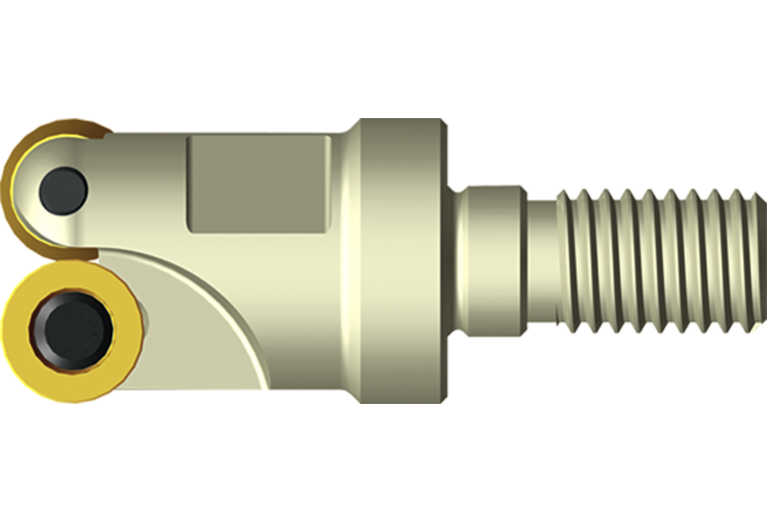

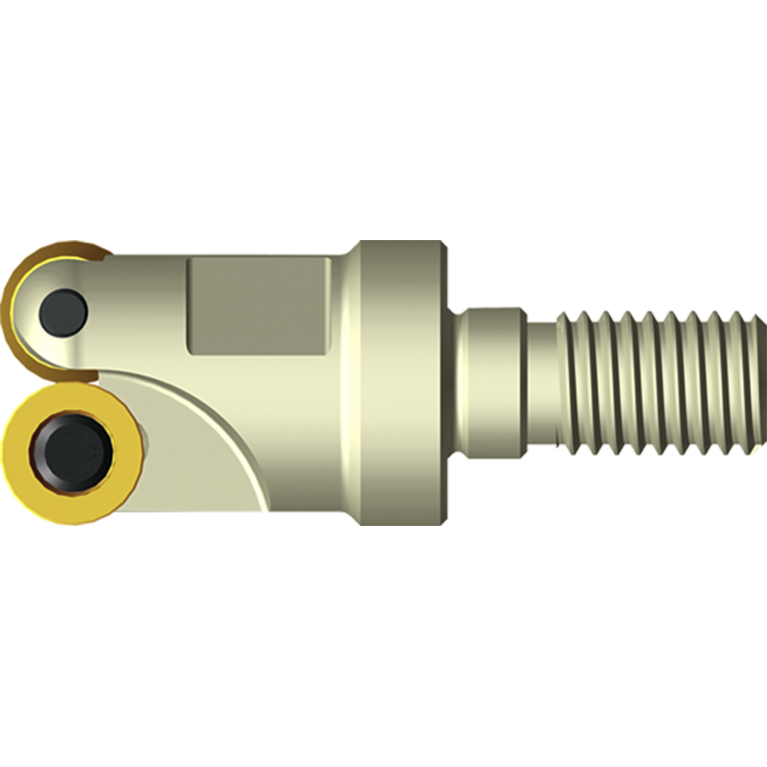

QCH-32-RD10-M16-03

Артикул: QCH-32-RD10-M16-03

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

15 Degree

B3A Inscribed circle diameter Pos. A

10 mm

BLDA Tool style code Position A

C1A Insert thickness Pos. A

3.97 mm

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

32 mm

Delivery state valid from

1.86 kg

DIN

SAZ01600105

DN Neck diameter

30 mm

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Indexable heads – QCH series

HAND Cutting direction

R - Right

ID Identifying order number

QCH-32-RD10-M16-03

Interface codes

J6 /

ISYC Subclass

307-05 - Single row rounded end mill

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SAZ

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0160

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAZ01600105

LPR Protruding length

45 mm

THSZMS Connection thread nominal size machine side

M16

Working process

FFO - Die milling,FPL - Face milling,FZI - Circular milling

WT Weight of item

0.183 kg

ZEFF Face effective cutting edge count
