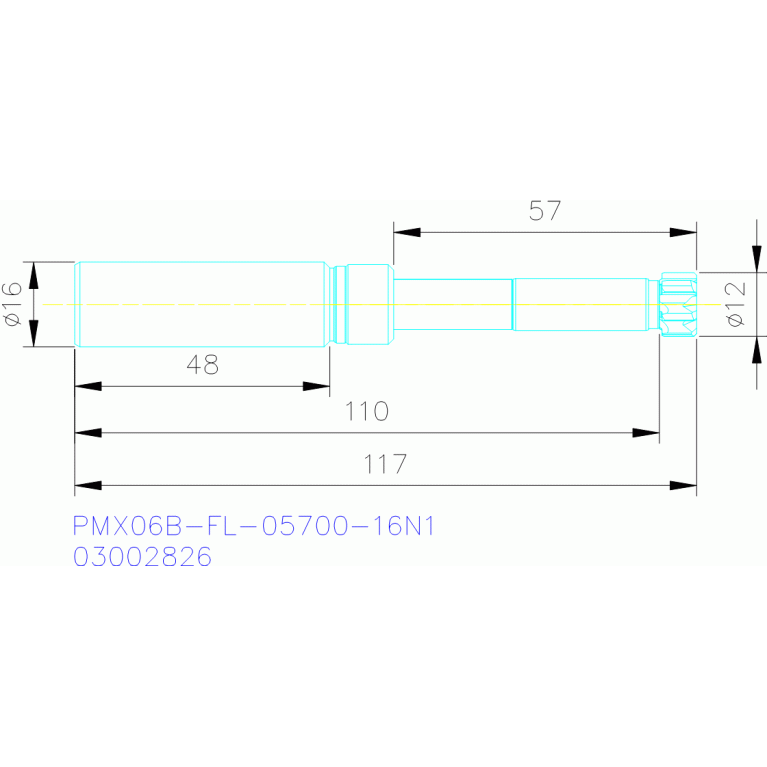

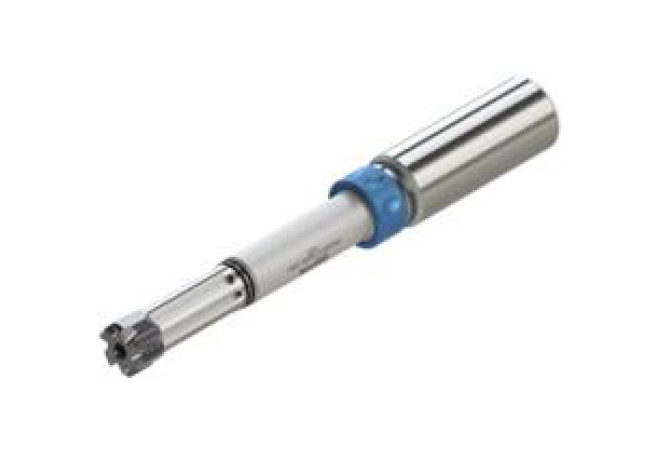

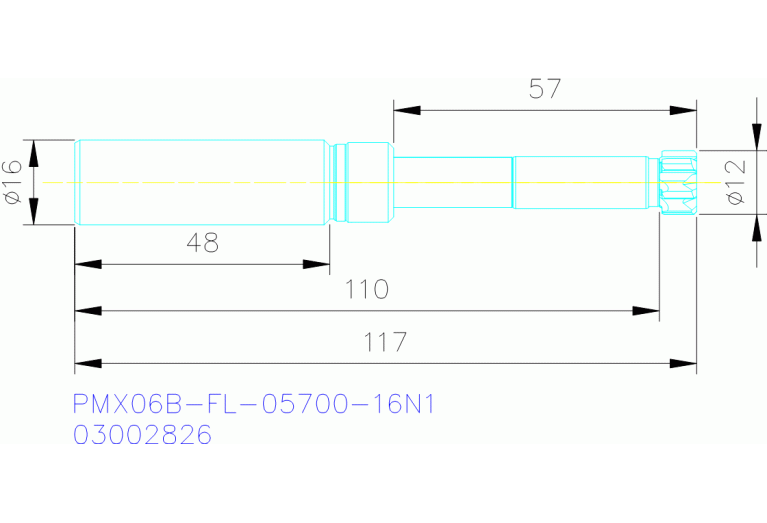

PMX06B-FL-05700-16N1

Артикул: 03002826

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

1 - Radial adjustment possible

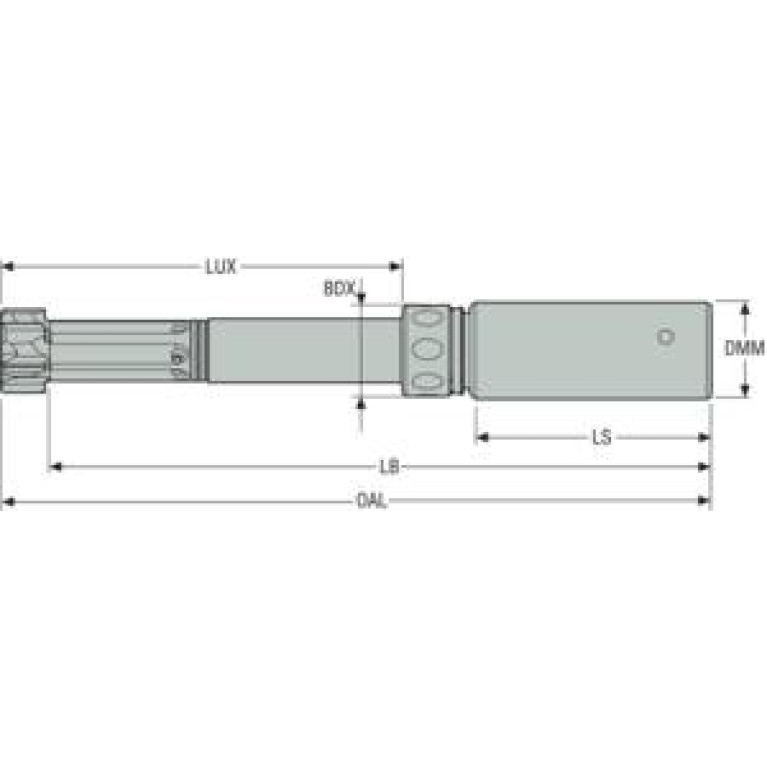

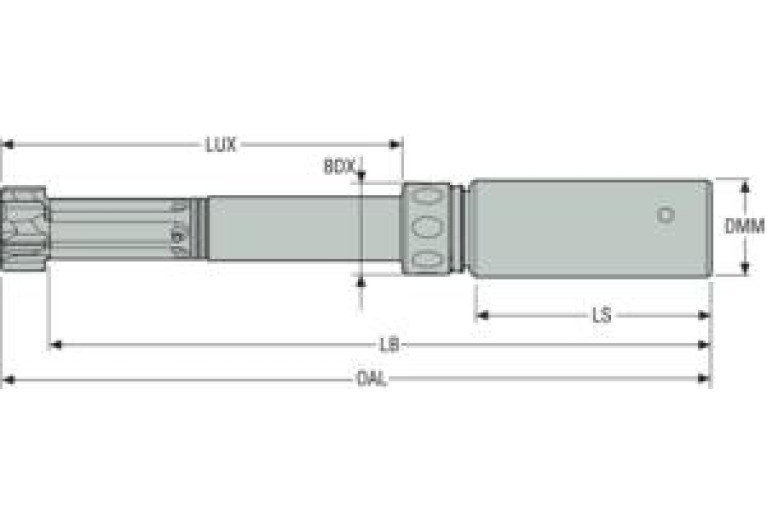

BDX Body diameter maximum

15 mm

COMPC Company code

SO - SECO Tools

DC Cutting diameter minimum

9.901 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter 1st step maximum

14.499 mm

Delivery state valid from

3/14/2020

DIN

ZYL01600105

FamilyProducts

PMX06B-FL-05700-16N1

HAND Cutting direction

R - Right

ID Technical product number

03002826

Interface codes

J6 / J61

ISO

ZYL01G1600h$06

ISYC Subclass

312-00 - Reamer with indexable inserts unspecified

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 ISO

ZYL01G1600h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01600105

LS Shank length

48 mm

LU Usable length

57 mm

Name Identifying order number

PMX06B-FL-05700-16N1

OAL Overall length

117 mm

Working process

No working processes available

WT Weight of item

0.0935 kg
