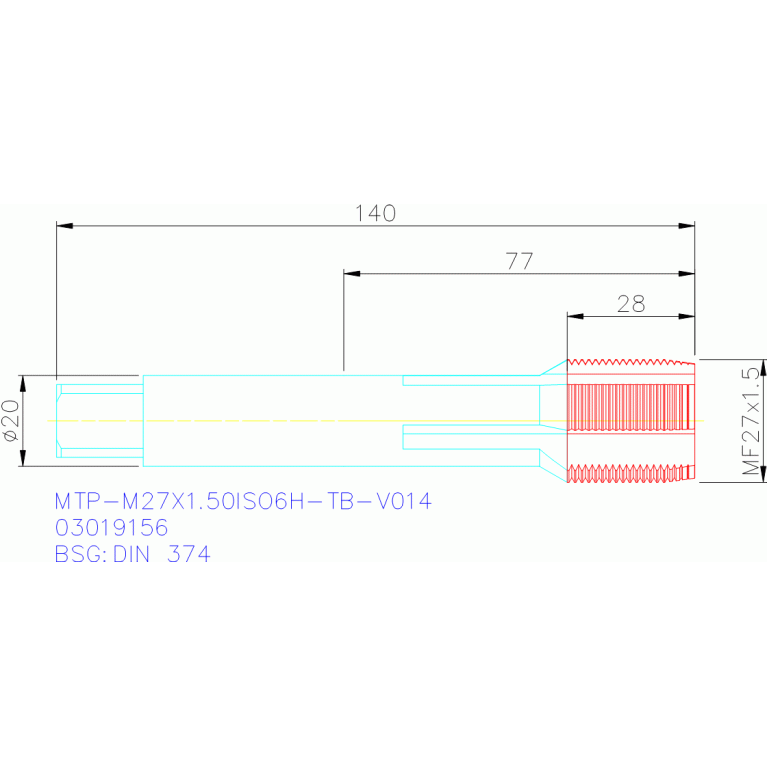

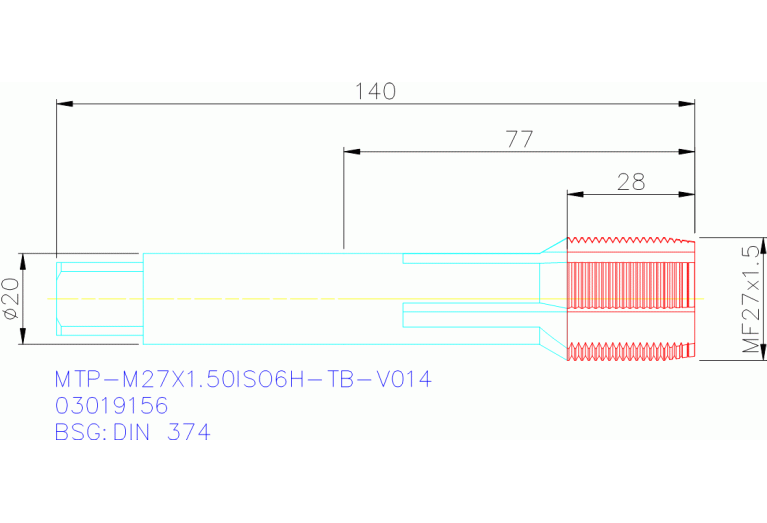

MTP-M27X1.50ISO6H-TB-V014

Артикул: 03019156

В наличии

В корзину

Описание

Характеристики

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

ZYL02002105

FamilyProducts

MTP-M27X1.50ISO6H-TB-V014

FHA Flute helix angle

0 Degree

FHH Flute helix hand

N - Hand of helix neutral

HAND Cutting direction

R - Right

ID Technical product number

03019156

Interface codes

J6 / J61

ISO

ZYL21G2000$$$$

ISYC Subclass

301-01 - Thread cutting tap with offset shank

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 ISO

ZYL21G2000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02002105

Name Identifying order number

MTP-M27X1.50ISO6H-TB-V014

NOF Flute count

OAL Overall length

140 mm

PLCD Gate diameter

25.5 mm

PLG Plug style

B - Kappa r 8°

STDNO Standard

DIN374

TCTR Thread tolerance class

TD Thread diameter

27 mm

THFT Thread form type

THL Thread cutting part length

28 mm

THOD Thread designation

MF27x1.5-6H

TP Thread pitch

1.5 mm

Working process

BG - Tapping

WT Weight of item

0.341 kg
