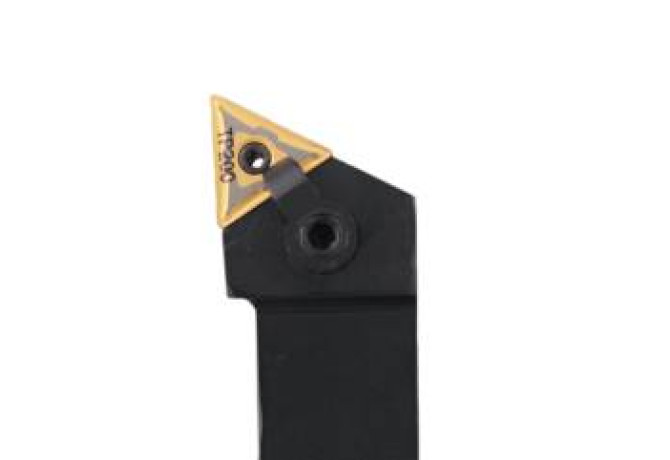

MTJNLS-24-6

Артикул: 00040979

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

VKT24240125

DIN CSW1

SO-TN2-3309N

EPSR Insert included angle

60 Degree

FamilyProducts

MTJNLS-24-6

GAMO Rake angle orthogonal

-5 Degree

GAMP Rake angle axial

-5 Degree

HAND Cutting direction

L - Left

ID Technical product number

00040979

Interface codes

J6 /

Interface codes CSW1

J41 /

ISISO A Indicator for ISO cutting plate Pos.A

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

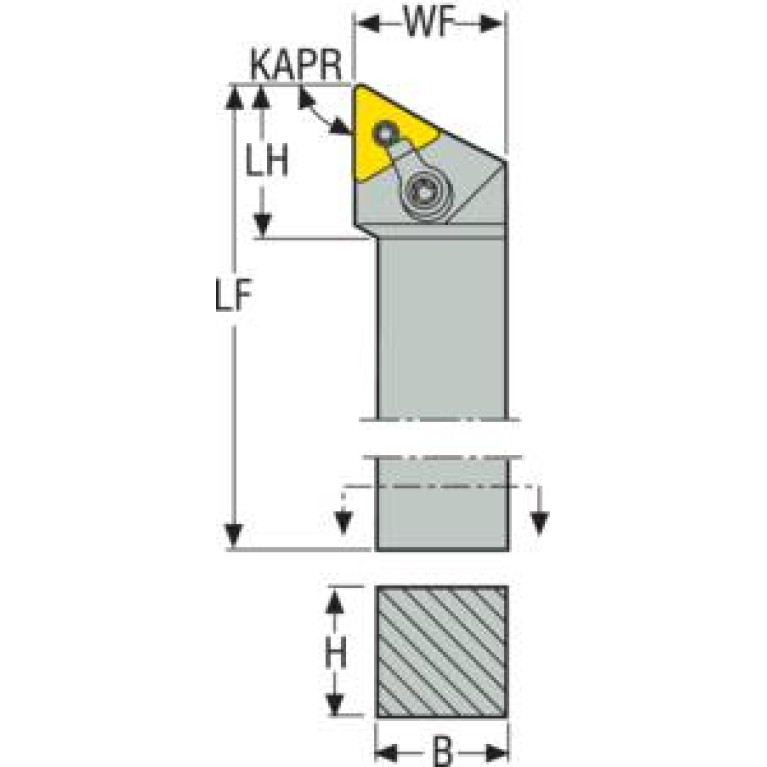

KAPR Tool cutting edge angle

93 Degree

LAMS Inclination angle

-5 Degree

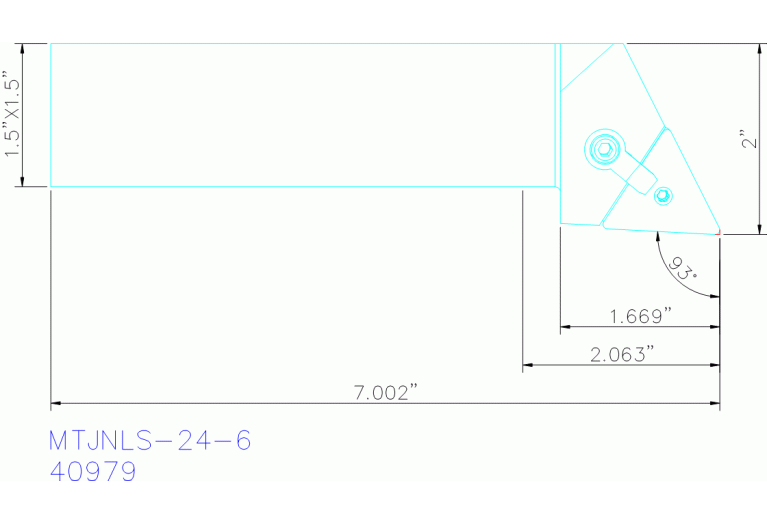

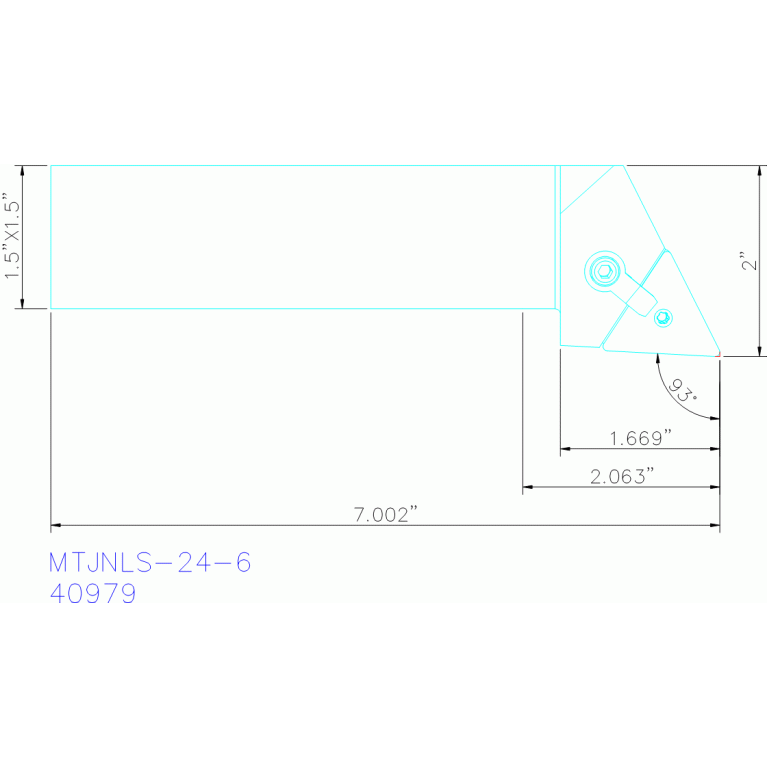

LF Functional length

178 mm

LH Head length

42.4 mm

LOC-03 B Shank width

38.1 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

2424

LOC-03 H Shank height

38.1 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT24240125

MIID Master insert identification

TN3309

MTP Clamping type code

M - Top and hole clamping, with cylindrical bore

Name Identifying order number

MTJNLS-24-6

STDDES Standard designation

MTJNLS-24-6

WF Functional width

50.8 mm

Working process

No working processes available

WT Weight of item

2.02 kg
