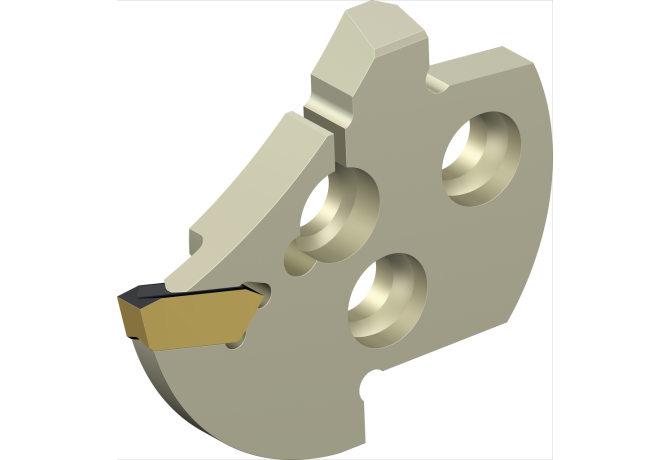

MSS-I20R05-GX09-2

Артикул: 5009756

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CDX Cutting depth maximum

5 mm

COMPC Company code

W - Walter

CW Cutting width

3 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

PMAR0200585

DIN CSW1

W-GX092000***EX**

DMIN Minimum bore diameter

25 mm

FamilyProducts

Grooving module – Internal grooving MSS...I...

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

R - Right

HF Functional height

7.6 mm

ID Technical product number

5009756

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

PMA05CR020$$$$

ISO CSW1

WR$$GX092000***EX**

ISYC Subclass

314-00 - Cartridge for indexable insert unspecified

KAPR Tool cutting edge angle

90 Degree

LAMS Inclination angle

0 Degree

LF Functional length

23 mm

LOC-03 B Shank width

3.8 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

PMA Prism mounting

LOC-03 CCUMS Unit base

8 non-dimensional size

LOC-03 CZCMS Size code

R020

LOC-03 DCONMS Diameter

20 mm

LOC-03 ISO

PMA05CR020$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

PMAR0200585

LPR Protruding length

11.5 mm

MTP Clamping type code

C - Top clamping without bore

Name Identifying order number

MSS-I20R05-GX09-2

OAL Overall length

23 mm

WB Body width

2 mm

Working process

DDI - Internal turning,DEI - Grooving,DFI - Internal form turning,DIE - Grooving

WT Weight of item

0.021 kg
