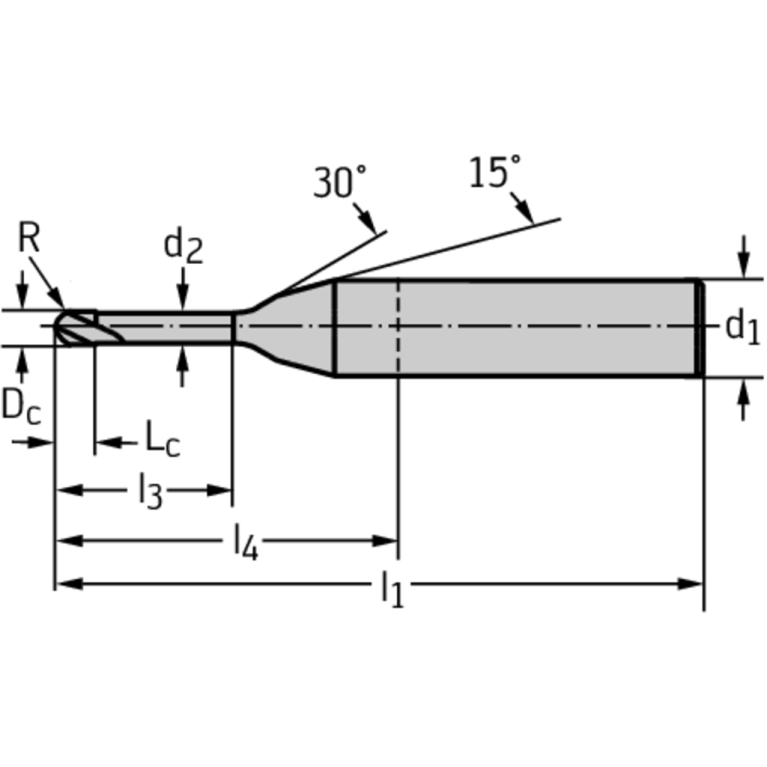

MC480-02.0A2MB-WB10TG

Артикул: 7255067

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

1.6 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TiAlSiN

COMPC Company code

W - Walter

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

2 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL00400105

DN Neck diameter

1.97 mm

FamilyProducts

Solid carbide ball-nose copy milling cutters MC480

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

1.5 Degree

GAMP Rake angle axial

1.5 Degree

GRDMFG Grade manufacturers designation

WB10TG

HAND Cutting direction

R - Right

ID Technical product number

7255067

Interface codes

J6 / J61

ISO

ZYL01F4000h$05

ISYC Subclass

303-06 - Ball-nosed end mill

LF Functional length

50 mm

LN Neck length

2.974 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0040

LOC-03 DCONMS Diameter

4 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$05

LOC-03 ISO

ZYL01F4000h$05

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00400105

LPR Protruding length

22 mm

LS Shank length

28 mm

Materials

Name Identifying order number

MC480-02.0A2MB-WB10TG

OAL Overall length

50 mm

PRFRAD Profile radius 1

1 mm

RMPX Ramping angle maximum

3 Degree

RPMX Rotational speed maximum

80000 1/min

STDLET Standard letter to the standard number

STDNO Standard

PWZ-NORM MINI

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling,FFO - Die milling,FSE - Counter-sinking

WT Weight of item

0.014 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
