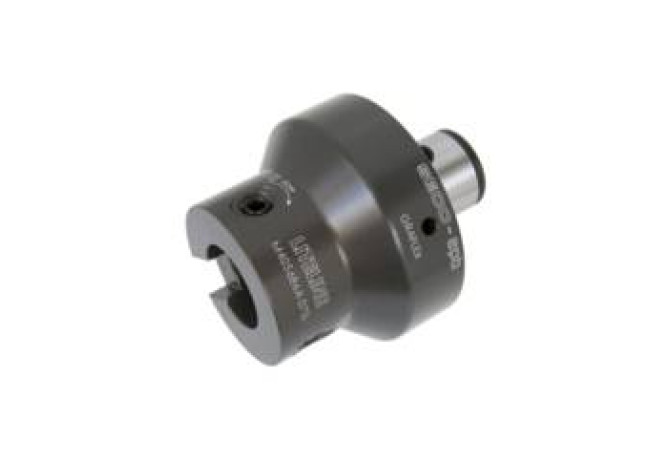

M4037A5A075L

Артикул: 02690000

В наличии

В корзину

Описание

Характеристики

BLQ Balance quality code

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

GMS

CCUWS Connection code unit base

COMPC Company code

SO - SECO Tools

CZCWS Connection size code

0550

DCONWS Diameter

28 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

GMS09000115

FamilyProducts

M4037A5A075L

HAND Cutting direction

N - Neutral

ID Technical product number

02690000

Interface codes

J6 / J61

ISO

GMS01G9000$$$$

ISYC Subclass

401-04 - Reducer, primary design

LB Body length 1

26 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

GMS Graflex modular connection SECO

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0550

LOC-01 DCONWS Diameter

28 mm

LOC-01 ISO

GMS01G5500$$$$

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

GMS05500115

LOC-02 DCONWS Diameter

28 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

SO-GMS05A001M0

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

GMS Graflex modular connection SECO

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0900

LOC-03 ISO

GMS01G9000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

GMS09000115

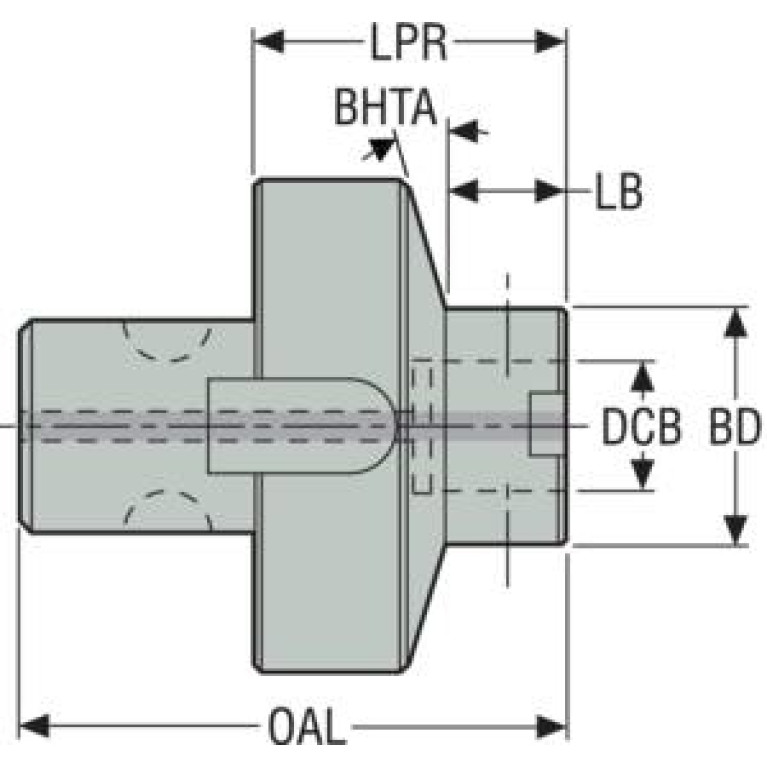

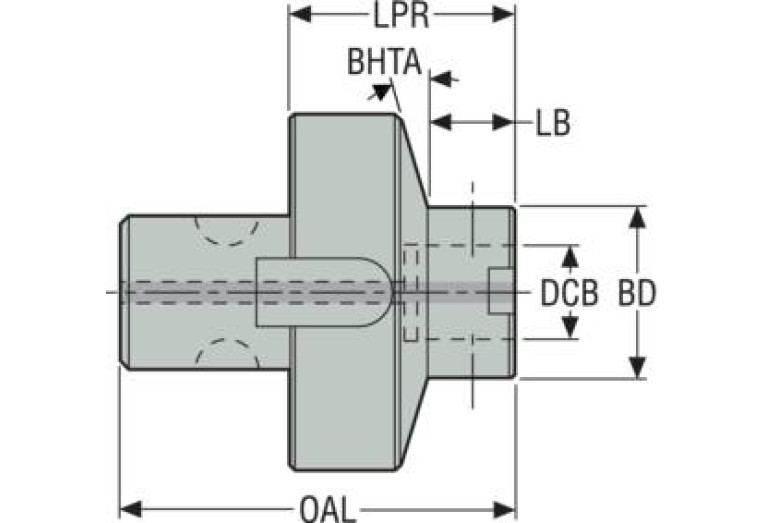

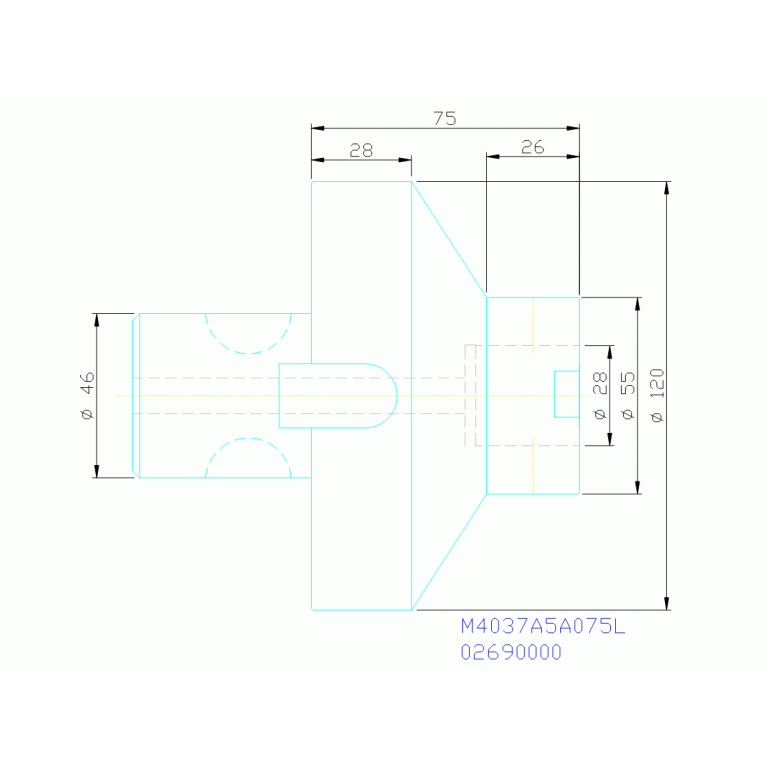

LPR Protruding length

75 mm

Name Identifying order number

M4037A5A075L

OAL Overall length

125 mm

TA Taper angle

33 Degree

WT Weight of item

1.93 kg

Диаметр корпуса (BD) / Body diameter (BD)

55 mm
