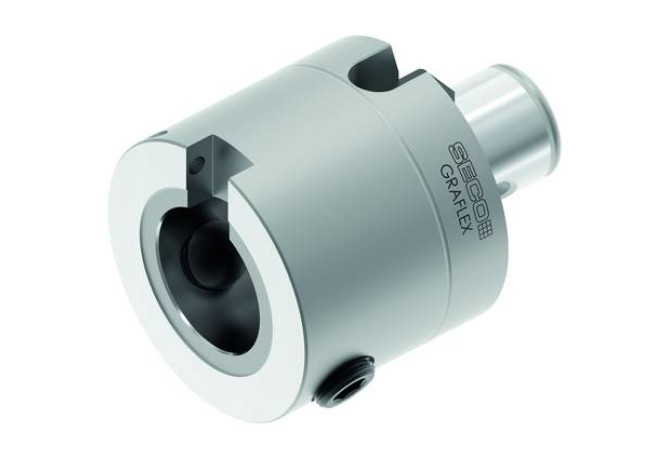

Главная Каталог продукции Toolunited 10 M40356

M40356

M40356 M40356 M40356 M40356

M40356

SECO Tools
Артикул: 00056791
В наличии
В корзину
Описание
Характеристики

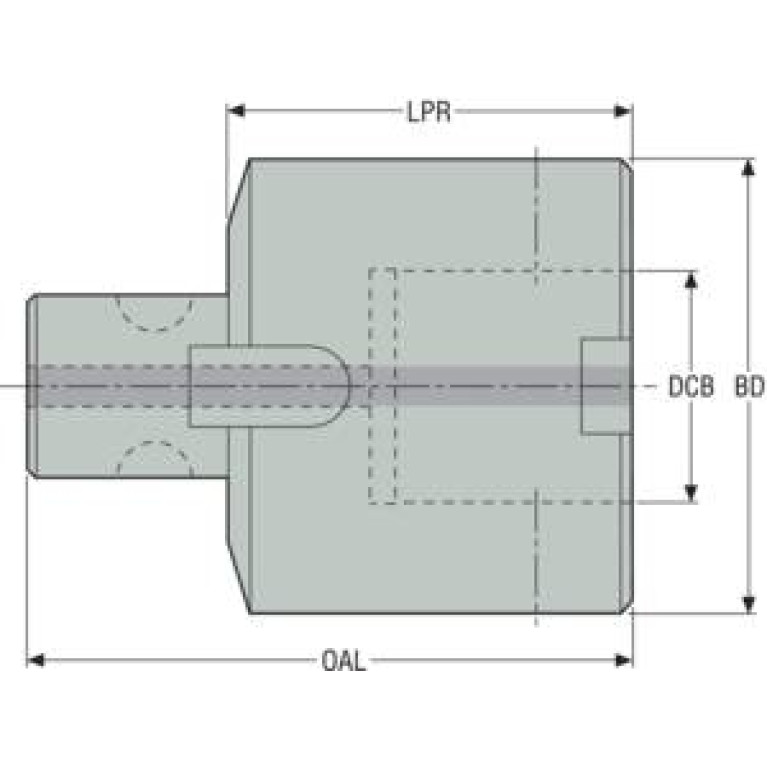

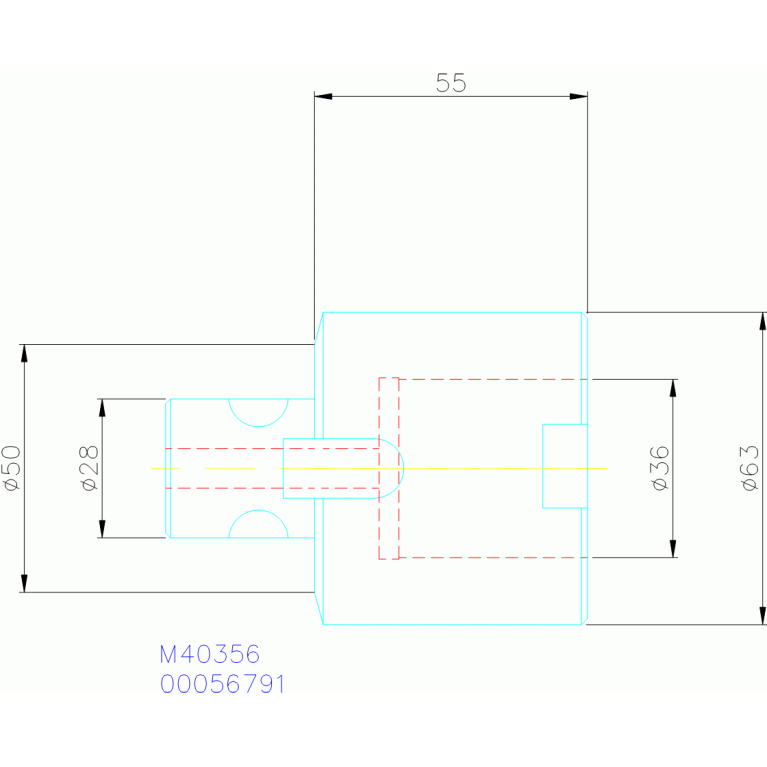

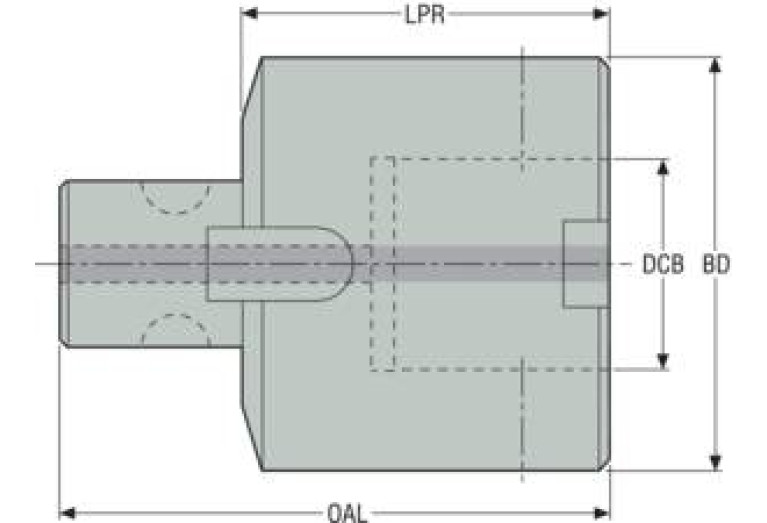

BD Body diameter
63 mm
BLQ Balance quality code
PB
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
GMS
CCUWS Connection code unit base
1
COMPC Company code
SO - SECO Tools
CZCWS Connection size code
0630
DCONWS Diameter
36 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
GMS05000115
FamilyProducts
M40356
HAND Cutting direction
N - Neutral
ID Technical product number
00056791
Interface codes
J6 / J61
ISO
GMS01G5000$$$$
ISYC Subclass
401-05 - Reducer, reverse design
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
GMS Graflex modular connection SECO
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0630
LOC-01 DCONWS Diameter
36 mm
LOC-01 ISO
GMS01G6300$$$$
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
GMS06300115
LOC-02 DCONWS Diameter
36 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
SO-GMS006001M0
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
GMS Graflex modular connection SECO
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0500
LOC-03 ISO
GMS01G5000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
GMS05000115
LPR Protruding length
55 mm
Name Identifying order number
M40356
OAL Overall length
85 mm
WT Weight of item
1.08 kg
