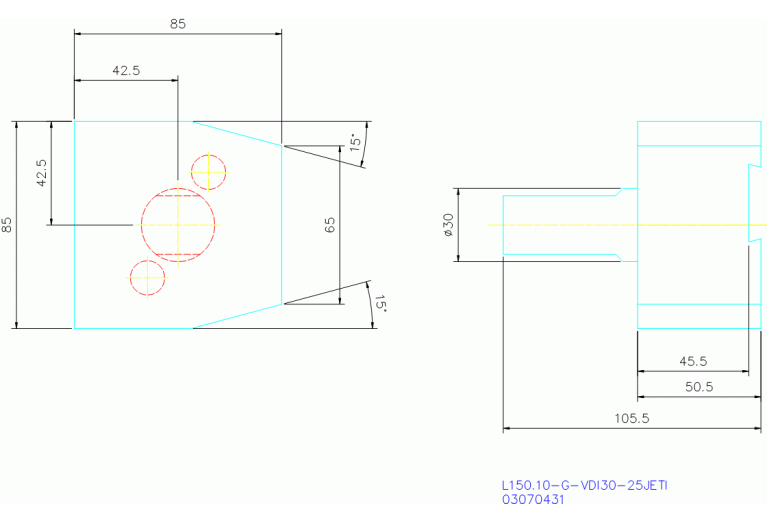

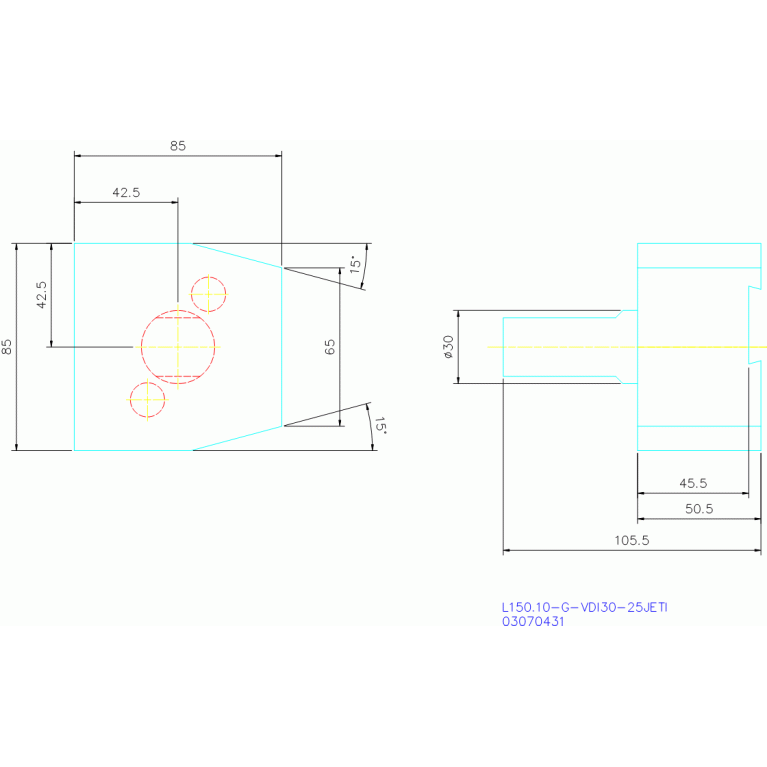

L150.10-G-VDI30-25JETI

Артикул: 03070431

В наличии

В корзину

Описание

Характеристики

COMPC Company code

SO - SECO Tools

CZCWS Connection size code

150

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

FamilyProducts

L150.10-G-VDI30-25JETI

HAND Cutting direction

N - Neutral

ID Technical product number

03070431

Interface codes

ISYC Subclass

401-00 - Adaptive item converter, extender, reducer unspecified

LF Functional length

45.5 mm

LOC-01 CZCWS Connection size code

150

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SO-SO 150 10-25N

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYV cylindrical shank VDI type (serrated)

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 DCONMS Diameter

30 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

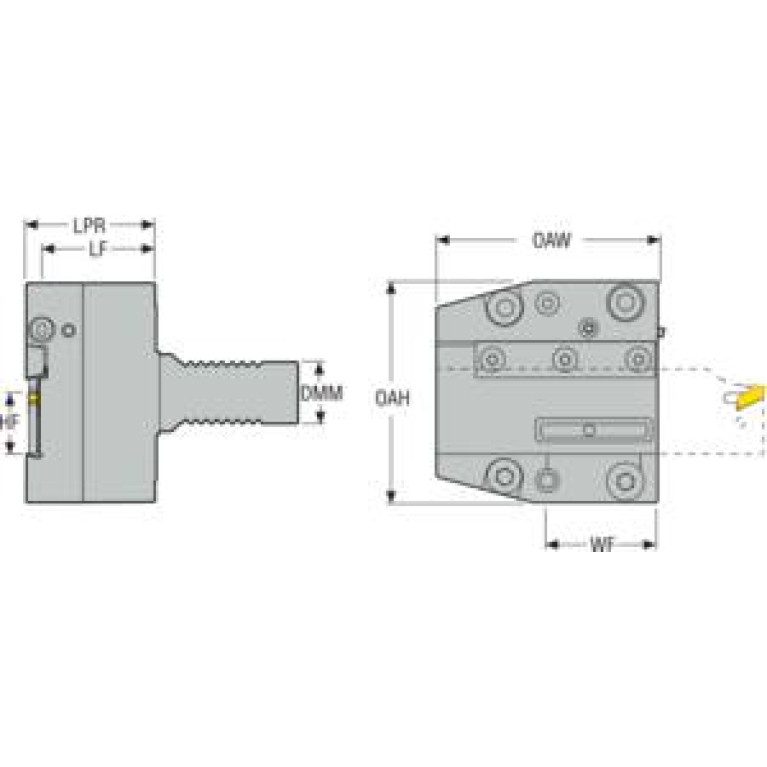

LPR Protruding length

50.5 mm

Name Identifying order number

L150.10-G-VDI30-25JETI

OAW Overall width

85 mm

WF Functional width

42.5 mm

WT Weight of item

2.842 kg
