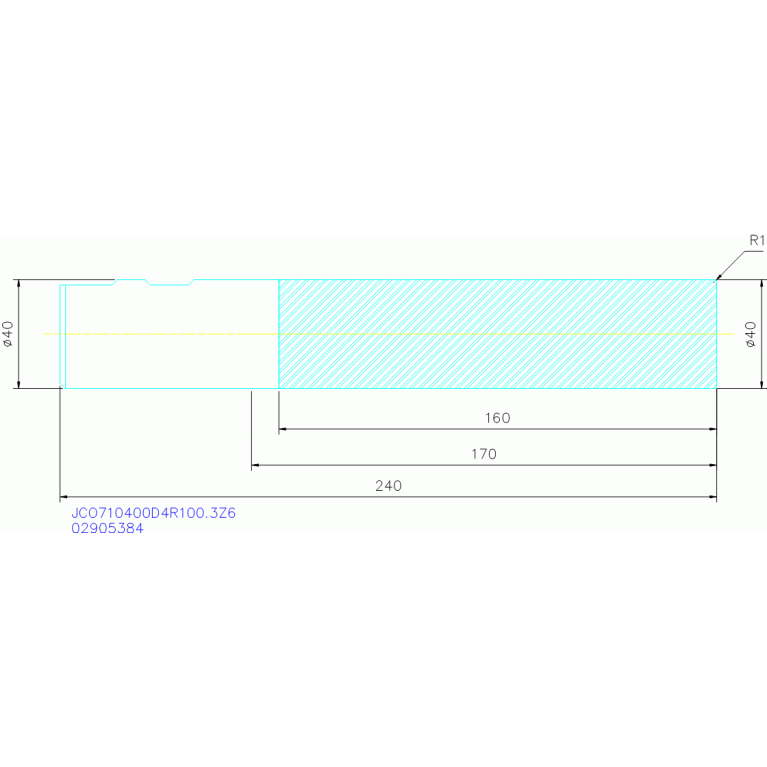

JCO710400D4R100.3Z6
JCO710400D4R100.3Z6
Артикул:
02905384
В наличии
Характеристики
APMX Depth of cut maximum
160 mm
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
40 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
ZYL04001005
F71 Number of corner designs
1
FamilyProducts
JCO710400D4R100.3Z6
FHA Flute helix angle
35 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
35 Degree
GAMP Rake angle axial
12 Degree
HAND Cutting direction
R - Right
ID Technical product number
02905384
Interface codes
J6 / J61
ISO
ZYL10G4000h$06
ISYC Subclass
303-01 - Non-centre cutting end mill
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03 ISO
ZYL10G4000h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL04001005
LS Shank length
70 mm
Name Identifying order number
JCO710400D4R100.3Z6
OAL Overall length
240 mm
RE Corner radius
1 mm
Working process
No working processes available
ZEFP Peripheral effective cutting edge count
6
