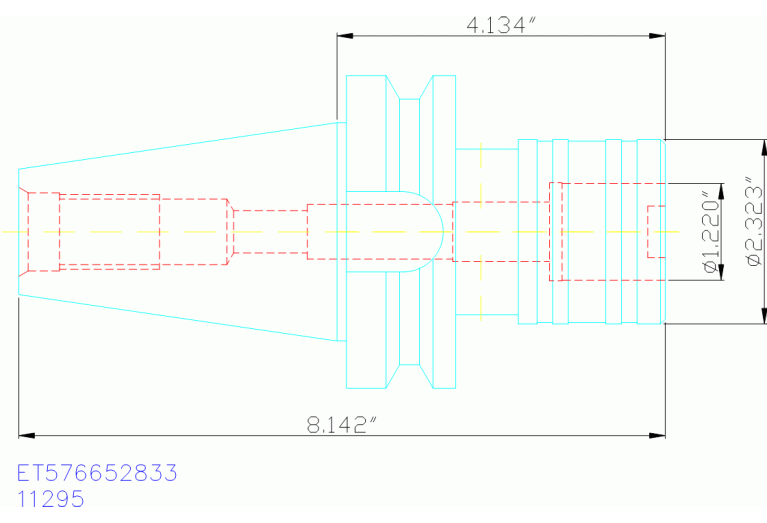

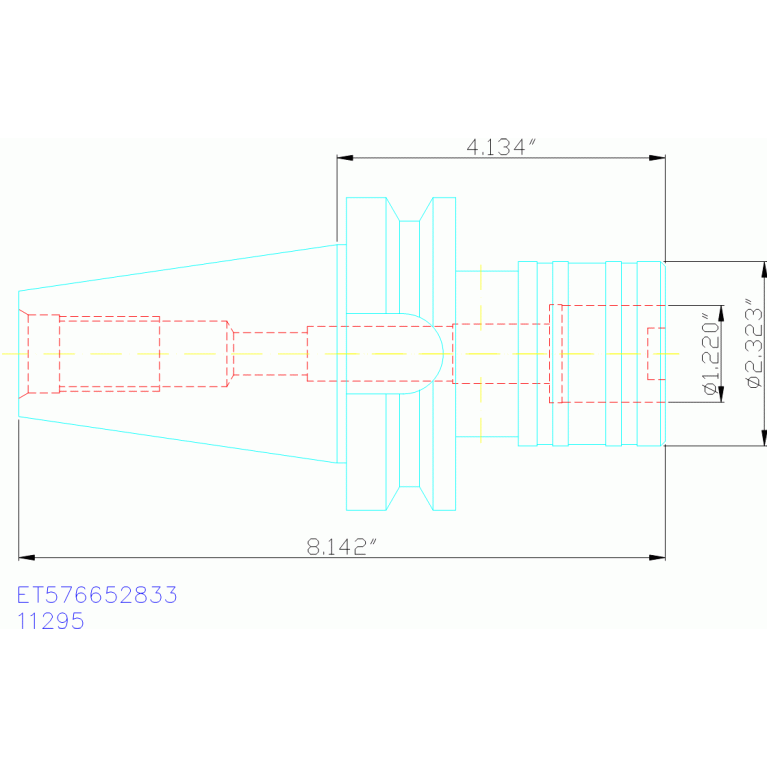

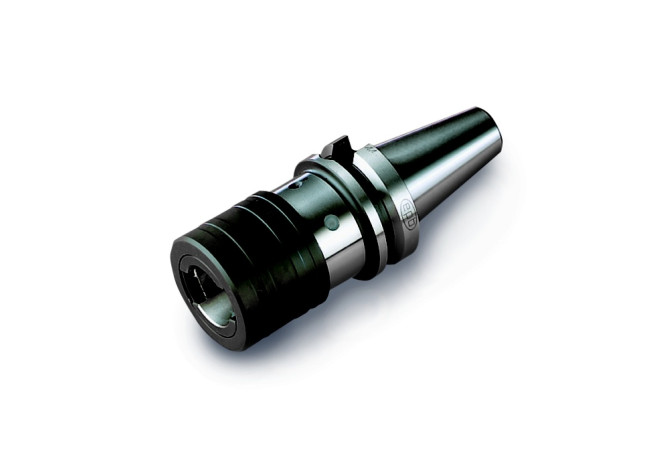

Главная Каталог продукции Toolunited 10 ET576652833

ET576652833

Артикул: 75041418

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

2 - Axial adjustment possible

BD Body diameter

59 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

SWB

CCUWS Connection code unit base

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

CZCWS Connection size code

0310

DCONWS Diameter

31 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

6/7/2017

DIN

SKG05005085

FamilyProducts

ET576652833

HAND Cutting direction

N - Neutral

ID Technical product number

75041418

Interface codes

J6 /

ISYC Subclass

401-01 - Converter, rotationally symmetric

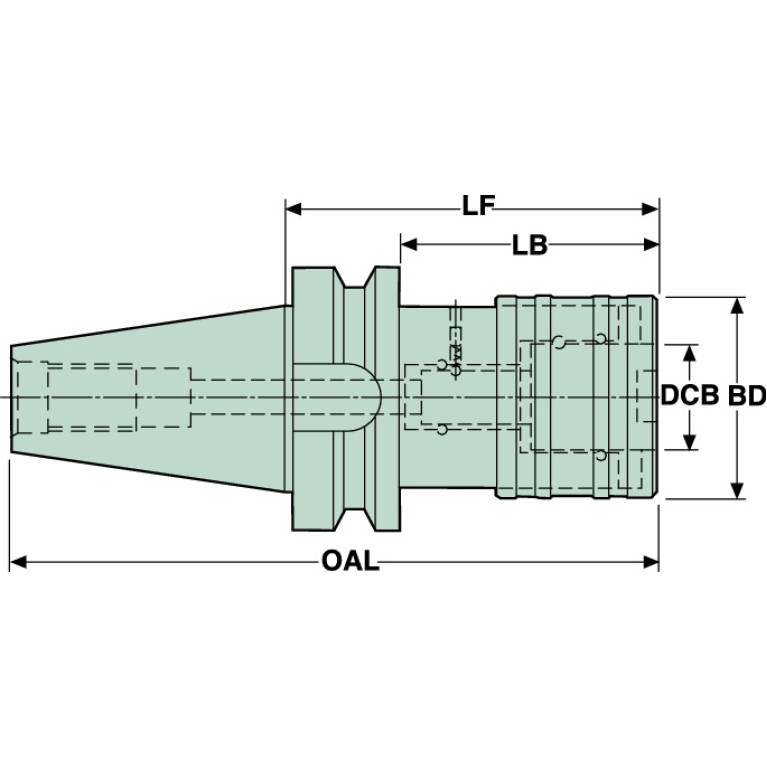

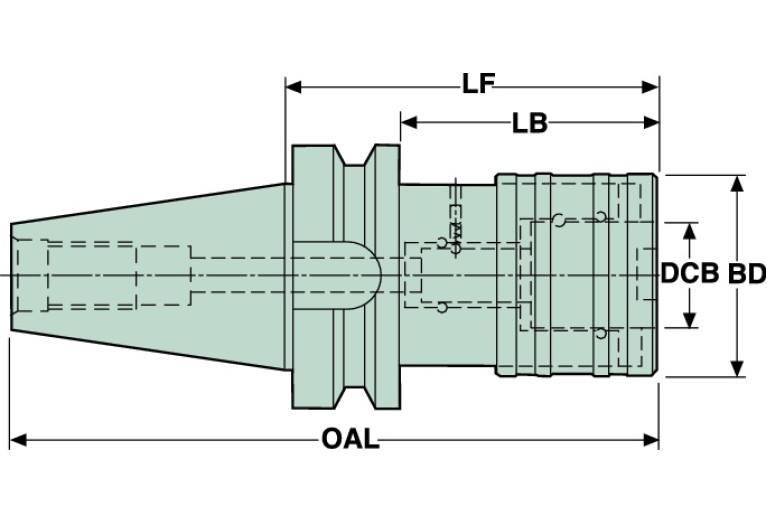

LB Body length 1

67 mm

LF Functional length

105 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

SWB Quick change adapter BILZ

LOC-01 CCUWS Connection code unit base

0 Metric

LOC-01 CZCWS Connection size code

0310

LOC-01 DCONWS Diameter

31 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SWB03100005

LOC-02 DCONWS Diameter

31 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

SO-SWB003000M0

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0500

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05005085

Name Identifying order number

ET576652833

OAL Overall length

206.8 mm

WT Weight of item

4.42 kg
