Главная Каталог продукции Toolunited 10 EM930640128150

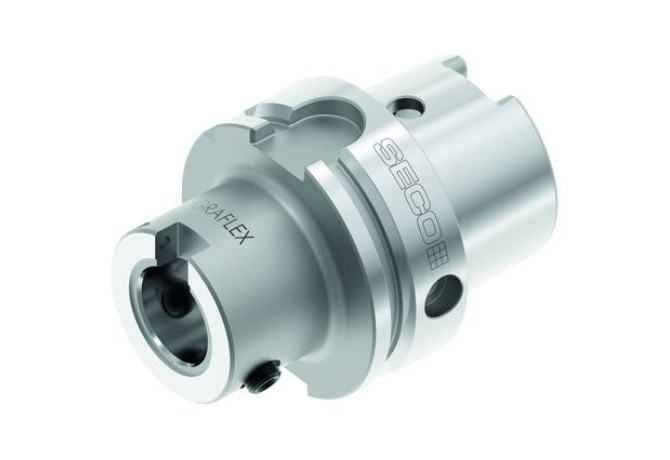

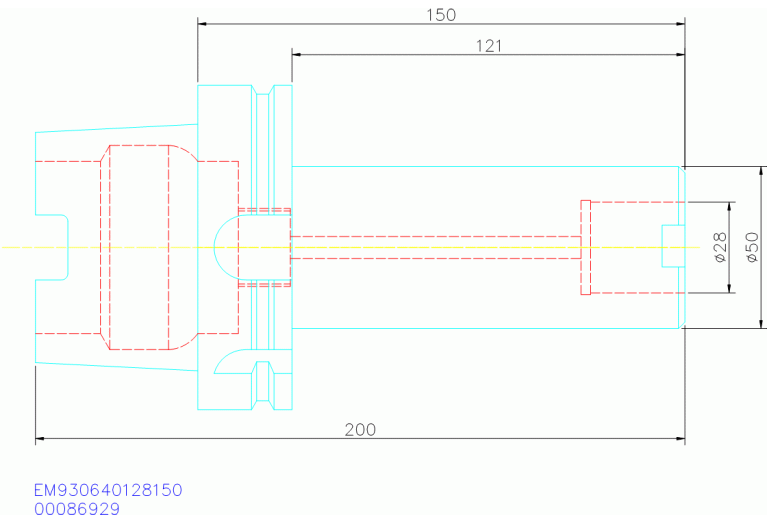

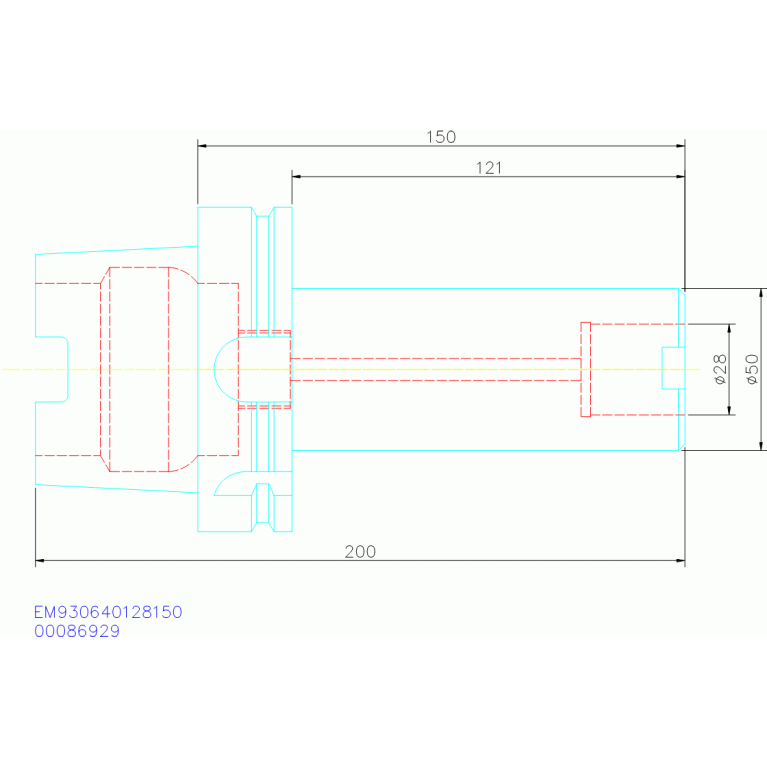

EM930640128150

Артикул: 00086929

В наличии

В корзину

Описание

Характеристики

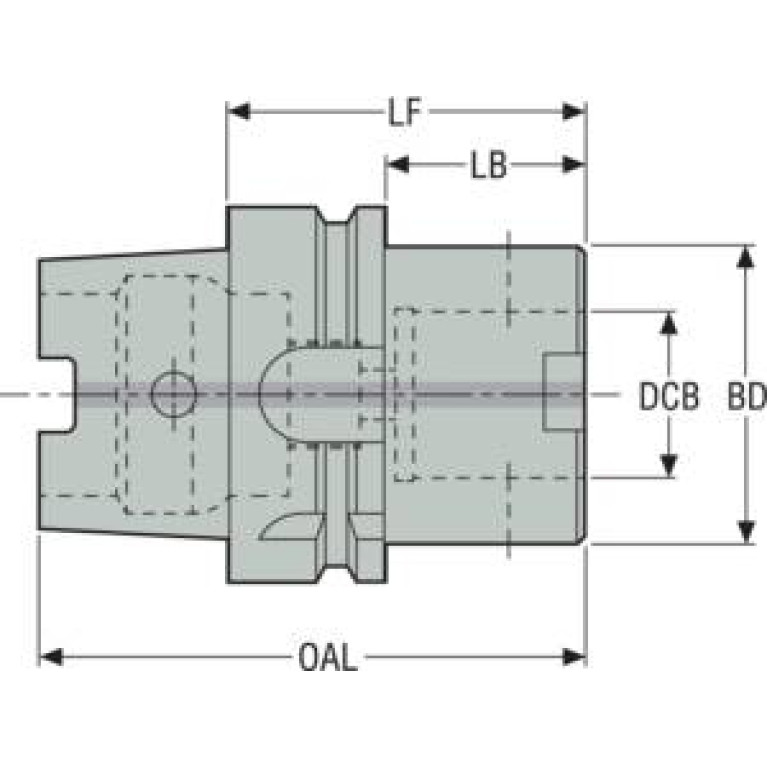

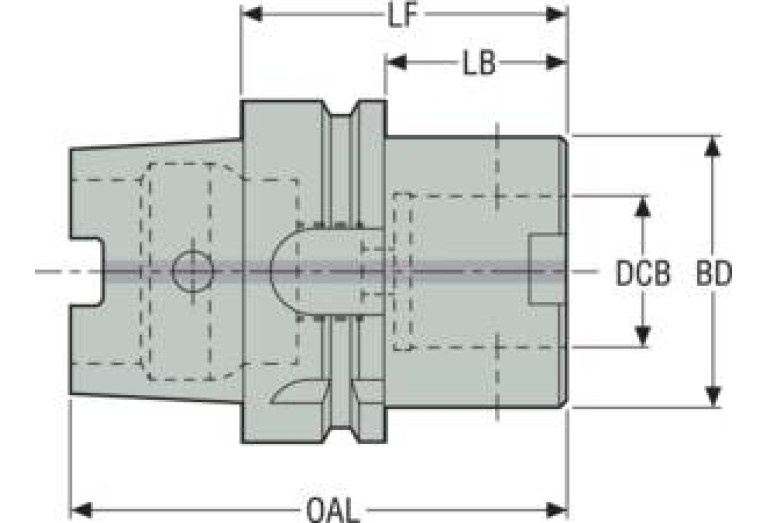

BD Body diameter

50 mm

BLQ Balance quality code

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

GMS

CCUWS Connection code unit base

COMPC Company code

SO - SECO Tools

CZCWS Connection size code

0500

DCONWS Diameter

28 mm

DCP Data chip provision

1 - With data chip

Delivery state valid from

3/14/2020

DIN

HSK10000185

FamilyProducts

EM930640128150

HAND Cutting direction

N - Neutral

ID Technical product number

00086929

Interface codes

J6 / J61

ISO

HSK01C1000$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

121 mm

LF Functional length

150 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

GMS Graflex modular connection SECO

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0500

LOC-01 DCONWS Diameter

28 mm

LOC-01 ISO

GMS01G5000$$$$

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

GMS05000115

LOC-02 DCONWS Diameter

28 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

SO-GMS005001M0

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

HSK Hollow taper shank

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

1000

LOC-03 ISO

HSK01C1000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK10000185

Name Identifying order number

EM930640128150

OAL Overall length

200 mm

WT Weight of item

3.675 kg
