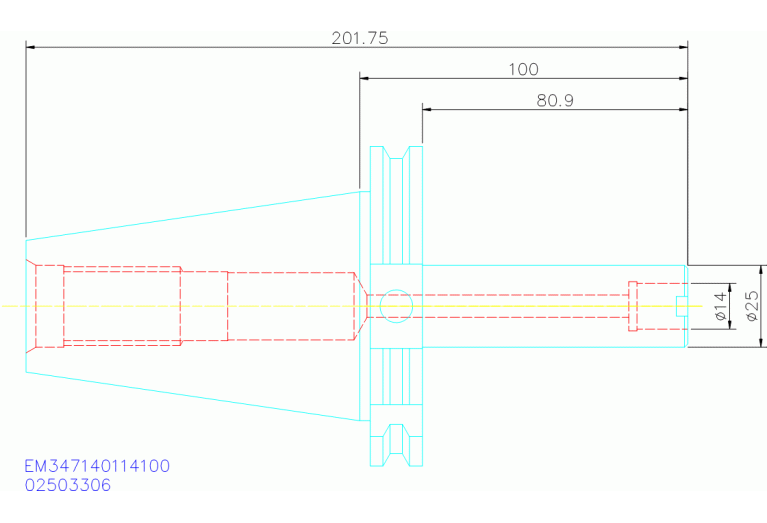

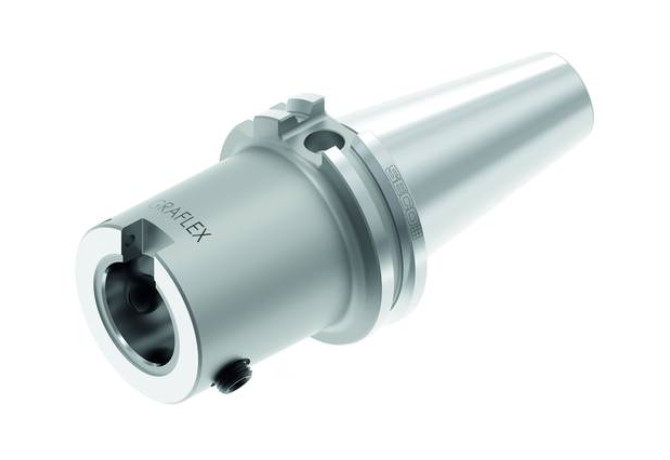

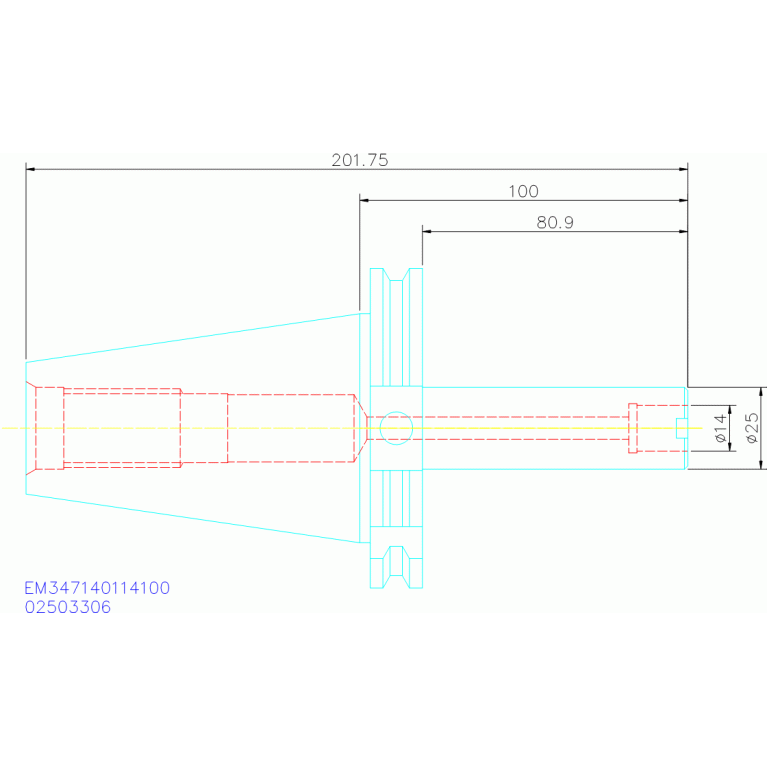

Главная Каталог продукции Toolunited 10 EM347140114100

EM347140114100

Артикул: 02503306

В наличии

В корзину

Описание

Характеристики

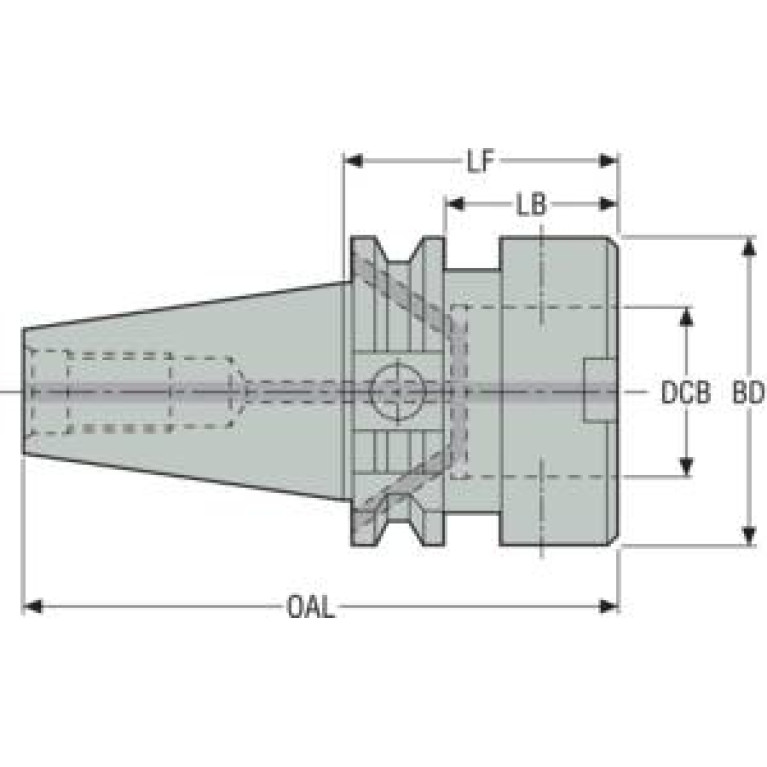

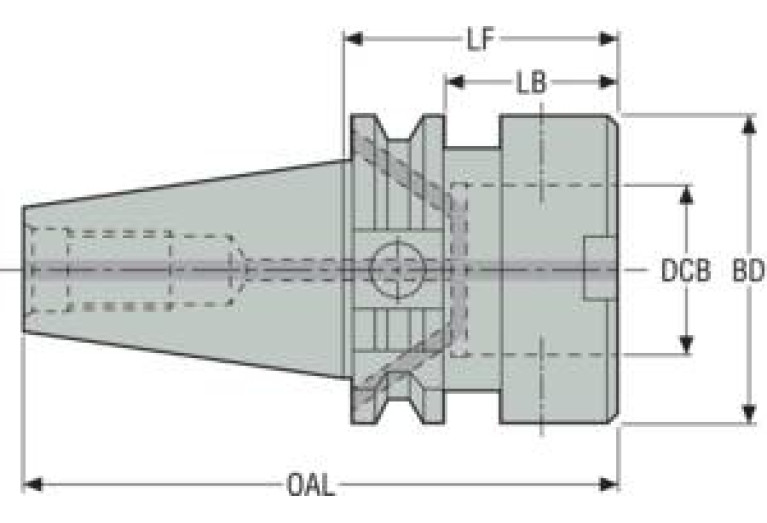

BD Body diameter

25 mm

BLQ Balance quality code

G6.3

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

GMS

CCUWS Connection code unit base

CNSC Coolant entry style code

7 - Coolant entry, decentral and axially concentric

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0250

DCONWS Diameter

14 mm

DCP Data chip provision

1 - With data chip

Delivery state valid from

3/14/2020

DIN

SKG05001795

FamilyProducts

EM347140114100

HAND Cutting direction

N - Neutral

ID Technical product number

02503306

Interface codes

J6 / J61

ISO

SKG17C0500$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

80.9 mm

LF Functional length

100 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

GMS Graflex modular connection SECO

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0250

LOC-01 DCONWS Diameter

14 mm

LOC-01 ISO

GMS01G2500$$$$

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

GMS02500115

LOC-02 DCONWS Diameter

14 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

SO-GMS002001M0

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0500

LOC-03 ISO

SKG17C0500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05001795

Name Identifying order number

EM347140114100

OAL Overall length

201.7 mm

WT Weight of item

2.773 kg
