Главная Каталог продукции Toolunited 10 E9306560010200

E9306560010200

Артикул: 02845505

В наличии

В корзину

Описание

Характеристики

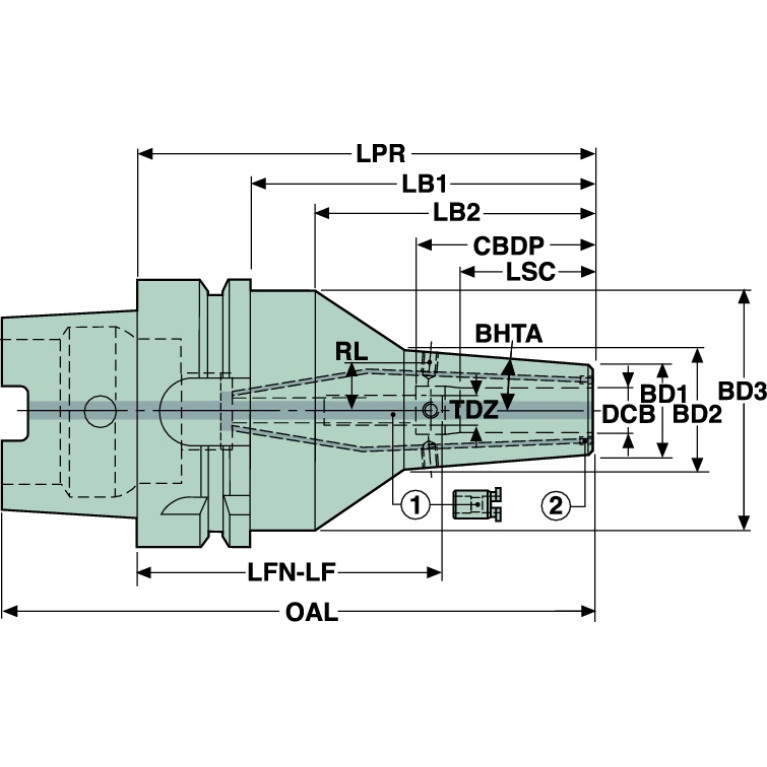

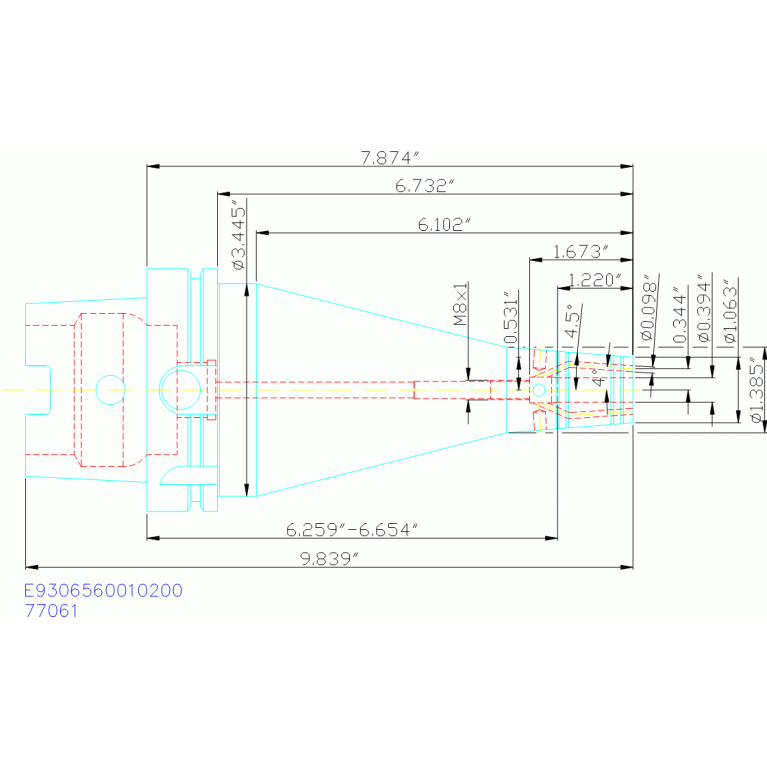

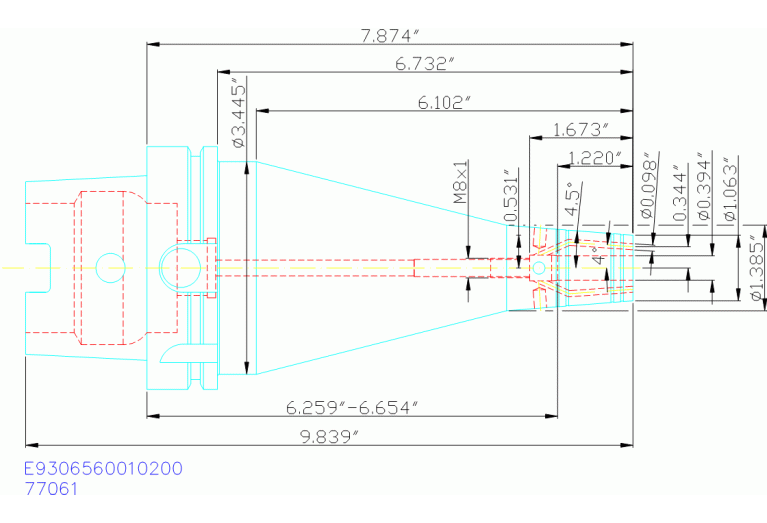

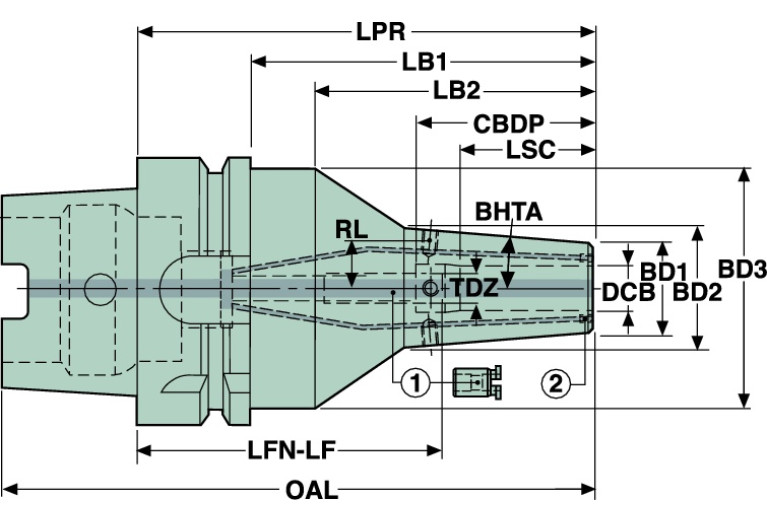

BD Body diameter

35.2 mm

BD Body diameter 2

35.2 mm

BD Body diameter 3

87.5 mm

BLQ Balance quality code

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

COMPC Company code

SO - SECO Tools

CZCWS Connection size code

0100

DCINTF Interference cutting diameter

27 mm

DCONWS Diameter

10 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

6/7/2017

DIN

HSK10000185

FamilyProducts

E9306560010200

HAND Cutting direction

N - Neutral

ID Technical product number

02845505

Interface codes

J6 /

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

171 mm

LF Functional length

169 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

0 Metric

LOC-01 CZCWS Connection size code

0100

LOC-01 DCONWS Diameter

10 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL01000105

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

HSK Hollow taper shank

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

1000

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK10000185

LPR Protruding length

200 mm

LSCX Clamping length maximum

31 mm

Name Identifying order number

E9306560010200

OAL Overall length

250 mm

TA Taper angle

4.5 Degree

THSZWS Connection thread nominal size workpiece side

M8x1

WT Weight of item

5.5 kg
