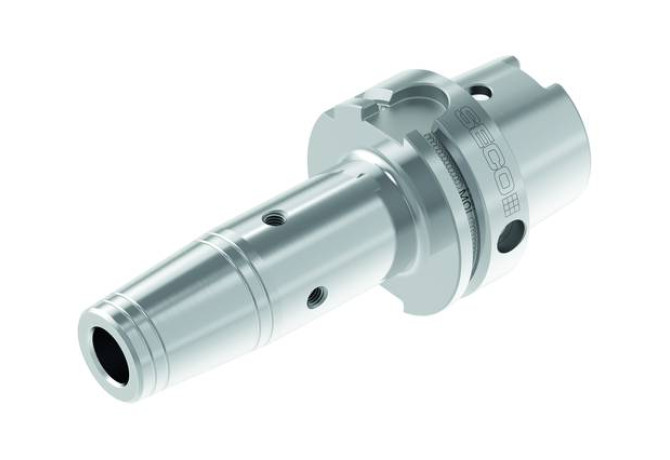

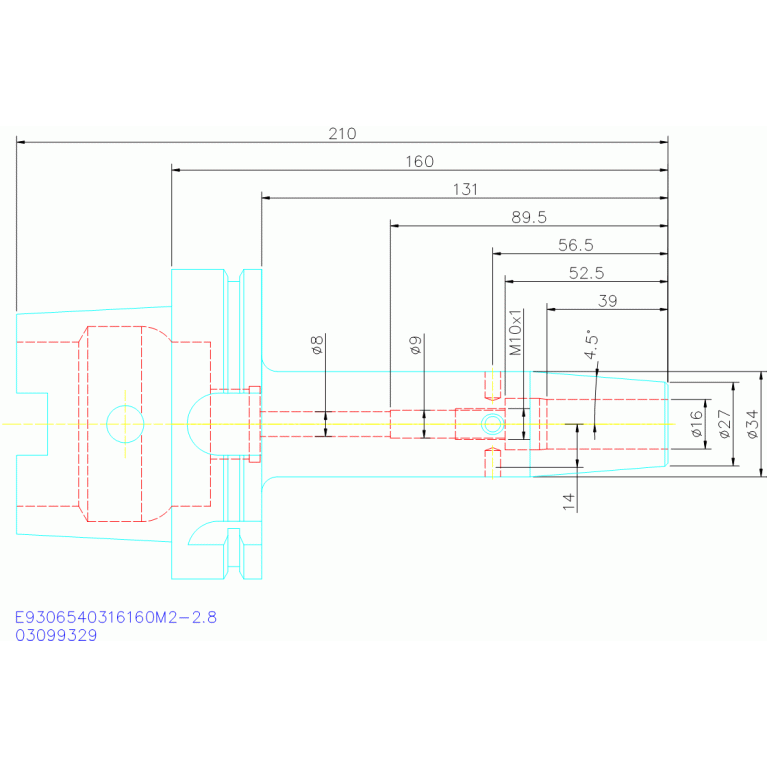

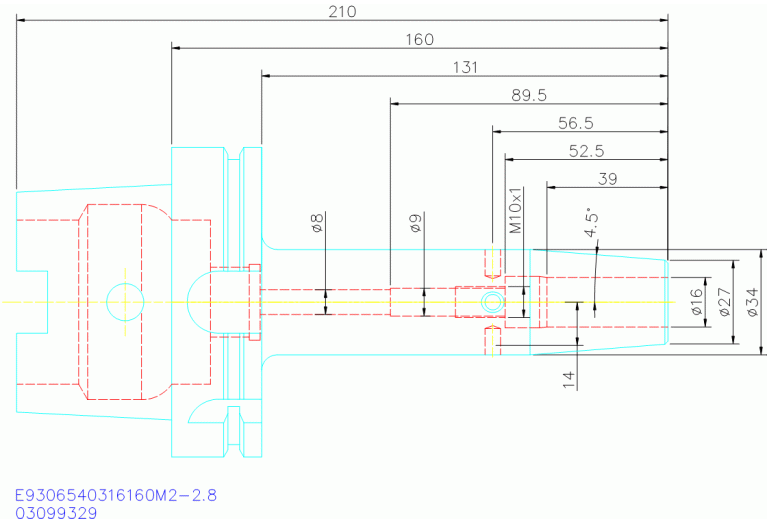

E9306540316160M2-2.8

Артикул: 03099329

В наличии

В корзину

Описание

Характеристики

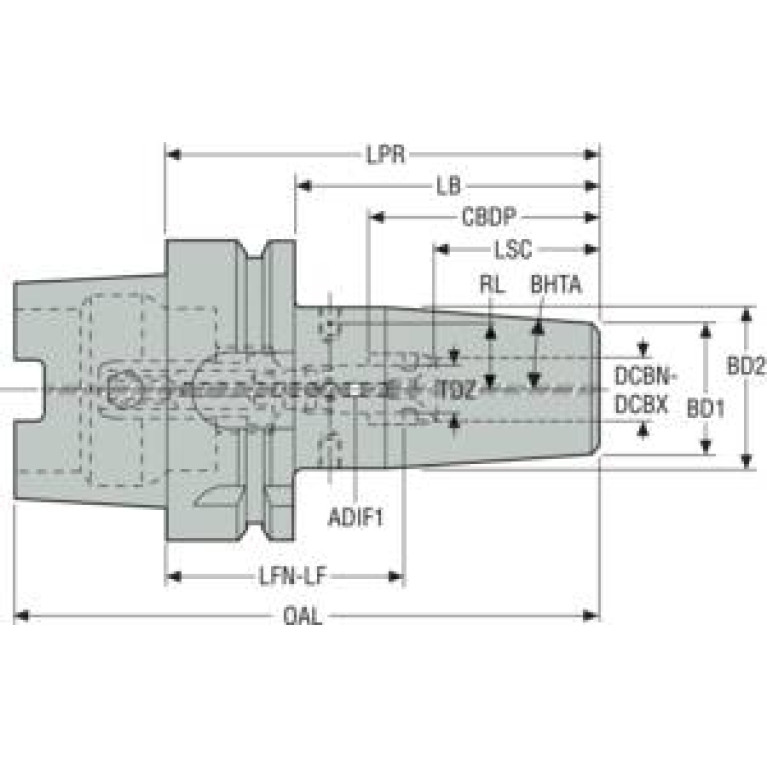

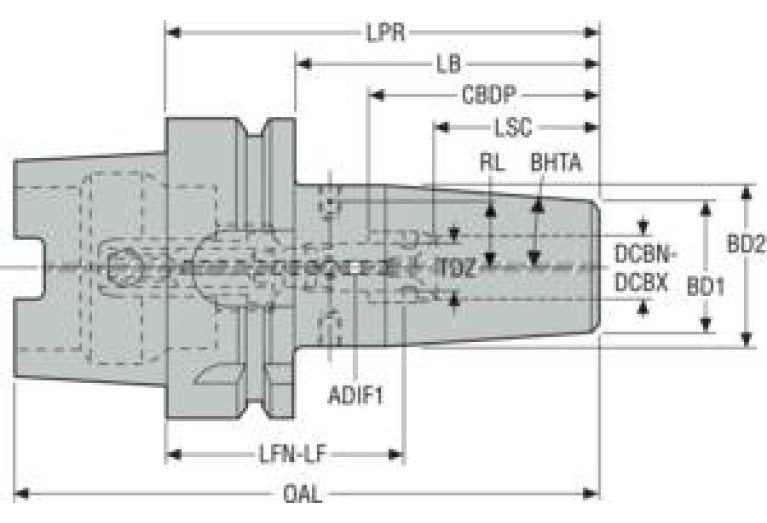

ADJBY Adjustment property

2 - Axial adjustment possible

BD Body diameter

34 mm

BLQ Balance quality code

G2.5

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

COMPC Company code

SO - SECO Tools

CZCWS Connection size code

0160

DCINTF Interference cutting diameter

27 mm

DCONWS Diameter

16 mm

DCP Data chip provision

1 - With data chip

Delivery state valid from

3/14/2020

DIN

HSK10000185

FamilyProducts

E9306540316160M2-2.8

HAND Cutting direction

N - Neutral

ID Technical product number

03099329

Interface codes

J6 / J61

ISO

HSK01C1000$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

131 mm

LF Functional length

121 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

0 Metric

LOC-01 CZCWS Connection size code

0160

LOC-01 DCONWS Diameter

16 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL01600105

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

HSK Hollow taper shank

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

1000

LOC-03 ISO

HSK01C1000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK10000185

LPR Protruding length

160 mm

LSCX Clamping length maximum

39 mm

Name Identifying order number

E9306540316160M2-2.8

OAL Overall length

210 mm

TA Taper angle

4.5 Degree

THSZWS Connection thread nominal size workpiece side

M10x1

WT Weight of item

0 kg
